PiperOther aircraft · Fixed-wing · United States
PA-28R-300 Pillán
- Seats
- 4 4
- Power
- 150 hp112 kW
- Cruise
- 108 kt200 km/h
About the PA-28R-300 Pillán

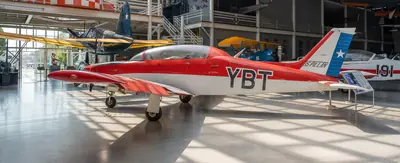

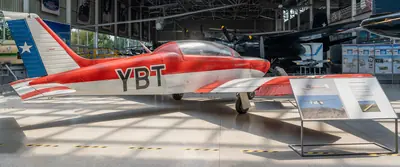

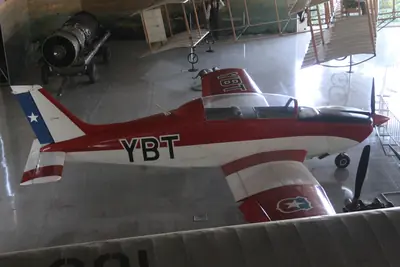

The Piper PA-28R-300 Pillán is a single-engine, fixed-wing military trainer designed for student and instructor pilots sitting in a tandem arrangement. Originating in the United States, it was developed to replace aging fleets and was subsequently assembled in Chile and Spain to serve various armed forces.
Piper Aircraft engineered the prototype using a modified fuselage with wings stressed for aerobatics, with initial flights taking place in the early nineteen-eighties. Following initial testing and prototype deliveries, manufacturing shifted to an international facility where a substantial number of airframes were produced. Variants include primary and instrument trainers, single-seat aerobatic models, and turboprop-powered versions.
The PA-28R-300 Pillán is a variant of the Piper PA-28. Other variants: PA-28-235, PA-28R-200 Cherokee Arrow.
PA-28R-300 Pillán running costs
$193 an hour| Low | Typical | High | |
|---|---|---|---|
| Fuel | $5,134 | $6,642 | $7,706 |
| Oil | $120 | $150 | $195 |
| Engine overhaul reserve | $2,167 | $2,667 | $4,833 |
| Annual inspection and maintenance | $2,500 | $3,500 | $4,500 |
| Hangar | $3,000 | $6,300 | $9,600 |
| Total | $12,921 | $19,259 | $26,834 |
| Per hour | $129 | $193 | $268 |
Engine
- Model
- Lycoming O-320-E2A
- Power
- 150 hp
- Overhaul
- 2,000 h / 12 yr
- Fuel burn
- 6.8 – 8.6 gal/h
- Fuel price
- $8.20 /US gal
