Aircraft / Piper / PA-28 / PA-28R-200 Cherokee Arrow
Piper Certified · Fixed-wing · United States

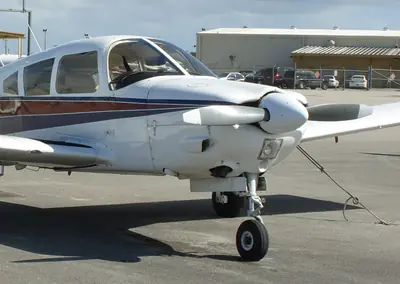

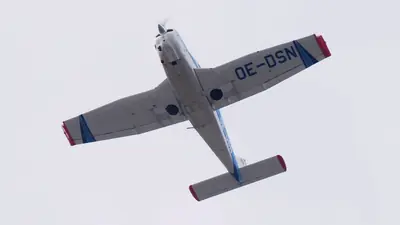

PA-28R-200 Cherokee Arrow
Seats 4 4
Power 150 hp 112 kW
Cruise 108 kt 200 km/h
US register 1,211 aircraft 1,211 aircraft

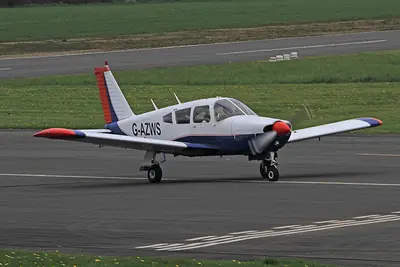

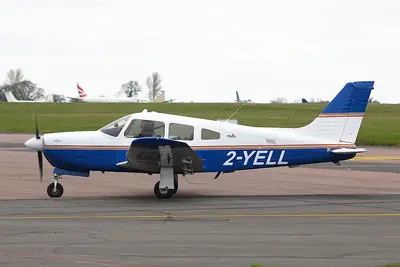

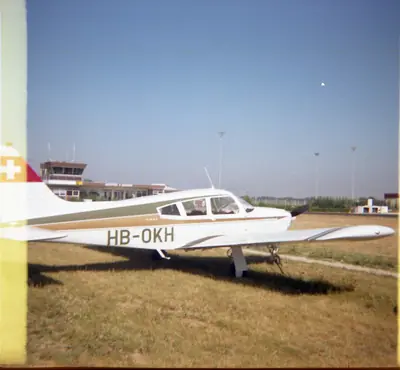

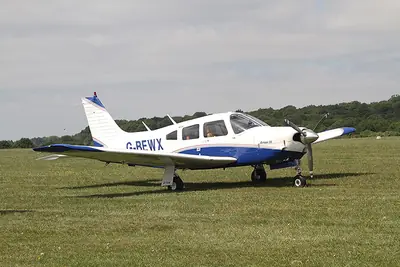

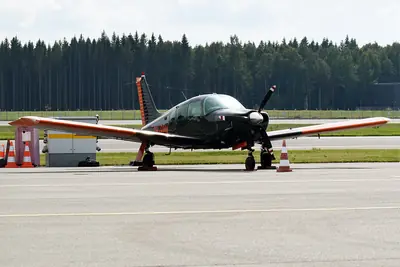

Photo: cvtperson · CC BY-SA 2.0 Photo: Anna Zvereva · CC BY-SA 2.0 Photo: Joost J. Bakker IJmuiden · CC BY 4.0 Photo: cvtperson · BY-SA 2.0 Photo: I am the author. · CC BY-SA 4.0 Photo: cvtperson · BY-SA 2.0 Photo: u278 · CC0 1.0 Photo: Mike Burdett · CC BY-SA 2.0
About the PA-28R-200 Cherokee Arrow
The Piper PA-28R-200 Cherokee Arrow is a type-certificated, fixed-wing civil utility aircraft featuring a single engine and a four-seat layout. It serves as an unpressurized light aircraft used for personal travel, air taxi services, and flight instruction.
Introduced following the broader success of the Cherokee family, this variant is equipped with a retractable undercarriage and a constant-speed propeller driven by a fuel-injected engine. Over decades of manufacturing, the lineage has evolved through numerous iterations incorporating various engine powers, semi-tapered wing designs, and updated avionics to remain a cornerstone of flight school fleets and private ownership.
Engines fitted 1,187 aircraft
Engine Power Share of fleet Aircraft
Lycoming IO-360
180 hp
1,163
Lycoming O-360
180 hp
16
Continental IO-360
300 hp
8
This page covers the Piper PA-28R-180, PA-28R-180 (Arrow), PA-28R-200 (Arrow II), PA-28R-200 (Arrow), PA-28R-201, PA-28R-201 (Arrow III), PA-28R-201 Arrow 3, PA-28R-201 Cherokee Arrow 3: the same aircraft under other designations.
Specifications 1964 model PA-28-140 Cherokee 140 · Lycoming O-320-E2A
US Metric
Dimensions
Length 23 ft 0 in 7.01 m 7.01 m 23 ft 0 in
Wingspan 30 ft 0 in 9.14 m 9.14 m 30 ft 0 in
Wing area 160 sq ft 14.9 m² 14.9 m² 160 sq ft Weights
Empty weight 1,201 lb 545 kg 545 kg 1,201 lb
Max take-off weight 2,150 lb 975 kg 975 kg 2,150 lb Performance
Cruise speed 108 kt 200 km/h 200 km/h 108 kt
Max speed 123 kt 228 km/h 228 km/h 123 kt
Stall speed 47 kt 87 km/h 87 km/h 47 kt
Range 465 nm 861 km 861 km 465 nm
Service ceiling 14,300 ft 4,359 m 4,359 m 14,300 ft
Rate of climb 660 ft/min 3.4 m/s 3.4 m/s 660 ft/min Powerplant
Engine Lycoming O-320-E2A
Engine power 150 hp 112 kW 112 kW 150 hp
ICAO type designator P28R
On the US register 1,211
Registered in Spain, Brazil, New Zealand, Australia, France, United States, Switzerland, Germany, Canada
1995 · 10,450 h USD
Low $107,000
Typical $127,000
High $157,000
By year built · United States · USD
Built Hours Low Typical High 1965 4,800 $96,000 $114,000 $141,000 1970 5,600 $97,000 $116,000 $143,000 1975 5,120 $105,000 $125,000 $154,000 1980 5,120 $110,000 $132,000 $162,000 1995 10,450 $107,000 $127,000 $157,000 2000 10,450 $112,000 $134,000 $165,000 2005 11,200 $116,000 $139,000 $171,000 2010 4,560 $156,000 $186,000 $230,000
By year built · United Kingdom · GBP
Built Hours Low Typical High 1968 3,580 £82,000 £108,000 £141,000 1969 3,580 £83,000 £109,000 £142,000 1970 3,580 £83,000 £110,000 £143,000 1971 3,340 £86,000 £113,000 £148,000 1972 3,340 £87,000 £115,000 £149,000 1973 3,340 £88,000 £116,000 £151,000 1974 3,340 £89,000 £117,000 £152,000 1975 3,810 £86,000 £114,000 £149,000 1976 4,280 £85,000 £112,000 £146,000 1977 3,930 £88,000 £116,000 £151,000 1978 3,930 £88,000 £117,000 £152,000 1979 3,930 £89,000 £118,000 £154,000
By year built · Euro countries · EUR
Built Hours Low Typical High 1973 3,760 €89,000 €118,000 €154,000 1974 3,760 €90,000 €120,000 €156,000 1975 5,120 €84,000 €111,000 €145,000 1976 6,440 €80,000 €106,000 €138,000 1977 6,440 €81,000 €107,000 €139,000 1978 6,440 €82,000 €108,000 €141,000
By year built · Elsewhere · USD
Built Hours Low Typical High 1967 5,100 $77,000 $104,000 $136,000 1968 4,710 $80,000 $108,000 $141,000 1969 4,710 $80,000 $109,000 $142,000 1970 5,270 $79,000 $107,000 $139,000 1971 4,470 $83,000 $113,000 $147,000 1972 4,000 $87,000 $117,000 $153,000 1973 3,500 $91,000 $123,000 $160,000 1974 3,500 $92,000 $124,000 $162,000 1975 5,450 $82,000 $111,000 $146,000 1976 7,220 $77,000 $104,000 $136,000 1977 7,220 $78,000 $105,000 $138,000 1978 7,220 $79,000 $107,000 $139,000 1979 7,220 $80,000 $108,000 $141,000
PA-28R-200 Cherokee Arrow running costs $248 an hour
A year
Low Typical High
Fuel $6,191 $7,954 $9,229 Oil $144 $180 $234 Engine overhaul reserve $2,167 $2,667 $4,833 Annual inspection and maintenance $2,500 $3,500 $4,500 Hangar $3,000 $6,300 $9,600 Insurance $1,425 $1,825 $2,225 Depreciation $1,180 $2,360 $3,540 Total $16,607 $24,786 $34,161 Per hour $166 $248 $342
Engine
Model Lycoming IO-360-C1C
Power 180 hp
Overhaul 2,000 h / 12 yr
Fuel burn 8.2 – 10.3 gal/h
Fuel price $8.20 /US gal
Value lost a year 1.9%
Piper 1964 Piper Cherokee PA28-235
R 450,000 ≈ $27,112
Piper 1975 Piper Arrow 200 r.
$35,000
Private seller
Piper 1973 Piper Cherokee PA28-235
R 595,000 ≈ $35,849
Piper 1964 Piper Cherokee PA28-235
R 750,000 ≈ $45,187
Piper 1968 Piper Arrow PA-28R-180
R 850,000 ≈ $51,212
Piper 1968 Piper Arrow
R 850,000 ≈ $51,212
Piper

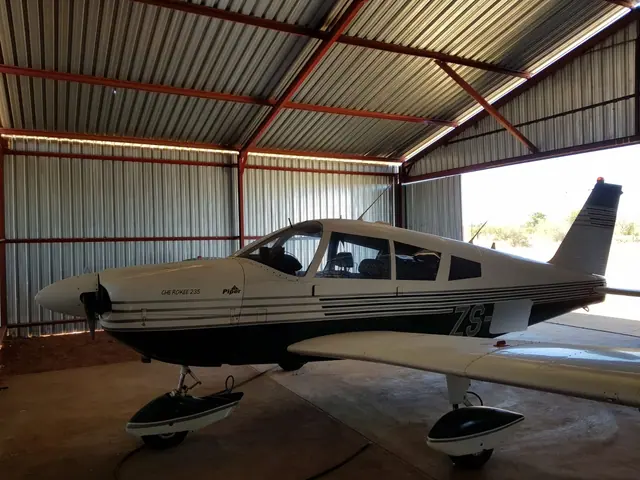

1964 Piper Cherokee PA28-235
R 450,000 ≈ $27,112
1964 · 3,600 h · South Africa
Piper

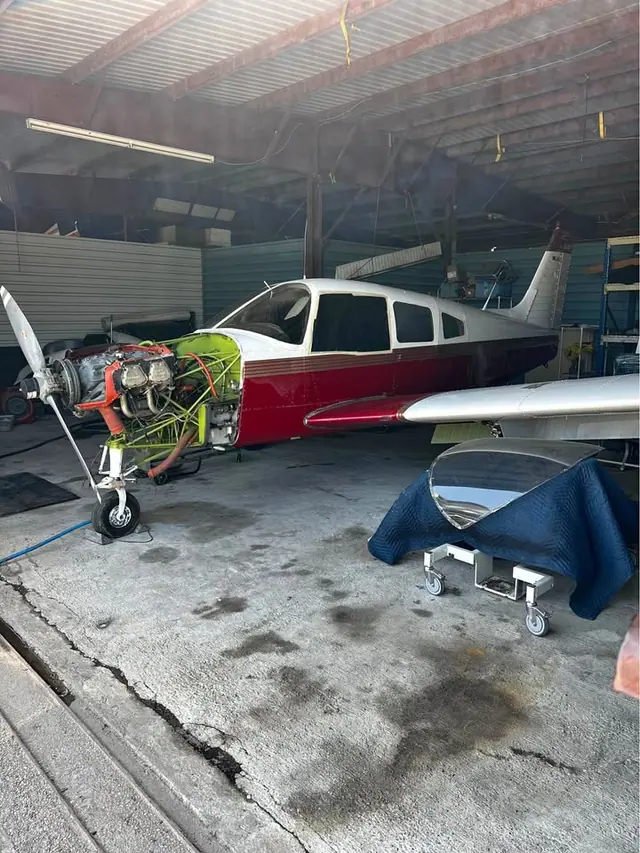

1975 Piper Arrow 200 r.
$35,000
1975 · United States
Private seller
Piper

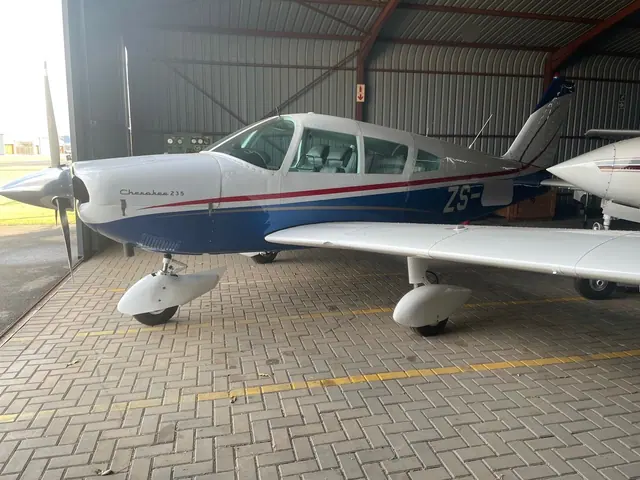

1973 Piper Cherokee PA28-235
R 595,000 ≈ $35,849
1973 · South Africa
Piper

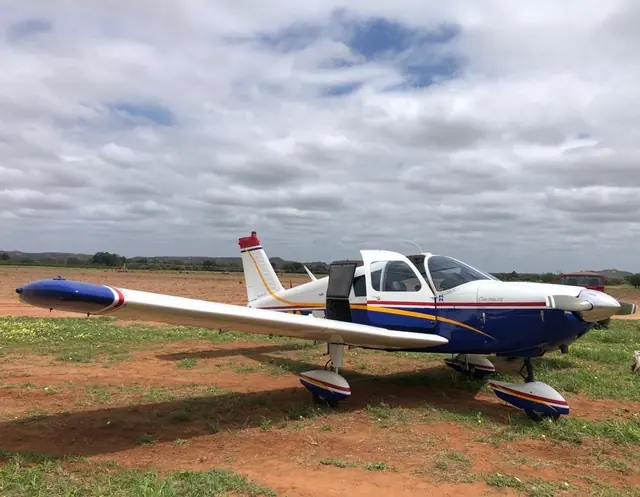

1964 Piper Cherokee PA28-235
R 750,000 ≈ $45,187
1964 · 5,382 h · South Africa
Piper

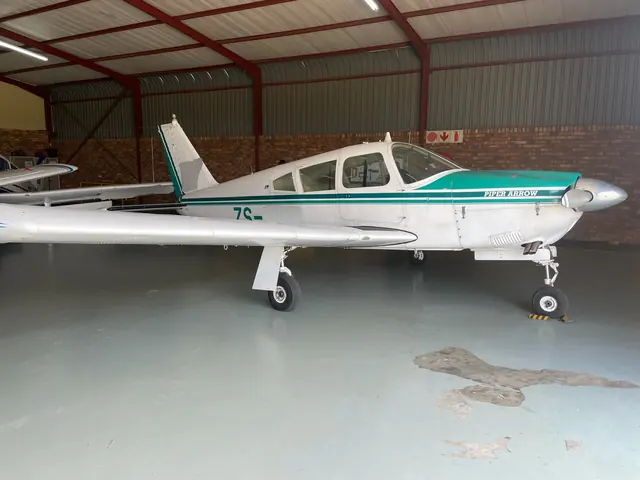

1968 Piper Arrow PA-28R-180
R 850,000 ≈ $51,212
1968 · 6,180 h · South Africa
Piper

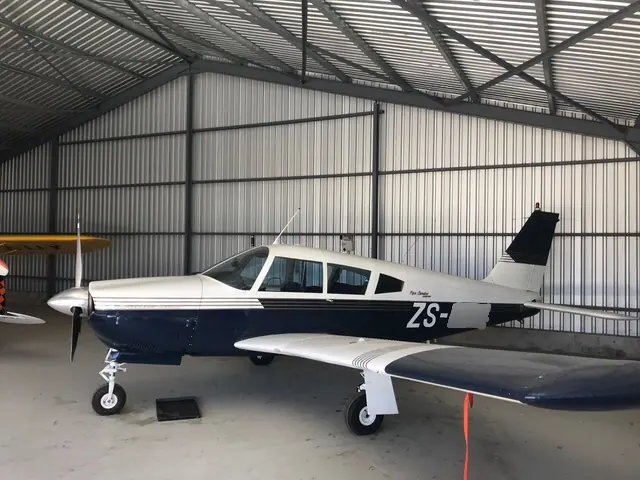

1968 Piper Arrow
