PLANEFILE

Glasair AviationExperimental & kit · Fixed-wing · United States

II

Seats: 2 2
Power: 180 hp134 kW
Cruise: 192 kt356 km/h
US register: 3 aircraft3 aircraft

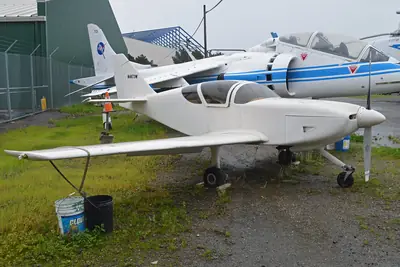

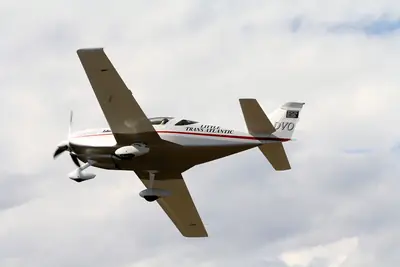

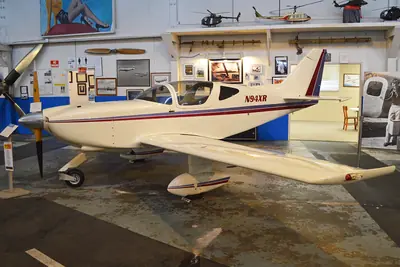

Glasair Aviation II — Photo: Asylumkid · CC BY-SA 2.0Photo: Asylumkid · CC BY-SA 2.0Photo: HawkeyeUK · CC BY-SA 2.0Photo: HawkeyeUK · CC BY-SA 2.0

Glasair Aviation II — Photo: Asylumkid · CC BY-SA 2.0Photo: Asylumkid · CC BY-SA 2.0Photo: HawkeyeUK · CC BY-SA 2.0Photo: HawkeyeUK · CC BY-SA 2.0

About the II

The Glasair Aviation Usa II is a homebuilt, fixed-wing aircraft configured as a sleek, retractable-gear two-seater powered by a single engine. It is well-suited for amateur builders and pilots desiring high-performance cruising capabilities.

Produced as a composite kit aircraft stemming from the designs of Tom Hamilton and Stoddard-Hamilton, the series has earned widespread respect among aviation hobbyists. Assembling the complete kit requires significant builder dedication, supported by active owner associations and community guidance networks.

Engines fitted

3 aircraft

Engine	Power	Share of fleet	Aircraft
Lycoming IO-360	200 hp		2
Lycoming IO-320	150 hp		1

Specifications

Glasair Super II RG · Lycoming O-360

Dimensions

Length: 20 ft 10 in 6.34 m6.34 m 20 ft 10 in
Wingspan: 23 ft 4 in 7.10 m7.10 m 23 ft 4 in
Wing area: 81 sq ft 7.5 m²7.5 m² 81 sq ft

Weights

Empty weight: 1,400 lb 635 kg635 kg 1,400 lb
Max take-off weight: 2,100 lb 953 kg953 kg 2,100 lb
Fuel capacity: 70.0 US gal 265 L265 L 70.0 US gal

Performance

Cruise speed: 192 kt 356 km/h356 km/h 192 kt
Max speed: 207 kt 383 km/h383 km/h 207 kt
Stall speed: 63 kt 117 km/h117 km/h 63 kt
Range: 1,520 nm 2,815 km2,815 km 1,520 nm
Rate of climb: 2,700 ft/min 13.7 m/s13.7 m/s 2,700 ft/min

Powerplant

Engine: Lycoming O-360
Engine power: 180 hp 134 kW134 kW 180 hp

Capacity

Seats: 2

ICAO type designator: ZZZZ
Manufacturer: Glasair Aviation
Country: United States
On the US register: 3
Registered in: Brazil, United States
Official website: glasairaviation.com

Improve this page

Add your photos Suggest a correction

II for sale now

All II for sale (1)

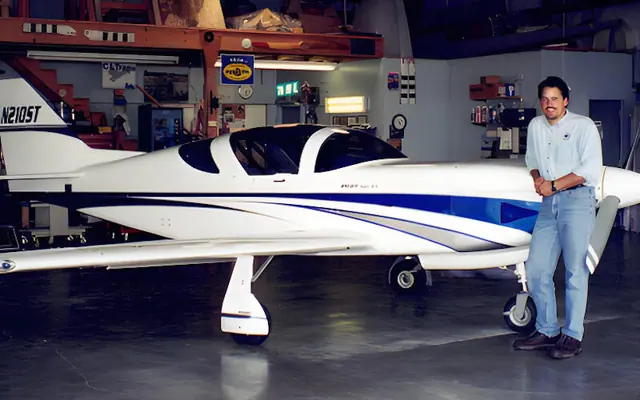

2001 Glasair II
