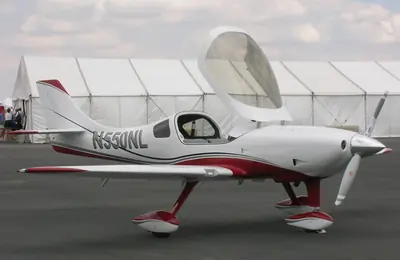

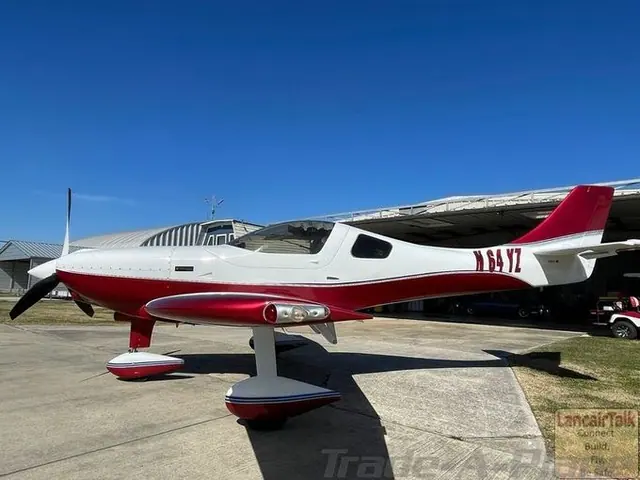

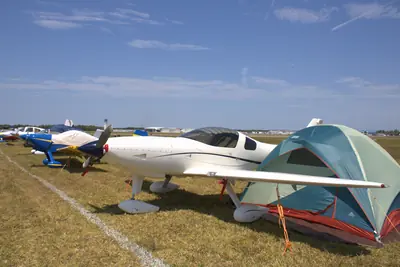

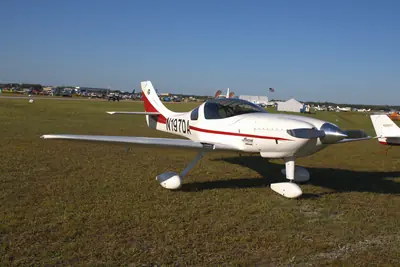

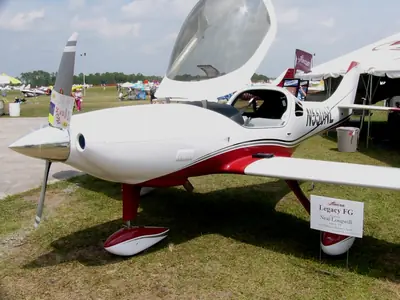

Legacy FG

Seats: 2 2
Power: 310 hp231 kW
Cruise: 240 kt444 km/h
US register: 8 aircraft8 aircraft

About the Legacy FG

The Lancair Intl LEGACY FG is an American fixed-wing, homebuilt aircraft designed to seat two occupants. This low-wing composite monoplane features a single engine in a tractor configuration and a side-by-side enclosed cockpit beneath a bubble canopy, making it well-suited for amateur builders and sport pilots seeking efficient personal transportation.

Originally conceived as an updated variant of an earlier model, this aircraft was offered in kit form. The airframe utilizes vacuum-formed composite sandwiches and specialized airfoil sections along its wing. Throughout its manufacturing lifespan, examples of the design secured multiple awards at major aviation gatherings. Production of the kits eventually ceased before the design rights changed hands for ongoing manufacture.

Engines fitted

5 aircraft

Engine	Power	Aircraft
Continental IO-550	300 hp	3
Continental IO-360	300 hp	1
Lycoming IO-390	210 hp	1

This page covers the Lancair LEGACY FG: the same aircraft under other designations.

Specifications

Legacy RG · Continental IO-550-N

Dimensions

Length: 22 ft 0 in 6.71 m6.71 m 22 ft 0 in
Wingspan: 25 ft 0 in 7.62 m7.62 m 25 ft 0 in
Wing area: 82 sq ft 7.7 m²7.7 m² 82 sq ft

Weights

Empty weight: 1,500 lb 680 kg680 kg 1,500 lb
Max take-off weight: 2,200 lb 998 kg998 kg 2,200 lb
Fuel capacity: 17.2 US gal 65 L65 L 17.2 US gal

Performance

Cruise speed: 240 kt 444 km/h444 km/h 240 kt
Max speed: 256 kt 475 km/h475 km/h 256 kt
Stall speed: 56 kt 105 km/h105 km/h 56 kt
Range: 999 nm 1,851 km1,851 km 999 nm
Service ceiling: 18,000 ft 5,486 m5,486 m 18,000 ft
Rate of climb: 2,000 ft/min 10.2 m/s10.2 m/s 2,000 ft/min

Powerplant

Engine: Continental IO-550-N
Engine power: 310 hp 231 kW231 kW 310 hp

Capacity

Seats: 2

ICAO type designator: ZZZZ
Manufacturer: Lancair
Country: United States
On the US register: 8
Registered in: Brazil, United States, Canada

Improve this page

Add your photos Suggest a correction

Legacy FG running costs

$288 an hour

Hours a year Aircraft value (USD)

A year
	Low	Typical	High
Fuel	$10,268	$13,202	$15,411
Oil	$240	$300	$390
Engine overhaul reserve	$3,333	$3,958	$5,192
Propeller overhaul reserve	$917	$1,083	$1,250
Annual inspection and maintenance	$3,000	$4,000	$5,000
Hangar	$3,000	$6,300	$9,600

Total	$20,758	$28,843	$36,843
Per hour	$208	$288	$368
