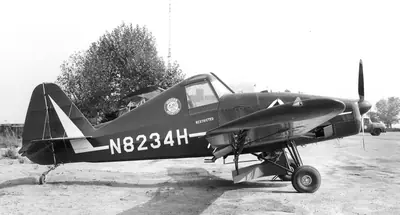

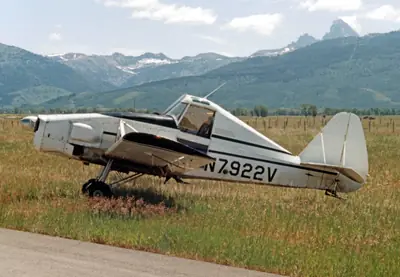

CallairCertified · Fixed-wing · United States
A-9
- Seats
- 1 1
- Power
- 300 hp224 kW
- Cruise
- 87 kt161 km/h
- US register
- 12 aircraft12 aircraft
About the A-9
The Callair A-9 is a single-engine agricultural aircraft featuring a braced low-wing layout and mixed construction. It suits specialized crop-dusting and utility roles, accommodating a single pilot behind a chemical hopper.
Derived from previous light utility designs by the Call Aircraft Company, the type entered production following corporate acquisitions. Manufacture of the aircraft subsequently transitioned through several corporate owners and international joint ventures before ending production.
Engines fitted
12 aircraft| Engine | Power | Share of fleet | Aircraft |
|---|---|---|---|
| Lycoming O-540 | 250 hp | 11 | |
| Lycoming IO-540 | 300 hp | 1 |
This page covers the Callair A-9A: the same aircraft under other designations.
A-9 running costs
$265 an hour| Low | Typical | High | |
|---|---|---|---|
| Fuel | $8,550 | $10,908 | $12,816 |
| Oil | $200 | $250 | $325 |
| Engine overhaul reserve | $3,333 | $3,958 | $5,192 |
| Propeller overhaul reserve | $917 | $1,083 | $1,250 |
| Annual inspection and maintenance | $3,000 | $4,000 | $5,000 |
| Hangar | $3,000 | $6,300 | $9,600 |
| Total | $19,000 | $26,499 | $34,183 |
| Per hour | $190 | $265 | $342 |
Engine
- Model
- Lycoming O-540-B2B5
- Power
- 250 hp
- Overhaul
- 2,000 h / 12 yr
- Fuel burn
- 11.4 – 14.4 gal/h
- Fuel price
- $8.14 /US gal
