PielOther aircraft · Fixed-wing · France
CP-605 Super Diamant
- Seats
- 3 3
- Power
- 150 hp112 kW
- Cruise
- 124 kt230 km/h
About the CP-605 Super Diamant

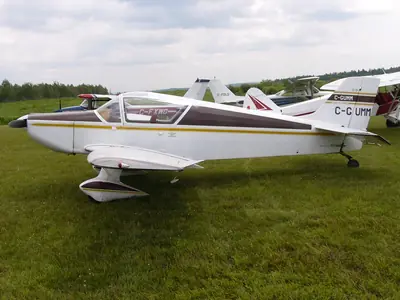

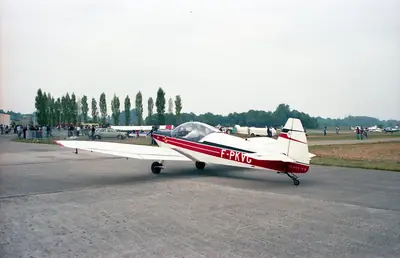

The Piel CP-605 Super Diamant is a French single-engine, low-wing cantilever monoplane created for homebuilding enthusiasts. Serving as a light aircraft, it provides a conventional enclosed cabin layout suited for private pilots and small families looking for a versatile tourer.
Conceived as a larger iteration of the earlier Emeraude, this aircraft incorporates a modified fuselage offering extra rear cabin space and a greater wingspan to support an increased maximum take-off weight. Although the original design secured official type certification for commercial manufacturing, it was exclusively realized through amateur home construction. Decades after the introduction of the initial variants, the line evolved into the Super Diamant series, which welcomed revised tail configurations and compatibility with higher-output engines.
CP-605 Super Diamant running costs
$193 an hour| Low | Typical | High | |
|---|---|---|---|
| Fuel | $5,134 | $6,642 | $7,706 |
| Oil | $120 | $150 | $195 |
| Engine overhaul reserve | $2,167 | $2,667 | $4,833 |
| Annual inspection and maintenance | $2,500 | $3,500 | $4,500 |
| Hangar | $3,000 | $6,300 | $9,600 |
| Total | $12,921 | $19,259 | $26,834 |
| Per hour | $129 | $193 | $268 |
Engine
- Model
- Lycoming O-320_E2A
- Power
- 150 hp
- Overhaul
- 2,000 h / 12 yr
- Fuel burn
- 6.8 – 8.6 gal/h
- Fuel price
- $8.20 /US gal
