How much does a used Ryan PT-22 cost?

PLANEFILE

RyanCertified · Fixed-wing · United States

PT-22

Seats: 2 2
Power: 161 hp120 kW
Cruise: 86 kt160 km/h
US register: 11 aircraft11 aircraft

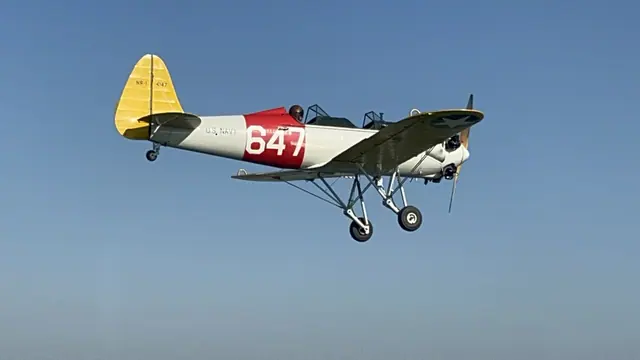

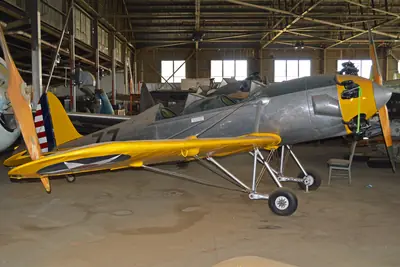

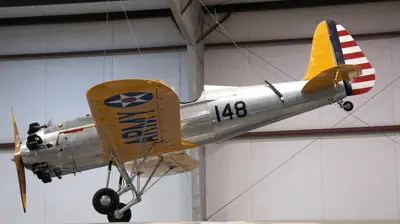

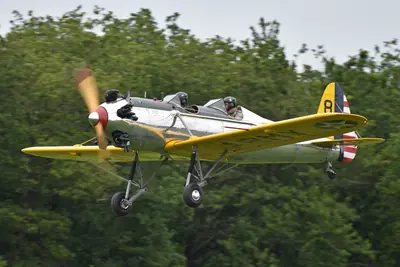

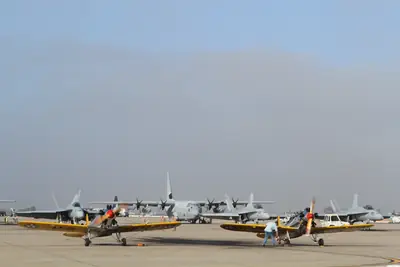

About the PT-22

The Ryan PT-22 is a fixed-wing military trainer aircraft featuring a single engine and a two-seat arrangement for a student and instructor. It is a purpose-built monoplane layout designed for primary flight training.

Developed from a civilian series to meet wartime training demands, the aircraft featured a stressed metal skin, wood-and-fabric wings, and distinctive knuckle-type main landing gear. Production versions omitted wheel fairings to ease maintenance. Following widespread use by military and civil training schools, the type was retired from active service and remains sought after by vintage aircraft collectors.

Engines fitted

7 aircraft

Engine	Power	Share of fleet	Aircraft
Kinner R5	160 hp		7

PT-22 variants

Designation	Seats	Engine power	Max take-off weight	Cruise speed	Range
PT-22 This page	22	161 hp120 kW	1,861 lb844 kg	86 kt160 km/h	200 nm371 km
PT-22A	22	161 hp120 kW	1,861 lb844 kg	86 kt160 km/h	200 nm371 km

Specifications

PT-22 · Kinner R-540

Dimensions

Length: 22 ft 8 in 6.90 m6.90 m 22 ft 8 in
Wingspan: 30 ft 1 in 9.17 m9.17 m 30 ft 1 in
Wing area: 135 sq ft 12.5 m²12.5 m² 135 sq ft

Weights

Empty weight: 1,307 lb 593 kg593 kg 1,307 lb
Max take-off weight: 1,861 lb 844 kg844 kg 1,861 lb

Performance

Cruise speed: 86 kt 160 km/h160 km/h 86 kt
Max speed: 108 kt 200 km/h200 km/h 108 kt
Never-exceed speed (Vne): 165 kt 305 km/h305 km/h 165 kt
Stall speed: 54 kt 100 km/h100 km/h 54 kt
Range: 200 nm 371 km371 km 200 nm
Service ceiling: 15,400 ft 4,700 m4,700 m 15,400 ft
Rate of climb: 710 ft/min 3.6 m/s3.6 m/s 710 ft/min

Powerplant

Engine: Kinner R-540
Engine power: 161 hp 120 kW120 kW 161 hp

Capacity

Seats: 2

ICAO type designator: PT22
Manufacturer: Ryan
Country: United States
On the US register: 11
Registered in: United States

Improve this page

Add your photos Suggest a correction

PT-22 prices

Asking prices of those for sale now, US dollars

Asking prices for the 7 Ryan PT-22 aircraft for sale with a price run from $80,000 to $139,912, with a median of $121,000. Half ask between $114,000 and $123,000.
