PA-60-602P

Seats: 6 6
Power: 350 hp261 kW
Cruise: 211 kt390 km/h
US register: 30 aircraft30 aircraft

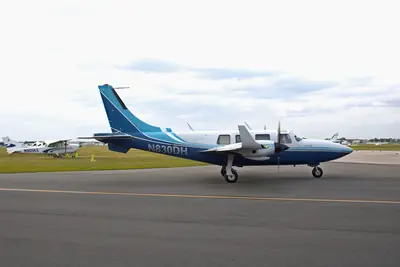

About the PA-60-602P

The Piper PA-60-602P is an American fixed-wing aircraft featuring twin piston engines and accommodating up to six seats. Built as a type-certificated utility transport, it suits operators looking for a high-performance twin-engine layout with pressurized cabin capabilities for personal or business travel.

Originally conceived by Ted R. Smith, the design underwent several evolutionary steps and company changes before acquisition by the Piper Aircraft Corporation. Over its production history, various models introduced significant refinements such as turbocharging upgrades and increased wingspans to boost climb performance and high-altitude convenience, while retaining the basic designation framework established by its original creator.

Engines fitted

22 aircraft

Engine	Power	Share of fleet	Aircraft
Lycoming IO-540	300 hp		22

Specifications

700P · 2 × Avco Lycoming TIO-540-U2A flat six counter-rotating piston

Dimensions

Length: 34 ft 10 in 10.61 m10.61 m 34 ft 10 in
Wingspan: 36 ft 8 in 11.18 m11.18 m 36 ft 8 in
Wing area: 178 sq ft 16.6 m²16.6 m² 178 sq ft

Weights

Empty weight: 4,275 lb 1,939 kg1,939 kg 4,275 lb
Max take-off weight: 6,314 lb 2,864 kg2,864 kg 6,314 lb

Performance

Cruise speed: 211 kt 390 km/h390 km/h 211 kt
Max speed: 266 kt 492 km/h492 km/h 266 kt
Stall speed: N/A
Range: 890 nm 1,648 km1,648 km 890 nm
Service ceiling: 25,000 ft 7,620 m7,620 m 25,000 ft
Rate of climb: 1,850 ft/min 9.4 m/s9.4 m/s 1,850 ft/min

Powerplant

Engine: 2 × Avco Lycoming TIO-540-U2A flat six counter-rotating piston
Engine power: 350 hp 261 kW261 kW 350 hp

Capacity

Seats: 6

ICAO type designator: AEST
Manufacturer: Piper
Country: United States
On the US register: 30
Registered in: Australia, United States, Canada
Official website: piper.com

Improve this page

Add your photos Suggest a correction

PA-60-602P running costs

$504 an hour

Hours a year Aircraft value (USD)

A year
	Low	Typical	High
Fuel	$20,612	$26,404	$30,912
Oil	$480	$600	$780
Engine overhaul reserve	$6,667	$7,917	$10,384
Propeller overhaul reserve	$1,833	$2,167	$2,500
Annual inspection and maintenance	$5,000	$7,000	$9,000
Hangar	$3,000	$6,300	$9,600

Total	$37,592	$50,388	$63,176
Per hour	$376	$504	$632
