PLANEFILE

NoorduynCertified · Fixed-wing · Canada

UC-64A

Seats: 11 11
Power: 600 hp447 kW
Cruise: 113 kt209 km/h
US register: 5 aircraft5 aircraft

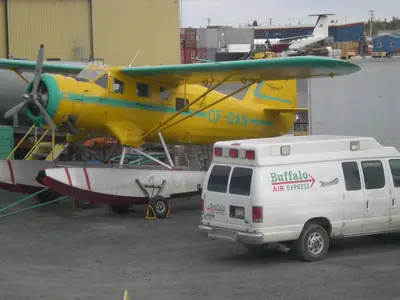

Noorduyn UC-64A — Photo: CambridgeBayWeather · CC BY-SA 3.0Photo: CambridgeBayWeather · CC BY-SA 3.0

Noorduyn UC-64A — Photo: CambridgeBayWeather · CC BY-SA 3.0Photo: CambridgeBayWeather · CC BY-SA 3.0

About the UC-64A

The Noorduyn UC-64A is a single-engine fixed-wing aircraft of the type-certificated category, accommodating up to nine individuals. It serves utility transport and cargo-dropping roles, suiting operators requiring rugged performance in remote environments.

Widely recognized for its military service and utilitarian capability, an example of this model famously disappeared during an operational flight over the English Channel while transporting a prominent big band leader. The type saw extensive use ranging from forest fire support to bush operations across northern regions, earning a reputation for durability under demanding conditions.

Engines fitted

4 aircraft

Engine	Power	Share of fleet	Aircraft
Pratt & Whitney R-1340	600 hp		4

Specifications

Norseman Mark V · Pratt & Whitney R-1340-AN1

Dimensions

Length: 32 ft 0 in 9.75 m9.75 m 32 ft 0 in
Wingspan: 51 ft 0 in 15.54 m15.54 m 51 ft 0 in
Wing area: 325 sq ft 30.2 m²30.2 m² 325 sq ft

Weights

Empty weight: 4,240 lb 1,923 kg1,923 kg 4,240 lb
Max take-off weight: 7,400 lb 3,357 kg3,357 kg 7,400 lb
Fuel capacity: 0.5 US gal 2 L2 L 0.5 US gal

Performance

Cruise speed: 113 kt 209 km/h209 km/h 113 kt
Max speed: 135 kt 249 km/h249 km/h 135 kt
Stall speed: 59 kt 109 km/h109 km/h 59 kt
Range: 810 nm 1,500 km1,500 km 810 nm
Service ceiling: 17,000 ft 5,182 m5,182 m 17,000 ft

Powerplant

Engine: Pratt & Whitney R-1340-AN1
Engine power: 600 hp 447 kW447 kW 600 hp

Capacity

Seats: 11

Manufacturer: Noorduyn
Country: Canada
On the US register: 5
Registered in: United States, Canada
