How much does a used Mooney M-10 Cadet cost?

Name: Mooney M-10 Cadet
Brand: Mooney

PLANEFILE

MooneyCertified · Fixed-wing · United States

M-10 Cadet

Seats: 2 2
Power: 90 hp67 kW
Cruise: 81 kt150 km/h
US register: 39 aircraft39 aircraft

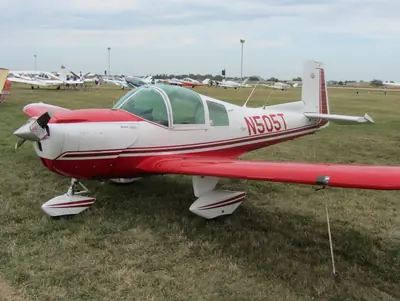

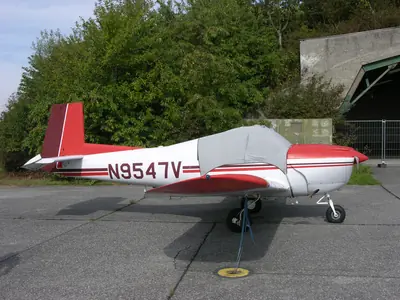

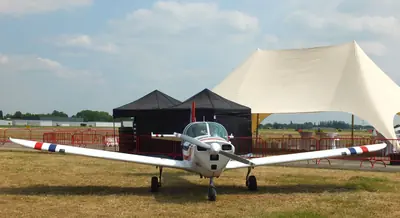

About the M-10 Cadet

The Mooney M10 is a light, fixed-wing aircraft built in the United States. Designed to suit student pilots and general aviation flying, it is a single-engine monoplane configured with seating for two occupants.

Originally tracing its lineage from earlier designs acquired by its manufacturer, this model was developed to serve as a general-purpose trainer. A key structural modification from its predecessor involved replacing the dual vertical tail with a conventional spinnable empennage, allowing student pilots to train without certificate restrictions against spinning.

Engines fitted

39 aircraft

Engine	Power	Share of fleet	Aircraft
Continental C90	95 hp		38
Lycoming O-290	140 hp		1

Specifications

Continental C-90-16F

Dimensions

Length: 20 ft 0 in 6.10 m6.10 m 20 ft 0 in
Wingspan: 30 ft 0 in 9.14 m9.14 m 30 ft 0 in
Wing area: 143 sq ft 13.2 m²13.2 m² 143 sq ft

Weights

Empty weight: 950 lb 431 kg431 kg 950 lb
Max take-off weight: 1,450 lb 658 kg658 kg 1,450 lb

Performance

Cruise speed: 81 kt 150 km/h150 km/h 81 kt
Max speed: 103 kt 190 km/h190 km/h 103 kt
Never-exceed speed (Vne): 125 kt 232 km/h232 km/h 125 kt
Stall speed: 40 kt 74 km/h74 km/h 40 kt
Range: 483 nm 895 km895 km 483 nm
Service ceiling: 15,500 ft 4,724 m4,724 m 15,500 ft
Rate of climb: 830 ft/min 4.2 m/s4.2 m/s 830 ft/min

Powerplant

Engine: Continental C-90-16F
Engine power: 90 hp 67 kW67 kW 90 hp

Capacity

Seats: 2

ICAO type designator: M10
Manufacturer: Mooney
Country: United States
On the US register: 39
Registered in: United States, Canada
Official website: mooney.com

Improve this page

Add your photos Suggest a correction

M-10 Cadet prices

Asking prices of those for sale now, US dollars

Asking prices for the 2 Mooney M-10 Cadet aircraft for sale with a price run from $32,900 to $39,500, with a median of $36,200.

M-10 Cadet running costs

$176 an hour

Hours a year Aircraft value (USD)

A year
	Low	Typical	High
Fuel	$3,246	$4,182	$4,928
Oil	$76	$95	$123
Engine overhaul reserve	$2,167	$2,667	$4,833
Annual inspection and maintenance	$2,500	$3,500	$4,500
Hangar	$3,000	$6,300	$9,600
Insurance	$626	$848	$1,071

Total	$11,615	$17,592	$25,055
Per hour	$116	$176	$251
