CC19-180

Seats: 2 2
Power: 180 hp134 kW
Cruise: 126 kt233 km/h
US register: 25 aircraft25 aircraft

About the CC19-180

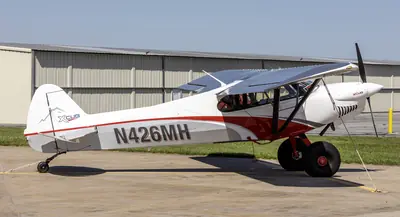

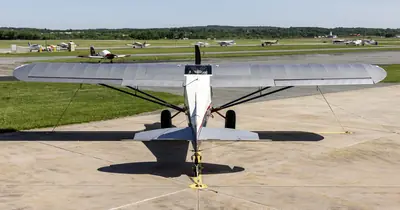

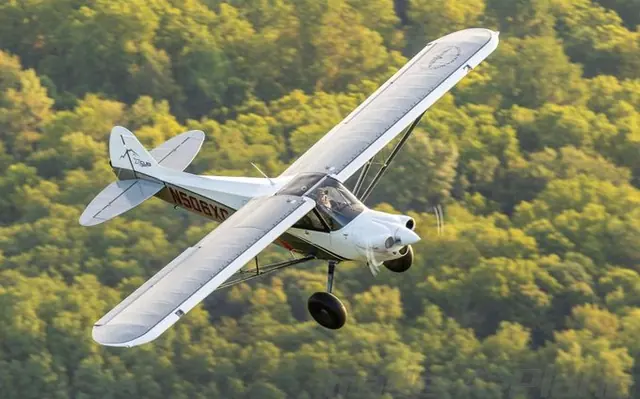

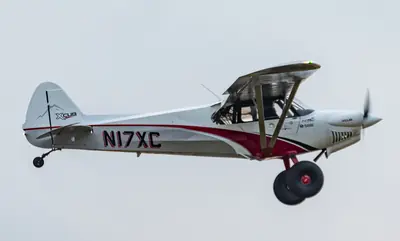

The Cub Crafters CC19-180 is an American light aircraft configured as a two-seat, high-wing monoplane featuring enclosed tandem seating and conventional tailwheel landing gear. Designed for backcountry flying and general utility, it suits pilots seeking operational flexibility and range.

Developed in secrecy over several years as an evolution of earlier carbon-fiber structural designs tracing back to post-war utility aircraft, the type achieved formal type certification across multiple international aviation authorities. Available ready-to-fly, the aircraft incorporates advanced composite components and can be fitted with floats or alternatively configured with tricycle landing gear under a separate model designation.

Engines fitted

25 aircraft

Engine	Power	Share of fleet	Aircraft
Lycoming O-360	180 hp		25

Specifications

XCub · Lycoming O-360-C1

Dimensions

Length: 23 ft 0 in 7.01 m7.01 m 23 ft 0 in
Wingspan: 34 ft 0 in 10.36 m10.36 m 34 ft 0 in
Wing area: 175 sq ft 16.2 m²16.2 m² 175 sq ft

Weights

Empty weight: 1,216 lb 552 kg552 kg 1,216 lb
Max take-off weight: 2,300 lb 1,043 kg1,043 kg 2,300 lb

Performance

Cruise speed: 126 kt 233 km/h233 km/h 126 kt
Max speed: 133 kt 246 km/h246 km/h 133 kt
Never-exceed speed (Vne): 145 kt 269 km/h269 km/h 145 kt
Stall speed: 34 kt 63 km/h63 km/h 34 kt
Range: 695 nm 1,287 km1,287 km 695 nm
Service ceiling: 14,000 ft 4,267 m4,267 m 14,000 ft
Rate of climb: 1,500 ft/min 7.6 m/s7.6 m/s 1,500 ft/min

Powerplant

Engine: Lycoming O-360-C1
Engine power: 180 hp 134 kW134 kW 180 hp

Capacity

Seats: 2

ICAO type designator: CC19
Type certificate: EASA.IM.A.638
Manufacturer: Cub Crafters
Country: United States
On the US register: 25
Registered in: United Kingdom, Australia, United States, Canada
Official website: cubcrafters.com

Improve this page

Add your photos Suggest a correction

CC19-180 running costs

$239 an hour

Hours a year Aircraft value (USD)

A year
	Low	Typical	High
Fuel	$6,191	$7,954	$9,229
Oil	$144	$180	$234
Engine overhaul reserve	$2,167	$2,667	$4,833
Annual inspection and maintenance	$2,500	$3,500	$4,500
Hangar	$3,000	$6,300	$9,600
Insurance	$2,595	$3,255	$3,915

Total	$16,597	$23,856	$32,311
Per hour	$166	$239	$323
