Zenith AircraftExperimental & kit · Fixed-wing · United States

750

Seats: 2 2
Power: 80 hp60 kW
Cruise: 70 kt129 km/h
US register: 2 aircraft2 aircraft

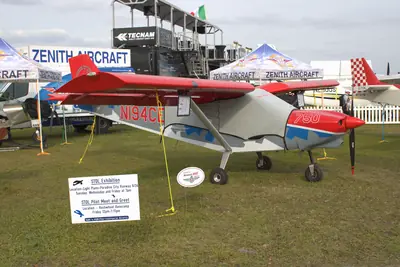

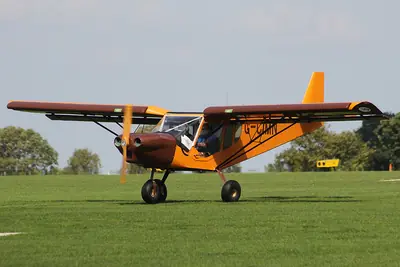

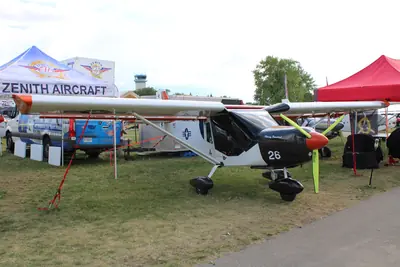

Zenith Aircraft 750 — Photo: TDelCoro · CC BY-SA 4.0Photo: ZLEA · CC BY-SA 4.0Photo: ZLEA · CC BY-SA 4.0Photo: Mike Burdett · CC BY-SA 2.0

Zenith Aircraft 750 — Photo: TDelCoro · CC BY-SA 4.0Photo: ZLEA · CC BY-SA 4.0Photo: ZLEA · CC BY-SA 4.0Photo: Mike Burdett · CC BY-SA 2.0

About the 750

The Zenith Aircraft 750 is a fixed-wing, amateur-built kit aircraft designed by Chris Heintz and produced in Missouri. Configured as a high-wing, two-seat monoplane with tricycle landing gear and large bubble doors, it is aimed at recreational hobbyists and sport pilots seeking short takeoff and landing performance.

Created as a heavy-lift evolution in the manufacturer's product line, the aircraft features extended wings and structural updates to carry increased loads. Builders can choose from a range of compatible engines, and the design accommodates optional floats for water operations as well as cabin arrangements for additional occupants.

Engines fitted

1 aircraft

Engine	Power	Share of fleet	Aircraft
Viking 110	110 hp		1

This page covers the Zenith Aircraft 750 CRUZER, 750 STOL, 750SD: the same aircraft under other designations.

Specifications

CH 701 · Rotax 912

Dimensions

Length: 20 ft 0 in 6.10 m6.10 m 20 ft 0 in
Wingspan: 27 ft 0 in 8.23 m8.23 m 27 ft 0 in
Wing area: 122 sq ft 11.3 m²11.3 m² 122 sq ft

Weights

Empty weight: 580 lb 263 kg263 kg 580 lb
Max take-off weight: 1,100 lb 499 kg499 kg 1,100 lb
Fuel capacity: 5.3 US gal 20 L20 L 5.3 US gal

Performance

Cruise speed: 70 kt 129 km/h129 km/h 70 kt
Max speed: 74 kt 137 km/h137 km/h 74 kt
Never-exceed speed (Vne): 96 kt 177 km/h177 km/h 96 kt
Stall speed: 26 kt 48 km/h48 km/h 26 kt
Range: 323 nm 599 km599 km 323 nm
Service ceiling: 12,000 ft 3,658 m3,658 m 12,000 ft
Rate of climb: 1,000 ft/min 5.1 m/s5.1 m/s 1,000 ft/min

Powerplant

Engine: Rotax 912
Engine power: 80 hp 60 kW60 kW 80 hp

Capacity

Seats: 2

Manufacturer: Zenith Aircraft
Country: United States
On the US register: 2
Registered in: Australia, United States, Canada
Official website: zenithair.com

Improve this page

Add your photos Suggest a correction

750 prices

Asking prices of those for sale now, US dollars

Asking prices for the 3 Zenith Aircraft 750 aircraft for sale with a price run from $62,000 to $95,000, with a median of $69,000.

750 for sale now

All 750 for sale (3)

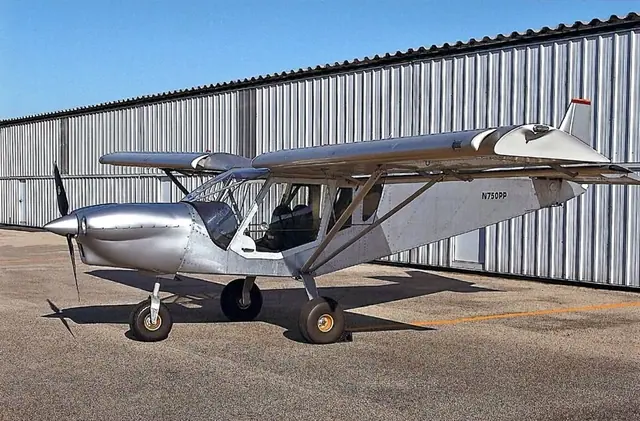

2022 Zenith 750

Zenith Aircraft 2022 Zenith 750 $62,000 2022 · United States Private seller

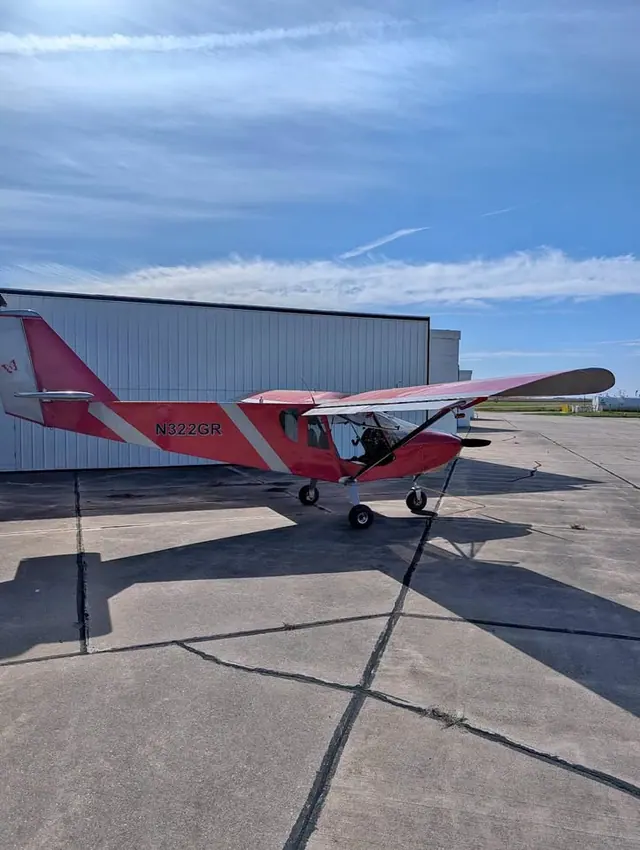

2023 Zenith 750 cruzer

Zenith Aircraft 2023 Zenith 750 cruzer $69,000 2023 · 246 h · United States Private seller

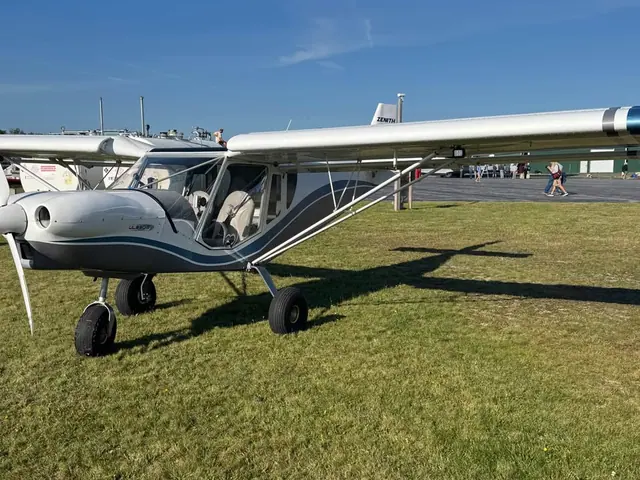

2021 Zenith 750stol

Zenith Aircraft 2021 Zenith 750stol $95,000 2021 · United States Private seller

Similar aircraft

Zenith Aircraft CH 701

Zenith Aircraft CH 701 The Zenith Aircraft CH 701 is a fixed-wing homebuilt aircraft categorized under amateur-built aviation. Experimental & kit · United States

Dyn'Aero MCR-01 Club

Dyn'Aero MCR-01 Club The Dyn'Aero MCR-01 CLUB is an amateur-built, fixed-wing light aircraft constructed entirely from composite carbon fibre materials. Experimental & kit · France

Pietenpol Aircamper

Pietenpol Aircamper The Pietenpol Aircamper is an ultralight, fixed-wing homebuilt aircraft featuring a parasol wing layout. Experimental & kit · Canada

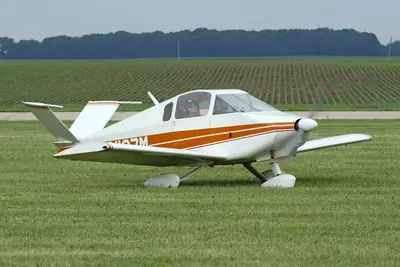

Davis DA-2

Davis DA-2 The Davis DA-2 is a light, fixed-wing homebuilt aircraft designed in the United States for amateur construction enthusiasts. Experimental & kit · Canada

Aerosport Woody Pusher

Aerosport Woody Pusher The Aerosport Woody Pusher is an American single-engine, two-seat parasol wing monoplane designed specifically for amateur home building. Experimental & kit · Estonia

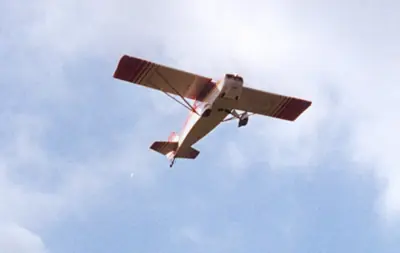

Dakota Cub Aircraft Hawk
