TaylorcraftCertified · Fixed-wing · United States
F22A
- Seats
- 2 2
- Power
- 118 hp88 kW
- Cruise
- 87 kt161 km/h
- US register
- 4 aircraft4 aircraft
About the F22A

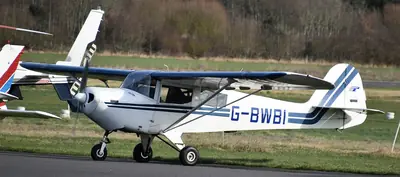

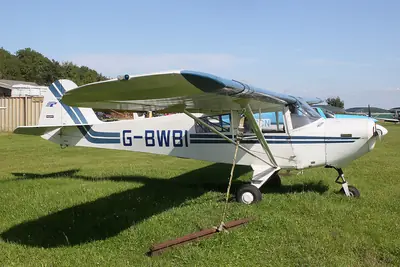

The Taylorcraft F22A is a fixed-wing, single-engine light aircraft featuring a two-seat, side-by-side enclosed cabin layout. Designed with a high wing and strut-braced monoplane configuration, it suits recreational pilots seeking a practical machine with a tricycle undercarriage and fixed flaps.
Tracing its lineage back to earlier models from the early 1940s, the design evolved through successive variants featuring improvements such as wider doors, windows for ventilation, and quick-removal seats. The prototype first took to the air in the late 1980s, followed by production at a factory in Pennsylvania. Operations eventually halted following corporate bankruptcy after a limited number of airframes were constructed.
Engines fitted
4 aircraft| Engine | Power | Share of fleet | Aircraft |
|---|---|---|---|
| Lycoming O-235 | 115 hp | 4 |
This page covers the Taylorcraft TAYLORCRAFT F22A: the same aircraft under other designations.
F22A running costs
$177 an hour| Low | Typical | High | |
|---|---|---|---|
| Fuel | $3,926 | $5,084 | $5,914 |
| Oil | $92 | $115 | $149 |
| Engine overhaul reserve | $2,167 | $2,667 | $4,833 |
| Annual inspection and maintenance | $2,500 | $3,500 | $4,500 |
| Hangar | $3,000 | $6,300 | $9,600 |
| Total | $11,685 | $17,666 | $24,996 |
| Per hour | $117 | $177 | $250 |
Engine
- Model
- Lycoming O-235-L
- Power
- 115 hp
- Overhaul
- 2,400 h / 12 yr
- Fuel burn
- 5.2 – 6.6 gal/h
- Fuel price
- $8.20 /US gal
