StinsonExperimental & kit · Fixed-wing · United States
105
- Seats
- 3 3
- Power
- 75 hp56 kW
- Cruise
- 87 kt161 km/h
- US register
- 1 aircraft1 aircraft
About the 105

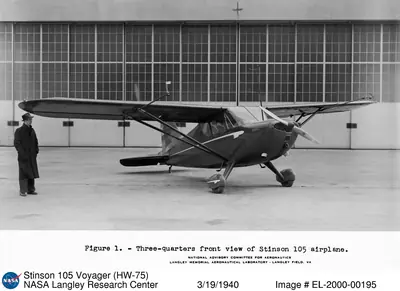

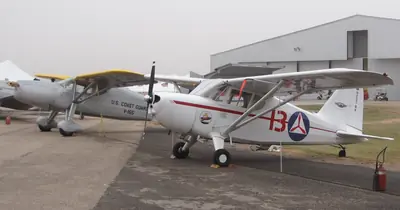

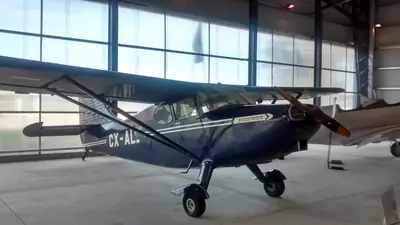

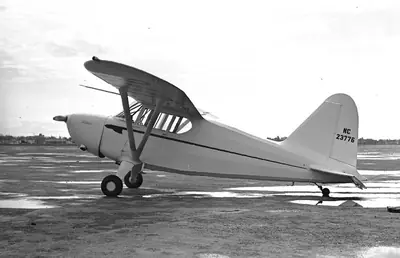

The Stinson 105 is an American single-engine, fixed-wing monoplane intended for light utility duties. Built for civilian operators and small-scale transportation, the aircraft features a braced high-wing layout and accommodates a single pilot alongside passengers.
Initially designated the HW-75, the design underwent several model evolutions during the early 1940s, incorporating wider cabins and alternative power plants such as Franklin and Lycoming engines alongside the original Continental powerplant. A small number were evaluated for military observation tasks without immediate adoption, though several examples were later acquired for domestic courier tasks during wartime. Post-conflict operations saw the design serve as the basis for a four-seat successor.
Engines fitted
1 aircraft| Engine | Power | Share of fleet | Aircraft |
|---|---|---|---|
| Lycoming O-360 | 180 hp | 1 |
105 running costs
$206 an hour| Low | Typical | High | |
|---|---|---|---|
| Fuel | $6,191 | $7,954 | $9,229 |
| Oil | $144 | $180 | $234 |
| Engine overhaul reserve | $2,167 | $2,667 | $4,833 |
| Annual inspection and maintenance | $2,500 | $3,500 | $4,500 |
| Hangar | $3,000 | $6,300 | $9,600 |
| Total | $14,002 | $20,601 | $28,396 |
| Per hour | $140 | $206 | $284 |
Engine
- Model
- Lycoming O-360-A1D
- Power
- 180 hp
- Overhaul
- 2,000 h / 12 yr
- Fuel burn
- 8.2 – 10.3 gal/h
- Fuel price
- $8.20 /US gal
