How much does a used Socata TB-20 Trinidad cost?

Name: Socata TB-20 Trinidad
Brand: Socata

Asking prices for the 23 Socata TB-20 Trinidad aircraft for sale with a price run from $110,761 to $296,482, with a median of $175,000. Half ask between $150,000 and $211,000.

PLANEFILE

SocataCertified · Fixed-wing · France

TB-20 Trinidad

Seats: 5 5
Power: 250 hp186 kW
Cruise: 150 kt278 km/h
US register: 174 aircraft174 aircraft

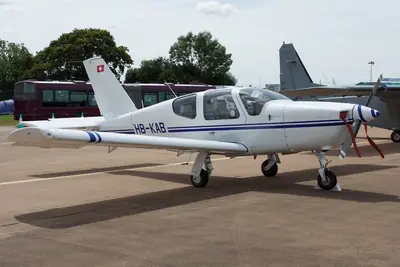

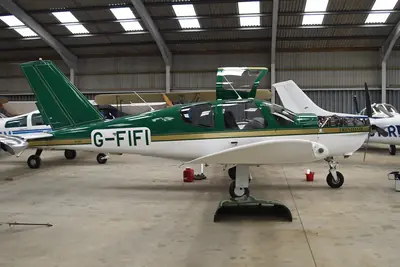

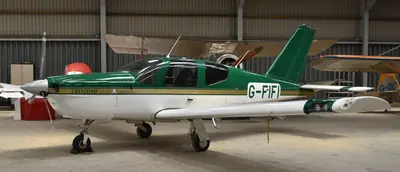

About the TB-20 Trinidad

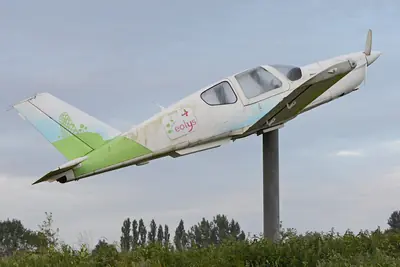

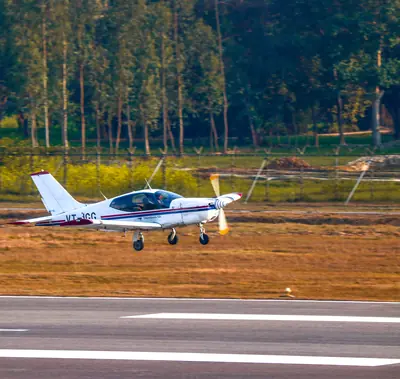

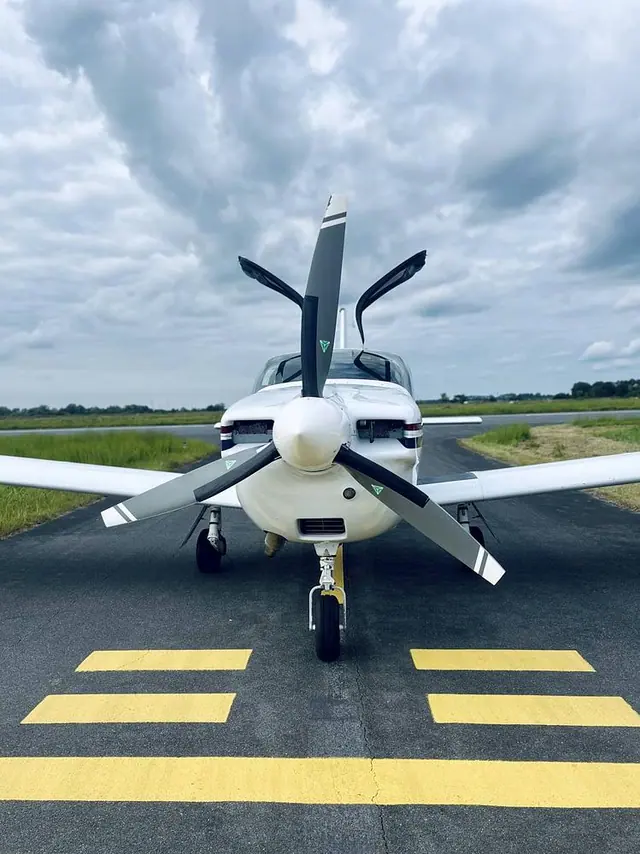

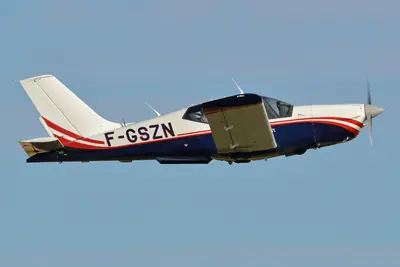

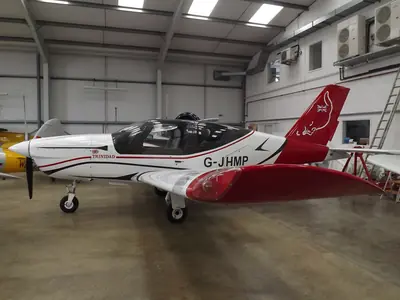

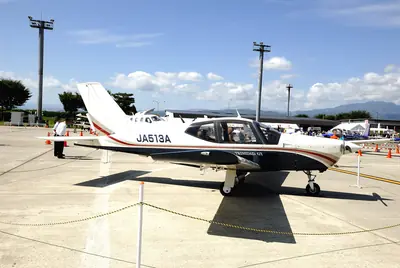

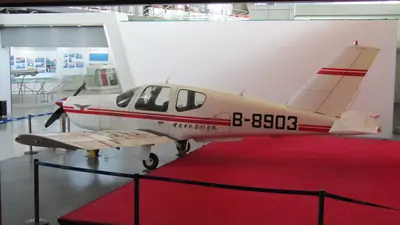

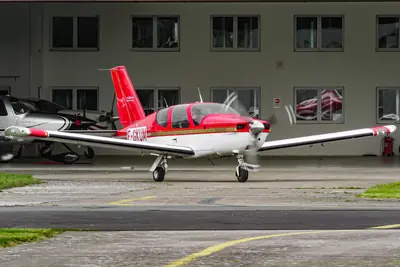

The Socata TB-20 TRINIDAD is a type-certificated, single-engine, fixed-wing aircraft featuring retractable landing gear and a spacious four-to-five-seat cabin with distinctive gull-wing doors. It is designed for pilots seeking a comfortable, wide-cabin European touring alternative to traditional American high-performance singles.

Produced in France beginning in 1980, the series evolved to include upgraded models equipped with modern integrated digital avionics suites and refined cabin ergonomics. The airframe is recognized for its robust construction, comfortable seating, and capability as an efficient cross-country travel machine.

Engines fitted

170 aircraft

Engine	Power	Aircraft
Lycoming IO-540	300 hp	163
Continental IO-540	380 hp	3
Lycoming TIO-540	310 hp	2
Lycoming O-320	180 hp	1
Lycoming O-540	250 hp	1

This page covers the Socata TB-20 Pashosh, TB20: the same aircraft under other designations.

Specifications

TB 21 TRINIDAD TC · LYCOMING TIO-540-AB1AD

Dimensions

Length: 25 ft 5 in 7.75 m7.75 m 25 ft 5 in
Wingspan: 32 ft 4 in 9.85 m9.85 m 32 ft 4 in

Weights

Empty weight: 2,008 lb 911 kg911 kg 2,008 lb
Max take-off weight: 3,086 lb 1,400 kg1,400 kg 3,086 lb
Fuel capacity: 88.8 US gal 336 L336 L 88.8 US gal

Performance

Cruise speed: 150 kt 278 km/h278 km/h 150 kt
Never-exceed speed (Vne): 189 kt 350 km/h350 km/h 189 kt
Stall speed: 59 kt 109 km/h109 km/h 59 kt
Range: 1,110 nm 2,056 km2,056 km 1,110 nm
Service ceiling: 25,000 ft 7,620 m7,620 m 25,000 ft
Rate of climb: 1,100 ft/min 5.6 m/s5.6 m/s 1,100 ft/min

Powerplant

Engine: LYCOMING TIO-540-AB1AD
Engine power: 250 hp 186 kW186 kW 250 hp

Capacity

Seats: 5

ICAO type designator: TB20
Manufacturer: Socata
Country: France
On the US register: 174
Registered in: United States, Germany
Official website: daher.com

Improve this page

Add your photos Suggest a correction

TB-20 Trinidad prices

12 for sale now

Year built Airframe hours Engine hours since overhaul

1995 · 3,500 h

USD

Low: $173,000
Typical: $187,000
High: $211,000

By year built · United States · USD
Built	Hours	Low	Typical	High
1985	3,500	$153,000	$165,000	$187,000
1990	3,500	$163,000	$176,000	$199,000
1995	3,500	$173,000	$187,000	$211,000
2000	1,920	$192,000	$207,000	$234,000

By year built · United Kingdom · GBP
Built	Hours	Low	Typical	High
1980	2,580	£86,000	£110,000	£141,000
1985	2,930	£91,000	£116,000	£149,000
1990	3,220	£96,000	£122,000	£157,000
1995	3,500	£101,000	£129,000	£166,000
2000	1,920	£112,000	£143,000	£184,000

By year built · Euro countries · EUR
Built	Hours	Low	Typical	High
1986	2,480	€110,000	€140,000	€180,000
1987	2,480	€111,000	€142,000	€182,000
1988	3,210	€111,000	€141,000	€181,000
1989	3,950	€110,000	€140,000	€181,000
1990	3,950	€112,000	€142,000	€183,000

TB-20 Trinidad running costs

$390 an hour

Hours a year Aircraft value (USD)

A year
	Low	Typical	High
Fuel	$10,200	$13,105	$15,308
Oil	$240	$300	$390
Engine overhaul reserve	$3,333	$3,958	$5,192
Propeller overhaul reserve	$917	$1,083	$1,250
Annual inspection and maintenance	$3,000	$4,000	$5,000
Hangar	$3,000	$6,300	$9,600
Insurance	$1,875	$2,375	$2,875
Depreciation	$3,933	$7,865	$11,798

Total	$26,498	$38,986	$51,413
Per hour	$265	$390	$514
