Aircraft / Socata / TB-10 Tobago
Socata Certified · Fixed-wing · France
TB-10 Tobago
Seats 5 5
Power 250 hp 186 kW
Cruise 150 kt 278 km/h
US register 52 aircraft 52 aircraft

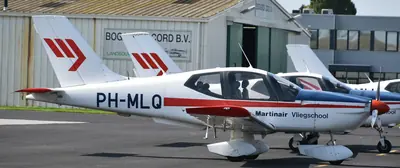

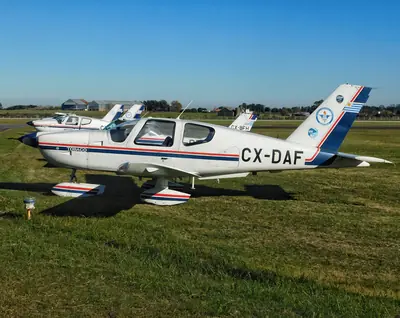

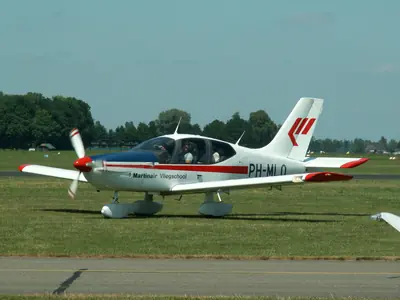

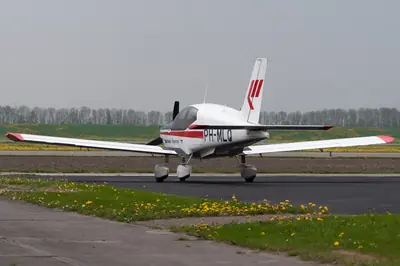

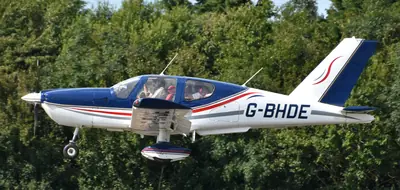

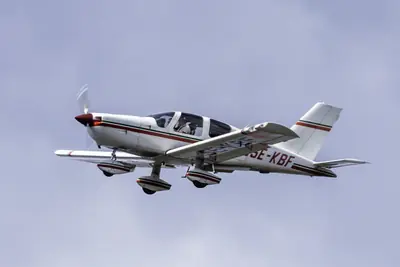

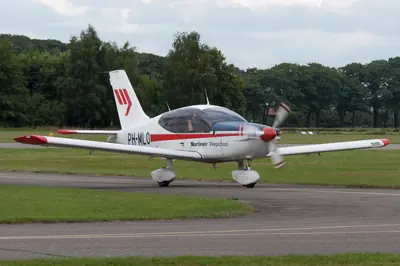

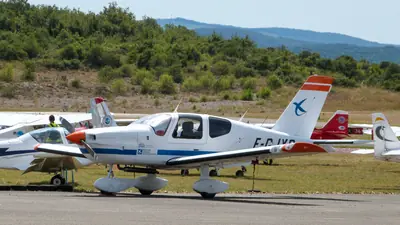

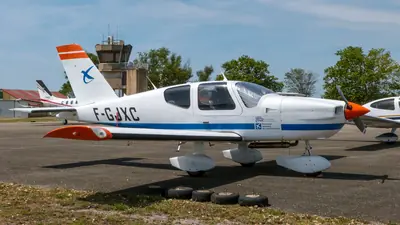

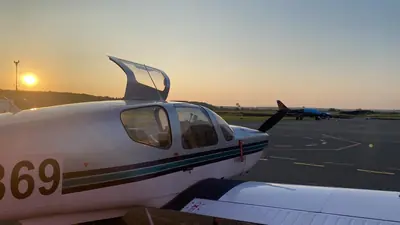

Photo: GerardvdSchaaf · CC BY 2.0 Photo: Gerard van der Schaaf · CC BY 2.0 Photo: Gerard van der Schaaf · CC BY 2.0 Photo: Alf van Beem · CC0 Photo: Alec Wilson from Hampton-in-Arden, United Kingdom · CC BY-SA 2.0 Photo: Bene Riobó · CC BY-SA 4.0 Photo: Alec BHX/KKC · CC BY-SA 2.0 Photo: Sebastián Laguna · CC BY 2.0 Photo: Kakoula10 · CC BY-SA 4.0 Photo: Kakoula10 · CC BY-SA 4.0 Photo: A.Morgunovskaya · CC BY-SA 4.0
About the TB-10 Tobago
Socata TB-10 Tobago is a single-engine fixed-wing aircraft manufactured in France for personal transport, touring, and pilot training. Featuring a low-wing metal layout with a spacious cabin and gull-wing doors, it typically accommodates up to five occupants and suits operators looking for a comfortable European alternative to classic American four-seat trainers.
Developed in the late seventies to succeed the Rallye lineup, design work on the series began to offer superior interior width and contemporary fit and finish. These aircraft are powered by a naturally-aspirated Lycoming piston engine paired with a constant speed propeller. Later generational updates brought aerodynamic refinements, a larger cabin, and modified window styling, while the type continues to be supported with modern glass cockpit retrofit options.
Engines fitted 45 aircraft
Engine Power Share of fleet Aircraft
Lycoming O-360
180 hp
45
This page covers the Socata SOCATA TB10, TB 10, TB-10 Tobago: the same aircraft under other designations.
Specifications TB 21 TRINIDAD TC · LYCOMING TIO-540-AB1AD
US Metric
Dimensions
Length 25 ft 5 in 7.75 m 7.75 m 25 ft 5 in
Wingspan 32 ft 4 in 9.85 m 9.85 m 32 ft 4 in
Wing area 132 sq ft 12.2 m² 12.2 m² 132 sq ft Weights
Empty weight 2,008 lb 911 kg 911 kg 2,008 lb
Max take-off weight 3,086 lb 1,400 kg 1,400 kg 3,086 lb
Fuel capacity 88.8 US gal 336 L 336 L 88.8 US gal Performance
Cruise speed 150 kt 278 km/h 278 km/h 150 kt
Max speed 134 kt 248 km/h 248 km/h 134 kt
Never-exceed speed (Vne) 189 kt 350 km/h 350 km/h 189 kt
Stall speed 59 kt 109 km/h 109 km/h 59 kt
Range 1,110 nm 2,056 km 2,056 km 1,110 nm
Service ceiling 25,000 ft 7,620 m 7,620 m 25,000 ft
Rate of climb 1,100 ft/min 5.6 m/s 5.6 m/s 1,100 ft/min Powerplant
Engine LYCOMING TIO-540-AB1AD
Engine power 250 hp 186 kW 186 kW 250 hp
ICAO type designator TOBA
On the US register 52
Registered in Australia, United States, Germany
1986 · 2,530 h USD
Low $70,000
Typical $81,000
High $115,000
By year built · United States · USD
Built Hours Low Typical High 1980 3,740 $62,000 $72,000 $103,000 1981 3,100 $64,000 $74,000 $105,000 1982 3,100 $65,000 $75,000 $107,000 1983 3,050 $66,000 $76,000 $109,000 1984 2,760 $67,000 $78,000 $111,000 1985 2,760 $69,000 $79,000 $113,000 1986 2,530 $70,000 $81,000 $115,000 1987 2,530 $71,000 $82,000 $118,000 1988 2,530 $73,000 $84,000 $120,000 1989 3,600 $74,000 $86,000 $122,000 1990 8,960 $76,000 $87,000 $125,000 1991 8,960 $77,000 $89,000 $127,000 1992 8,960 $79,000 $91,000 $129,000
By year built · United Kingdom · GBP
Built Hours Low Typical High 1980 3,740 £48,000 £63,000 £90,000 1981 3,100 £49,000 £64,000 £92,000 1982 3,100 £49,000 £66,000 £93,000 1983 3,050 £50,000 £67,000 £95,000
By year built · Euro countries · EUR
Built Hours Low Typical High 1986 2,530 €63,000 €84,000 €120,000 1987 2,530 €65,000 €86,000 €122,000 1988 2,530 €66,000 €87,000 €124,000 1989 3,600 €67,000 €89,000 €127,000 1990 8,960 €68,000 €91,000 €129,000 1991 8,960 €70,000 €92,000 €132,000 1992 8,960 €71,000 €94,000 €134,000
TB-10 Tobago running costs $221 an hour
A year
Low Typical High
Fuel $6,191 $7,954 $9,229 Oil $144 $180 $234 Engine overhaul reserve $2,167 $2,667 $4,833 Annual inspection and maintenance $2,500 $3,500 $4,500 Hangar $3,000 $6,300 $9,600 Insurance $1,167 $1,509 $1,852 Depreciation $0 $0 $0 Total $15,169 $22,110 $30,248 Per hour $152 $221 $302
Engine
Model Lycoming O-360-A1D
Power 180 hp
Overhaul 2,000 h / 12 yr
Fuel burn 8.2 – 10.3 gal/h
Fuel price $8.20 /US gal
Value lost a year 0.0%
Socata 1982 Socata TB-10 Tobago
€10,000 ≈ $11,193
Dealer
Socata 1987 Socata / TB10 1/4 holding to sale
€18,900 ≈ $21,155
Socata 1982 Socata TB-10 Tobago
A$65,000 ≈ $45,646
Dealer
Socata 1987 Socata TB-10 Tobago
€78,000 ≈ $87,305
Dealer
Socata 1986 Eads/Socata TB-10 Tobago
€78,000 ≈ $87,305
Socata 1986 Socata TB-10 Tobago
€82,000 ≈ $91,783
Socata
1982 Socata TB-10 Tobago
€10,000 ≈ $11,193
1982 · 1,791 h · Sweden
Dealer
Socata
1987 Socata / TB10 1/4 holding to sale
€18,900 ≈ $21,155
1987 · 2,845 h · Germany
Socata
1982 Socata TB-10 Tobago
A$65,000 ≈ $45,646
1982 · 3,100 h · United Kingdom
Dealer
Socata
1987 Socata TB-10 Tobago
€78,000 ≈ $87,305
1987 · 2,530 h · Germany
Dealer
Socata

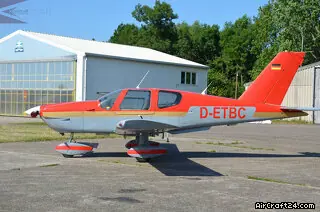

1986 Eads/Socata TB-10 Tobago
