SocataCertified · Fixed-wing · France
ST-10 Diplomate
- Seats
- 4 4
- Power
- 200 hp149 kW
- Cruise
- 143 kt265 km/h
About the ST-10 Diplomate

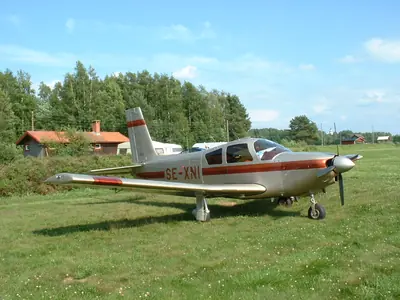

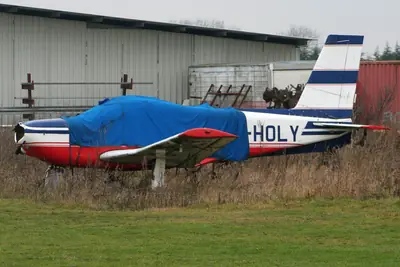

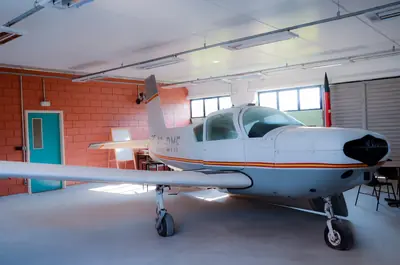

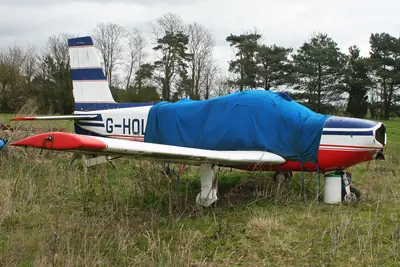

The Socata ST-10 Diplomate functions as a French civil light fixed-wing aircraft laid out for four occupants. It features a single horizontally-opposed piston engine driving a constant-speed propeller in a low-wing monoplane configuration.
Rooted in an earlier horizon design, the aircraft progressed through preliminary naming stages before adopting its final designation. Initial prototype testing occurred in the late sixties, with manufacturing commencing soon after. Assembly operations concluded in the mid-seventies following a modest overall build quantity.
This page covers the Socata SOCATA ST10 DIPLOMATE, ST-10, ST-10 Provence, ST-10 Super Horizon: the same aircraft under other designations.
ST-10 Diplomate running costs
$231 an hour| Low | Typical | High | |
|---|---|---|---|
| Fuel | $6,870 | $8,856 | $10,304 |
| Oil | $160 | $200 | $260 |
| Engine overhaul reserve | $2,167 | $2,667 | $4,833 |
| Propeller overhaul reserve | $917 | $1,083 | $1,250 |
| Annual inspection and maintenance | $3,000 | $4,000 | $5,000 |
| Hangar | $3,000 | $6,300 | $9,600 |
| Total | $16,114 | $23,106 | $31,247 |
| Per hour | $161 | $231 | $312 |
Engine
- Model
- Lycoming IO-360-C1B
- Power
- 200 hp
- Overhaul
- 2,000 h / 12 yr
- Fuel burn
- 9.1 – 11.5 gal/h
- Fuel price
- $8.20 /US gal
