PiperCertified · Fixed-wing · United States
PA-32-301XTC
- Seats
- 6 6
- Power
- 302 hp225 kW
- Cruise
- 147 kt272 km/h
- US register
- 7 aircraft7 aircraft
About the PA-32-301XTC

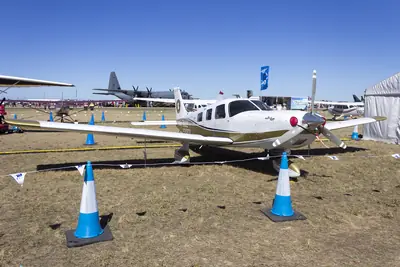

The New Piper Aircraft PA-32-301XTC is a single-engine, fixed-gear light aircraft built in the United States, designed to accommodate six occupants. It suits roles such as private travel, air taxi operations, medical evacuations, and bush support. Its configuration includes a nose baggage area located between the cockpit and engine space, alongside a large double door at the rear to facilitate effortless loading for both passengers and freight.
Crafted to provide greater capacity than a previous four-seat model, the series saw its initial prototype take flight in December 1963, followed by official certification in early 1965. Throughout its manufacturing lifespan, the type has established a widespread global presence across various utility and transport sectors.
Engines fitted
7 aircraft| Engine | Power | Share of fleet | Aircraft |
|---|---|---|---|
| Lycoming TIO-540 | 300 hp | 7 |
This page covers the Piper PA32-301XTC: the same aircraft under other designations.
PA-32-301XTC running costs
$303 an hour| Low | Typical | High | |
|---|---|---|---|
| Fuel | $10,268 | $13,202 | $15,411 |
| Oil | $240 | $300 | $390 |
| Engine overhaul reserve | $4,583 | $5,417 | $8,842 |
| Propeller overhaul reserve | $917 | $1,083 | $1,250 |
| Annual inspection and maintenance | $3,000 | $4,000 | $5,000 |
| Hangar | $3,000 | $6,300 | $9,600 |
| Total | $22,008 | $30,302 | $40,493 |
| Per hour | $220 | $303 | $405 |
Engine
- Model
- Lycoming TIO-540-AH1A
- Power
- 300 hp
- Overhaul
- 1,800 h / 12 yr
- Fuel burn
- 13.6 – 17.2 gal/h
- Fuel price
- $8.20 /US gal
