Aircraft / Mooney / M-20R Ovation
Mooney Certified · Fixed-wing · United States
M-20R Ovation
Seats 4 4
Power 280 hp 209 kW
Cruise 175 kt 324 km/h
US register 397 aircraft 397 aircraft

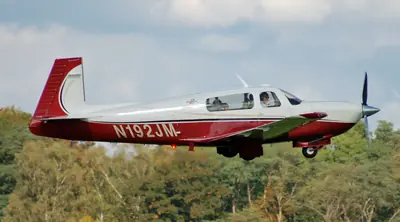

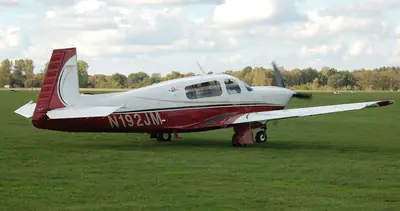

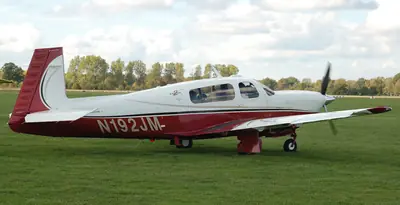

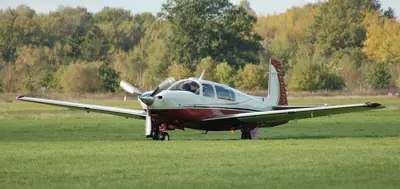

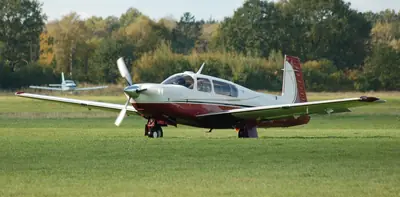

Photo: Rob Hodgkins · CC BY-SA 2.0 Photo: Huhu Uet · CC BY 3.0 Photo: Huhu Uet · CC BY 3.0 Photo: Huhu Uet · CC BY 3.0 Photo: Huhu Uet · CC BY 3.0 Photo: Huhu Uet · CC BY 3.0
About the M-20R Ovation
The Mooney M-20R Ovation is an American single-engine, low-wing fixed-wing aircraft designed for business and leisure travel. Accommodating up to four occupants, it suits pilots and passengers looking for long-range travel capability combined with speed.
Developed from earlier iterations of the manufacturer's long-running single-engine line, the aircraft features a retractable tricycle landing gear and a distinctive tail configuration. It is powered by a horizontally-opposed, fuel-injected piston engine driving a multi-bladed propeller. The type has been maintained through an active owner community and specialized maintenance providers supporting its extensive service history.
Engines fitted 388 aircraft
Engine Power Share of fleet Aircraft
Continental IO-550
300 hp
386
Lycoming O-550
250 hp
1
Continental TP500
350 hp
1
Specifications M20M · Continental TSIO-550-G
US Metric
Dimensions
Length 26 ft 0 in 7.92 m 7.92 m 26 ft 0 in
Wingspan 36 ft 0 in 10.97 m 10.97 m 36 ft 0 in
Wing area 175 sq ft 16.2 m² 16.2 m² 175 sq ft Weights
Empty weight 2,380 lb 1,080 kg 1,080 kg 2,380 lb
Max take-off weight 3,368 lb 1,528 kg 1,528 kg 3,368 lb Performance
Cruise speed 175 kt 324 km/h 324 km/h 175 kt
Max speed 242 kt 448 km/h 448 km/h 242 kt
Stall speed 53 kt 98 km/h 98 km/h 53 kt
Range 1,100 nm 2,037 km 2,037 km 1,100 nm
Service ceiling 25,000 ft 7,620 m 7,620 m 25,000 ft Powerplant
Engine Continental TSIO-550-G
Engine power 280 hp 209 kW 209 kW 280 hp
ICAO type designator M20P
Type certificate EASA.IM.A.266
On the US register 397
Registered in Brazil, Australia, United States, Switzerland, Germany, Canada
1999 · 2,410 h USD
Low $235,000
Typical $258,000
High $292,000
By year built · United States · USD
Built Hours Low Typical High 1995 2,490 $221,000 $243,000 $275,000 1996 2,490 $225,000 $247,000 $279,000 1997 2,490 $228,000 $250,000 $283,000 1998 2,570 $231,000 $253,000 $287,000 1999 2,410 $235,000 $258,000 $292,000 2004 1,230 $266,000 $292,000 $330,000 2005 1,100 $272,000 $299,000 $337,000 2006 1,100 $276,000 $303,000 $343,000 2007 1,100 $280,000 $307,000 $348,000
By year built · United Kingdom · GBP
Built Hours Low Typical High 1995 2,490 £139,000 £182,000 £230,000 1996 2,490 £141,000 £184,000 £233,000 1997 2,490 £143,000 £187,000 £237,000 1998 2,570 £145,000 £190,000 £240,000 1999 2,410 £148,000 £193,000 £244,000 2003 800 £170,000 £222,000 £281,000 2004 1,010 £169,000 £221,000 £280,000 2005 980 £172,000 £225,000 £285,000 2006 980 £175,000 £229,000 £289,000 2007 980 £178,000 £232,000 £293,000
By year built · Euro countries · EUR
Built Hours Low Typical High 1995 2,490 €166,000 €217,000 €275,000 1996 2,490 €169,000 €220,000 €279,000 1997 2,490 €171,000 €224,000 €283,000 1998 2,570 €173,000 €226,000 €286,000 1999 2,410 €177,000 €231,000 €292,000 2003 800 €203,000 €265,000 €335,000 2004 1,010 €202,000 €264,000 €334,000 2005 980 €206,000 €269,000 €340,000 2006 980 €209,000 €273,000 €345,000 2007 980 €212,000 €277,000 €350,000
M-20R Ovation running costs $377 an hour
A year
Low Typical High
Fuel $10,268 $13,202 $15,411 Oil $240 $300 $390 Engine overhaul reserve $3,333 $3,958 $5,192 Propeller overhaul reserve $917 $1,083 $1,250 Annual inspection and maintenance $3,000 $4,000 $5,000 Hangar $3,000 $6,300 $9,600 Insurance $3,018 $3,772 $4,526 Depreciation $2,540 $5,080 $7,621 Total $26,316 $37,695 $48,990 Per hour $263 $377 $490
Engine
Model Continental IO-550-G
Power 300 hp
Overhaul 2,200 h / 12 yr
Fuel burn 13.6 – 17.2 gal/h
Fuel price $8.20 /US gal
Value lost a year 1.7%
