How much does a used Magni Gyro M-22 cost?

Name: Magni Gyro M-22
Brand: Magni Gyro

PLANEFILE

Magni GyroExperimental & kit · Gyrocopter · Italy

M-22

Seats: 2 2
Power: 114 hp85 kW
Cruise: 78 kt145 km/h
US register: 6 aircraft6 aircraft

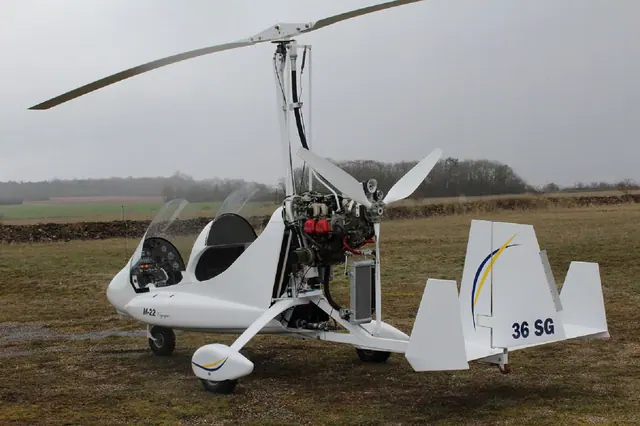

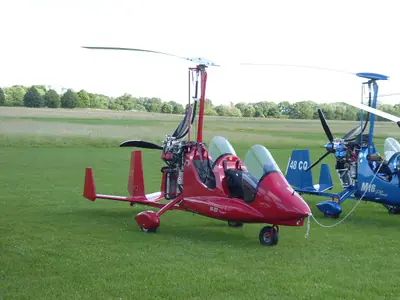

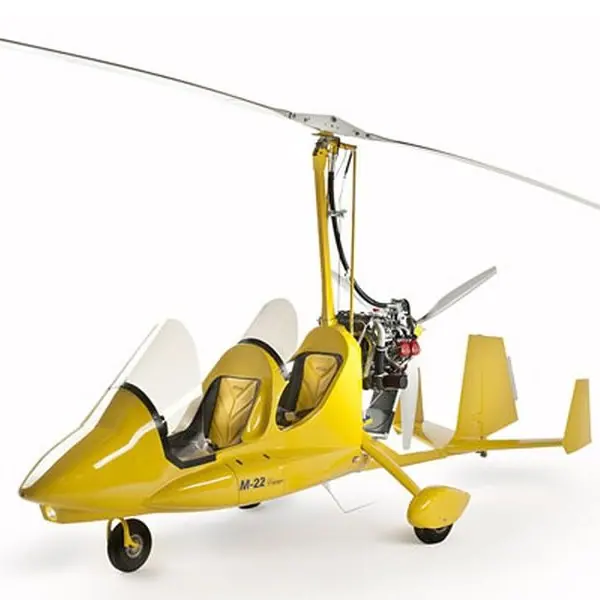

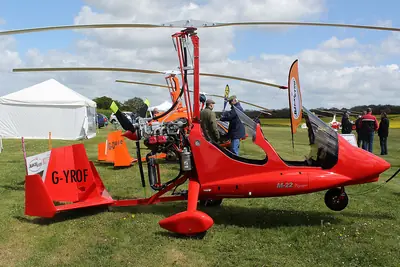

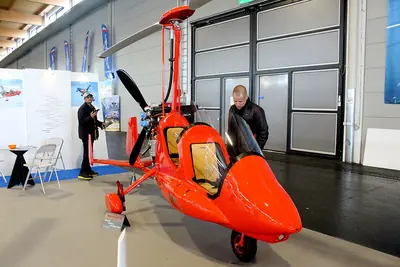

Magni Gyro M-22 — Photo: Josep Ollé · Public Domain MarkPhoto: Mike Burdett · CC BY-SA 2.0Photo: Mike Burdett · CC BY-SA 2.0Photo: Alec BHX/KKC · CC BY-SA 4.0

About the M-22

The Magni Gyro M-22 is a gyrocopter classified as an amateur-built homebuilt aircraft with a single engine and tandem seating for two. It features an open-cockpit configuration and is designed for touring and long-range cross-country personal flight.

Background information explains that the design differs from other company models by omitting the rear pilot controls to provide extra fuel capacity and baggage space. It is equipped with specialized landing gear for rough terrain and utilizes composite rotor systems driven by a reliable powerplant for adventure touring.

Engines fitted

6 aircraft

Engine	Power	Share of fleet	Aircraft
Rotax 914	115 hp		5
Rotax 912	80 hp		1

This page covers the Magni Gyro M-22 Voyager: the same aircraft under other designations.

Specifications

Rotax 914ULS

Dimensions

Length: 14 ft 2 in 4.33 m4.33 m 14 ft 2 in
Main rotor diameter: 27 ft 0 in 8.23 m8.23 m 27 ft 0 in

Weights

Empty weight: 628 lb 285 kg285 kg 628 lb
Max take-off weight: 992 lb 450 kg450 kg 992 lb
Fuel capacity: 21.7 US gal 82 L82 L 21.7 US gal

Performance

Cruise speed: 78 kt 145 km/h145 km/h 78 kt
Max speed: 105 kt 194 km/h194 km/h 105 kt
Service ceiling: 13,100 ft 4,000 m4,000 m 13,100 ft
Rate of climb: 980 ft/min 5.0 m/s5.0 m/s 980 ft/min

Powerplant

Engine: Rotax 914ULS
Engine power: 114 hp 85 kW85 kW 114 hp

Capacity

Seats: 2

Manufacturer: Magni Gyro
Country: Italy
On the US register: 6
Registered in: New Zealand, United States

Improve this page

Add your photos Suggest a correction

M-22 prices

Asking prices of those for sale now, US dollars

Asking prices for the 2 Magni Gyro M-22 aircraft for sale with a price run from $39,176 to $53,726, with a median of $46,500.

M-22 running costs

$179 an hour

Hours a year Aircraft value (USD)

A year
	Low	Typical	High
Fuel	$4,907	$6,150	$7,258
Oil	$92	$115	$149
Engine overhaul reserve	$800	$867	$1,167
Annual inspection and maintenance	$2,500	$3,500	$4,500
Hangar	$3,000	$6,300	$9,600
Insurance	$718	$962	$1,204

Total	$12,017	$17,894	$23,878
Per hour	$120	$179	$239
