Ela AviacionExperimental & kit · Gyrocopter · Spain
07
- Seats
- 2 2
- Power
- 101 hp75 kW
- Cruise
- 76 kt140 km/h
- US register
- 3 aircraft3 aircraft
About the 07

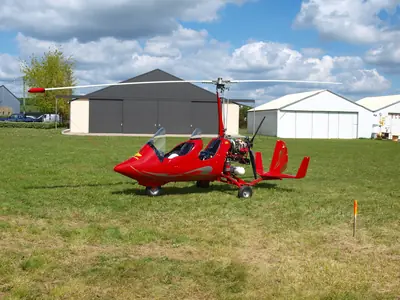

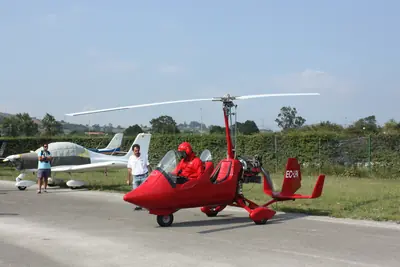

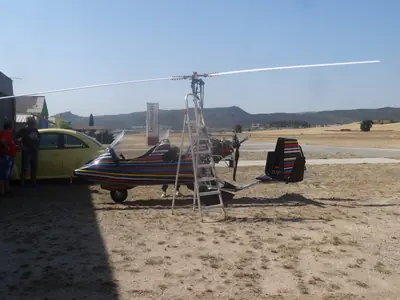

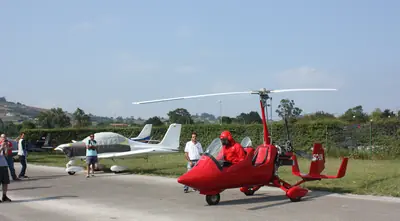

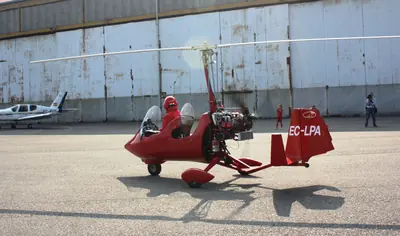

The Ela Aviacion 07 is a Spanish gyrocopter series configured as a two-seat, tandem open-cockpit rotorcraft with a single main rotor and a pusher engine arrangement. It suits recreational pilots seeking a ready-to-fly aircraft equipped with tricycle landing gear and wheel pants.
The fuselage is constructed from corrosion-resistant stainless steel tubing paired with a non-structural carbon fiber and resin cockpit fairing and a triple tail. The design incorporates mechanical and pneumatic trim systems along with an optional forward baggage compartment. Several examples have been registered for operation with aviation authorities.
Engines fitted
3 aircraft| Engine | Power | Share of fleet | Aircraft |
|---|---|---|---|
| Rotax 912 | 100 hp | 3 |
07 running costs
$161 an hour| Low | Typical | High | |
|---|---|---|---|
| Fuel | $4,228 | $5,330 | $6,272 |
| Oil | $80 | $100 | $130 |
| Engine overhaul reserve | $800 | $867 | $1,167 |
| Annual inspection and maintenance | $2,500 | $3,500 | $4,500 |
| Hangar | $3,000 | $6,300 | $9,600 |
| Total | $10,608 | $16,097 | $21,669 |
| Per hour | $106 | $161 | $217 |
Engine
- Model
- Rotax 912ULS
- Power
- 100 hp
- Overhaul
- 2,000 h / 15 yr
- Fuel burn
- 5.6 – 7.0 gal/h
- Fuel price
- $8.20 /US gal
