Grumman American AviationCertified · Fixed-wing · United States

AA-5A

Seats
4 4
Power
180 hp134 kW
Cruise
143 kt265 km/h
US register
97 aircraft97 aircraft

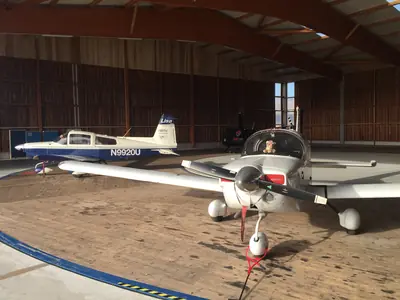

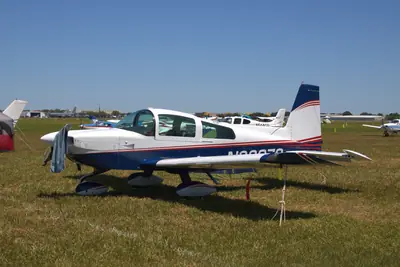

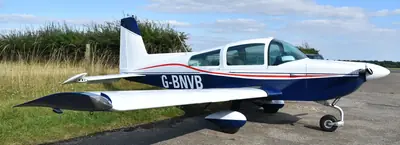

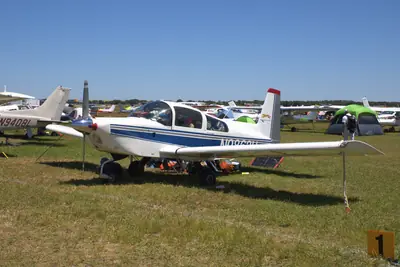

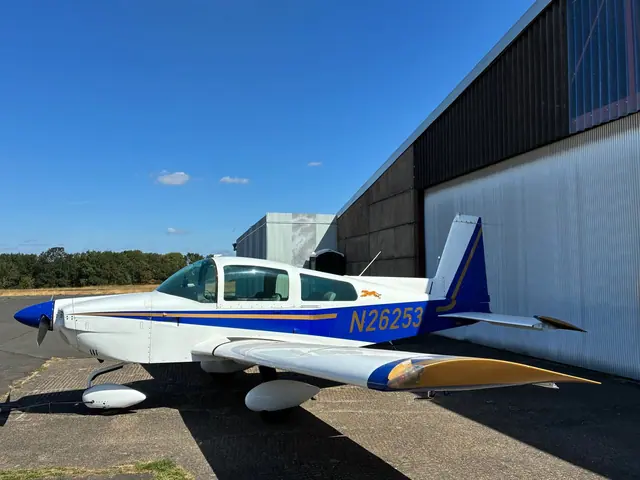

Grumman American Aviation AA-5A
Grumman American Aviation AA-5A
Grumman American Aviation AA-5A
Grumman American Aviation AA-5A
Grumman American Aviation AA-5A
Photo: ZLEA · CC BY-SA 4.0Photo: ZLEA · CC BY-SA 4.0Photo: ZLEA · CC BY-SA 4.0Photo: Alexanderwipf · CC BY-SA 4.0Photo: Alec Wilson from Khon Kaen, Thailand · CC BY-SA 2.0

About the AA-5A

The Gulfstream American AA-5A is an American type-certificated fixed-wing aircraft utilized primarily for touring and flight training. It is configured as a four-seat, single-engine monoplane featuring an all-metal airframe and a sliding canopy that provides access over the wing root. Pilots appreciate its responsive handling characteristics and efficient cruising speeds.

Originating from an earlier two-seat design, the manufacturer enlarged the cabin dimensions to create a four-seat variant while maintaining significant parts commonality to reduce development costs. The series is notable for its bonded aluminum wing and honeycomb fuselage construction, which eliminates traditional rivets, alongside a free-castering nosewheel steered via differential braking.

Engines fitted

93 aircraft
EnginePowerShare of fleetAircraft
Lycoming O-320 180 hp 93

This page covers the Grumman American Aviation GRUMMAN AA-5A: the same aircraft under other designations.

AA-5A prices

Asking prices of those for sale now, US dollars

Asking prices for the 5 Grumman American Aviation AA-5A aircraft for sale with a price run from $73,526 to $90,000, with a median of $83,000. Half ask between $79,500 and $88,400.

{# the label links to these aircraft for sale, built in that span. On the label and not the count: the bands count every aircraft on the market (on_market) while the grid shows only those with a photo (live), so the count is not a promise of how many cards appear. A band cached before year_min existed renders as plain text rather than a link to an unfiltered list. #}
By year built
BuiltFor saleMedian askingRangeMedian hours
1970s6$85,700$79,500 – $90,0004,300
2020s1$73,500$73,52610,600

AA-5A running costs

$220 an hour
A year
LowTypicalHigh
Fuel$6,191$7,954$9,229
Oil$144$180$234
Engine overhaul reserve$2,167$2,667$4,833
Annual inspection and maintenance$2,500$3,500$4,500
Hangar$3,000$6,300$9,600
Insurance$1,047$1,363$1,679
Total$15,049$21,964$30,075
Per hour$150$220$301

Engine

Model
Lycoming O-320-E2G
Power
180 hp
Overhaul
2,000 h / 12 yr
Fuel burn
8.2 – 10.3 gal/h
Fuel price
$8.20 /US gal

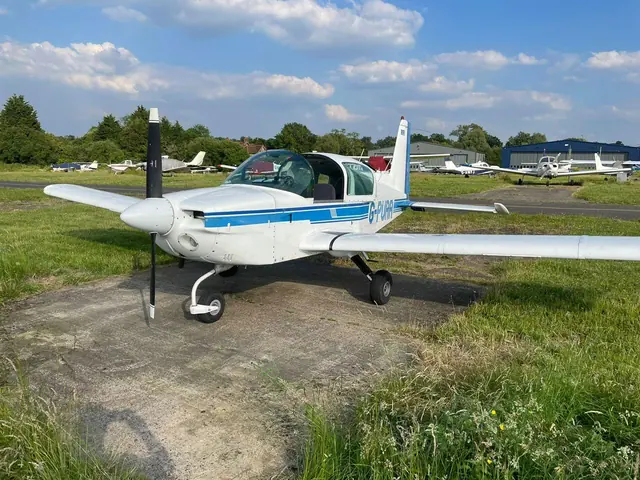

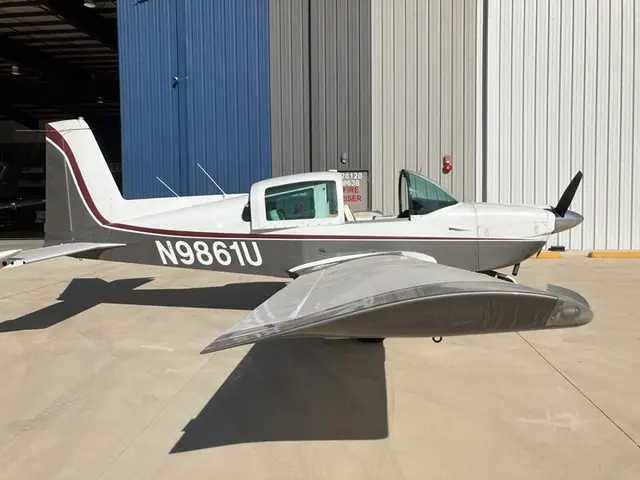

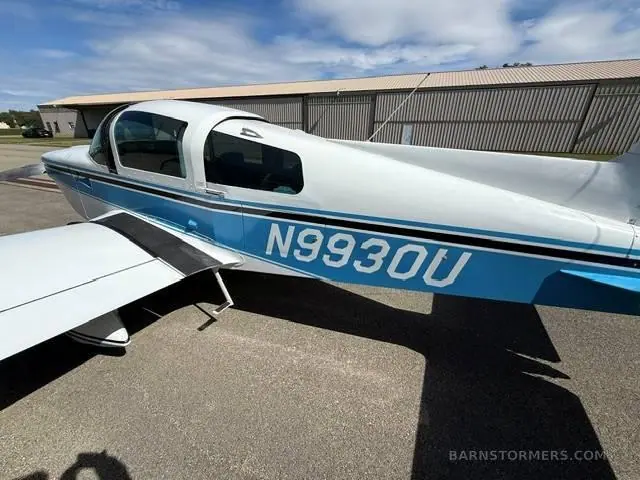

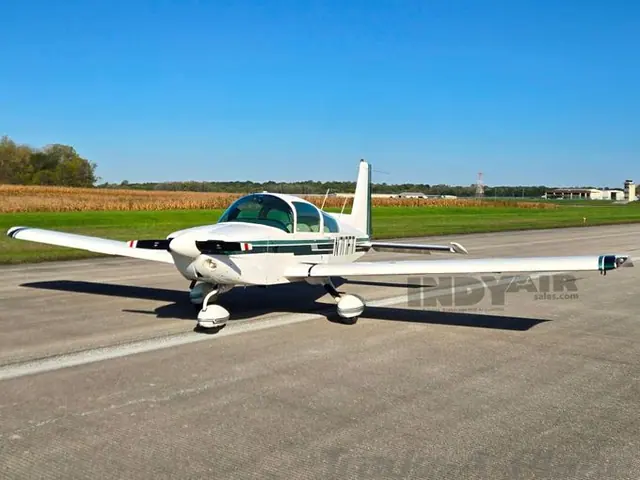

AA-5A for sale now

All AA-5A for sale (7)
