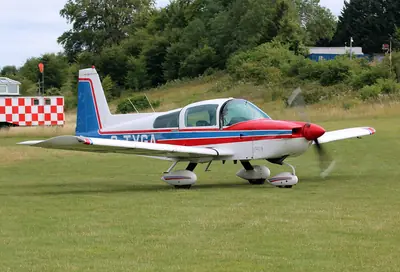

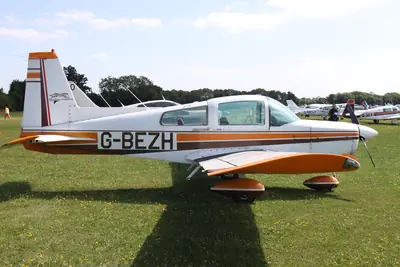

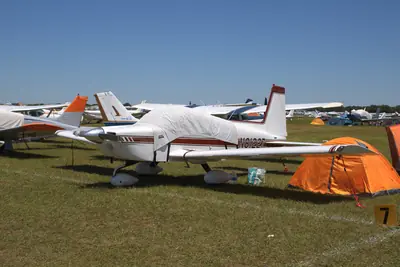

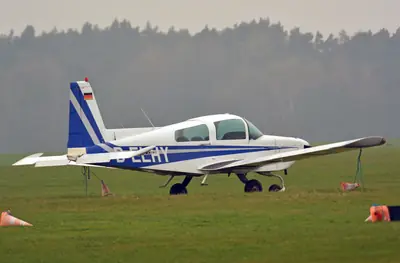

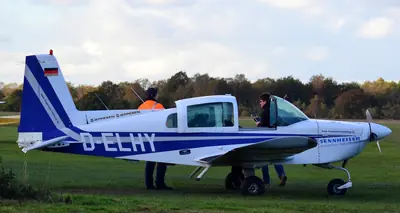

Aircraft / Grumman American Aviation / AA-5
Seats 4 4
Power 180 hp 134 kW
Cruise 143 kt 265 km/h
US register 255 aircraft 255 aircraft
Photo: Alexanderwipf · CC BY-SA 4.0 Photo: Alexanderwipf · CC BY-SA 4.0 Photo: Sphilbrick · CC BY-SA 3.0 Photo: Ian Kirk from Broadstone, Dorset, UK · CC BY 2.0 Photo: Mike Burdett from CROMER, UK · CC BY-SA 2.0 Photo: Bidgee · CC BY-SA 3.0 au Photo: Aeroprints.com · CC BY-SA 3.0 Photo: Aeroprints.com · CC BY-SA 3.0 Photo: Arpingstone · Public domain Photo: Huhu Uet · CC BY-SA 3.0 Photo: Huhu Uet · CC BY 3.0 Photo: Frank Schwichtenberg · CC BY-SA 3.0 Photo: wiltshirespotter · CC BY-SA 2.0 Photo: ZLEA · CC BY-SA 4.0 Photo: ZLEA · CC BY-SA 4.0 Photo: ZLEA · CC BY-SA 4.0 Photo: Alexanderwipf · CC BY-SA 4.0 Photo: Alec Wilson from Khon Kaen, Thailand · CC BY-SA 2.0 Photo: ZLEA · CC BY-SA 4.0 Photo: ZLEA · CC BY-SA 4.0 Photo: ZLEA · CC BY-SA 4.0 Photo: San Diego Air & Space Museum Archives · Public domain Photo: wiltshirespotter · CC BY-SA 2.0 Photo: Joost J. Bakker IJmuiden · CC BY 4.0 Photo: Mike Burdett · CC BY-SA 2.0 Photo: Mike Burdett · CC BY-SA 2.0
About the AA-5
The Grumman American Avn AA-5 is an American all-metal light aircraft featuring a single piston engine and a fixed-wing configuration. Designed with four seats enclosed beneath a sliding canopy, the aircraft is widely utilized for personal touring and flight training.
Following earlier two-seat projects, the manufacturer created this four-seater by enlarging an existing design to maintain parts commonality and reduce development costs. The airframe utilizes a unique bonded aluminum wing and honeycomb fuselage construction, complemented by fiberglass main landing gear and a free-castering nosewheel. Pilots access the cabin by stepping over the wing root, and the type is recognized for its nimble handling and responsive controls.
Engines fitted 251 aircraft
Engine Power Share of fleet Aircraft
Lycoming O-320
180 hp
245
Lycoming O-340
170 hp
4
Lycoming O-360
180 hp
1
Lycoming O-145
75 hp
1
This page covers the Grumman American Aviation AA-5, AA-5 Cheetah, AA-5 Tiger, AA-5 Traveler, AA-5A, AA-5A, AA-5B, AA-5B, AA-5C, AA-5X, GRUMMAN AA-5: the same aircraft under other designations.
Specifications 2005 model Tiger Aircraft AG-5B Tiger · Lycoming O-360-A4K
US Metric
Dimensions
Length 22 ft 0 in 6.71 m 6.71 m 22 ft 0 in
Wingspan 31 ft 0 in 9.45 m 9.45 m 31 ft 0 in
Wing area 140 sq ft 13.0 m² 13.0 m² 140 sq ft Weights
Empty weight 1,500 lb 680 kg 680 kg 1,500 lb
Max take-off weight 2,400 lb 1,089 kg 1,089 kg 2,400 lb Performance
Cruise speed 143 kt 265 km/h 265 km/h 143 kt
Max speed 148 kt 274 km/h 274 km/h 148 kt
Never-exceed speed (Vne) 174 kt 322 km/h 322 km/h 174 kt
Stall speed 53 kt 98 km/h 98 km/h 53 kt
Range 681 nm 1,261 km 1,261 km 681 nm
Service ceiling 13,800 ft 4,206 m 4,206 m 13,800 ft
Rate of climb 850 ft/min 4.3 m/s 4.3 m/s 850 ft/min Powerplant
Engine Lycoming O-360-A4K
Engine power 180 hp 134 kW 134 kW 180 hp
On the US register 255
Registered in New Zealand, United States
1977 · 3,240 h USD
Low $100,000
Typical $114,000
High $129,000
By year built · United States · USD
Built Hours Low Typical High 1975 2,970 $93,000 $107,000 $121,000 1976 3,470 $95,000 $108,000 $122,000 1977 3,240 $100,000 $114,000 $129,000 1978 3,240 $104,000 $119,000 $134,000 1979 3,350 $107,000 $123,000 $139,000
By year built · United Kingdom · GBP
Built Hours Low Typical High 1974 3,740 £49,000 £62,000 £77,000 1975 3,740 £51,000 £64,000 £80,000 1976 3,740 £53,000 £67,000 £84,000
By year built · Euro countries · EUR
Built Hours Low Typical High 1974 3,520 €71,000 €89,000 €111,000 1975 3,600 €73,000 €92,000 €115,000 1976 3,490 €77,000 €96,000 €120,000 1977 3,240 €81,000 €102,000 €127,000 1978 3,240 €84,000 €106,000 €132,000 1979 3,240 €88,000 €110,000 €137,000
AA-5 running costs $220 an hour
A year
Low Typical High
Fuel $6,191 $7,954 $9,229 Oil $144 $180 $234 Engine overhaul reserve $2,167 $2,667 $4,833 Annual inspection and maintenance $2,500 $3,500 $4,500 Hangar $3,000 $6,300 $9,600 Insurance $1,065 $1,385 $1,705 Total $15,067 $21,986 $30,101 Per hour $151 $220 $301
Engine
Model Lycoming O-320-E2G
Power 180 hp
Overhaul 2,000 h / 12 yr
Fuel burn 8.2 – 10.3 gal/h
Fuel price $8.20 /US gal
Grumman American Avn 1974 Grumman/american General AA5 Traveler
$29,000
Dealer
Grumman American Aviat 1974 – -Grumman AA5 Traveler
£32,000 ≈ $42,779
Grumman American Aviation 1978 Grumman Cheetah
£39,995 ≈ $53,466
Dealer
Grumman American Aviation 1976 Grumman cheetah
$65,000
Private seller
Grumman American Avn – – 1974 Grumman AA-5 Traveler
£49,950 ≈ $66,775
Grumman American Avn 1975 Grumman American AA-5 Traveler
€62,000 ≈ $69,397
Private seller
Grumman American Avn

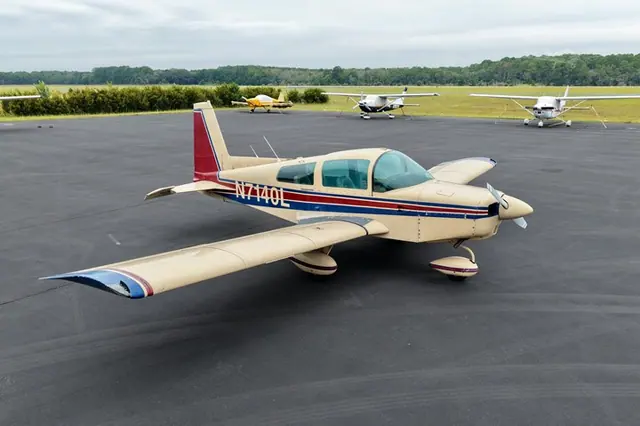

1974 Grumman/american General AA5 Traveler
$29,000
1974 · 4,447 h · United States
Dealer
Grumman American Aviat
1974 – -Grumman AA5 Traveler
£32,000 ≈ $42,779
1974 · 3,397 h · United Kingdom
Grumman American Aviation

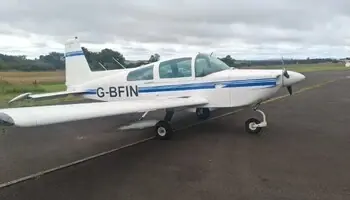

1978 Grumman Cheetah
£39,995 ≈ $53,466
1978 · 6,740 h · United Kingdom
Dealer
Grumman American Aviation

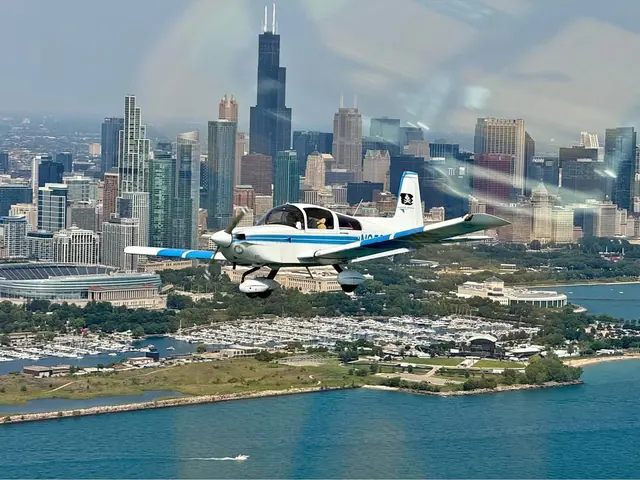

1976 Grumman cheetah
$65,000
1976 · 4,350 h · United States
Private seller
Grumman American Avn
– – 1974 Grumman AA-5 Traveler
£49,950 ≈ $66,775
1974 · 3,800 h · United Kingdom
Grumman American Avn

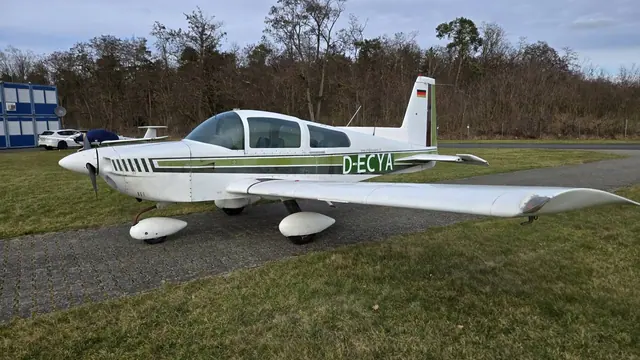

1975 Grumman American AA-5 Traveler
