Aircraft / Cessna / A185F
Cessna Certified · Fixed-wing · United States
A185F
Seats 6 6
Power 300 hp 224 kW
Cruise 145 kt 269 km/h
US register 1,113 aircraft 1,113 aircraft

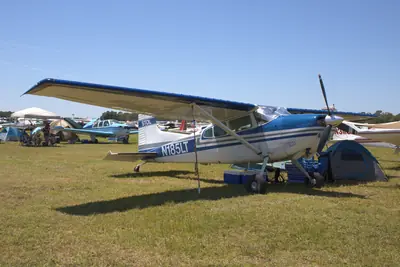

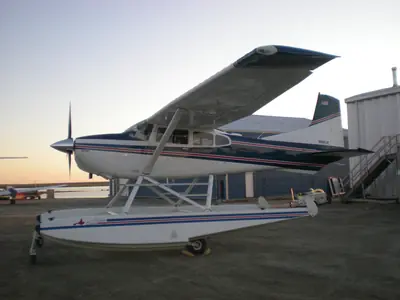

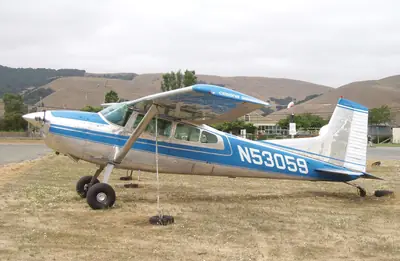

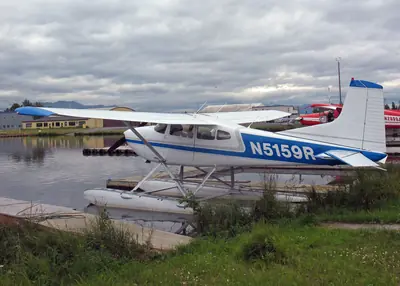

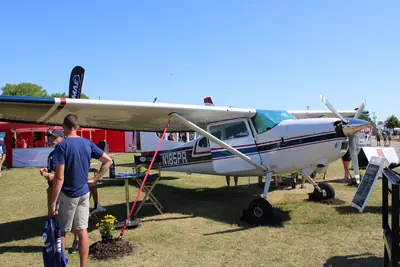

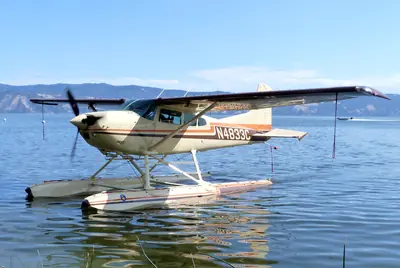

Photo: AlaskaNPS · Public domain Photo: TimothyMN ( talk ) · CC BY 3.0 Photo: Bill Larkins · CC BY-SA 2.0 Photo: Bill Larkins · CC BY-SA 2.0 Photo: CambridgeBayWeather · CC BY-SA 3.0 Photo: ZLEA · CC BY-SA 4.0 Photo: ZLEA · CC BY-SA 4.0
About the A185F
The Cessna A185F is a type-certificated, fixed-wing light aircraft featuring a high-wing configuration, a tailwheel landing gear layout, and a single engine. It accommodates up to six occupants and suits utility missions, freight hauling, and passenger transport in remote environments.
Developed as a stronger version of an earlier Cessna model, the aircraft first flew as a prototype in nineteen sixty. Production continued for over two decades with thousands of units completed before concluding in the mid-nineteen eighties. The type has frequently been adapted for bush flying on floats, amphibious gear, or skis, and can also be equipped with cargo pods or chemical tanks for aerial spraying.
Engines fitted 1,028 aircraft
Engine Power Share of fleet Aircraft
Continental IO-520
285 hp
986
Continental IO-550
300 hp
32
Lycoming IO-520
285 hp
7
Continental TSIO-520
300 hp
3
This page covers the Cessna A185F HIDROAVIÃO: the same aircraft under other designations.
Specifications 1978 Cessna 185 II landplane · Continental IO-520-D
US Metric
Dimensions
Length 25 ft 0 in 7.62 m 7.62 m 25 ft 0 in
Wingspan 35 ft 0 in 10.67 m 10.67 m 35 ft 0 in
Wing area 174 sq ft 16.2 m² 16.2 m² 174 sq ft Weights
Empty weight 1,748 lb 793 kg 793 kg 1,748 lb
Max take-off weight 3,350 lb 1,520 kg 1,520 kg 3,350 lb Performance
Cruise speed 145 kt 269 km/h 269 km/h 145 kt
Max speed 155 kt 287 km/h 287 km/h 155 kt
Stall speed 49 kt 91 km/h 91 km/h 49 kt
Range 720 nm 1,333 km 1,333 km 720 nm
Service ceiling 17,150 ft 5,227 m 5,227 m 17,150 ft
Rate of climb 1,010 ft/min 5.1 m/s 5.1 m/s 1,010 ft/min Powerplant
Engine Continental IO-520-D
Engine power 300 hp 224 kW 224 kW 300 hp
ICAO type designator C185
On the US register 1,113
Registered in Brazil, United Kingdom, New Zealand, Australia, United States, Canada
1977 · 3,850 h USD
Low $267,000
Typical $321,000
High $381,000
By year built · United States · USD
Built Hours Low Typical High 1973 7,650 $242,000 $290,000 $345,000 1974 3,070 $278,000 $333,000 $396,000 1975 3,480 $272,000 $327,000 $388,000 1976 3,480 $272,000 $326,000 $388,000 1977 3,850 $267,000 $321,000 $381,000 1978 2,840 $280,000 $336,000 $399,000 1979 3,220 $274,000 $329,000 $391,000 1980 2,620 $283,000 $339,000 $403,000
By year built · United Kingdom · GBP
Built Hours Low Typical High 1973 3,960 £183,000 £240,000 £305,000 1974 3,070 £190,000 £249,000 £317,000 1975 3,240 £189,000 £247,000 £314,000 1976 3,410 £187,000 £245,000 £311,000 1977 3,850 £183,000 £240,000 £305,000 1978 3,850 £183,000 £240,000 £304,000 1979 6,460 £169,000 £221,000 £281,000 1980 6,800 £167,000 £219,000 £278,000
By year built · Euro countries · EUR
Built Hours Low Typical High 1973 3,960 €219,000 €287,000 €364,000 1974 3,070 €227,000 €298,000 €378,000 1975 3,240 €225,000 €295,000 €375,000 1976 3,410 €223,000 €292,000 €371,000 1977 3,850 €219,000 €287,000 €364,000 1978 3,850 €219,000 €286,000 €363,000 1979 6,460 €202,000 €264,000 €335,000 1980 6,800 €200,000 €261,000 €332,000
By year built · Elsewhere · USD
Built Hours Low Typical High 1974 2,510 $284,000 $341,000 $405,000 1975 2,510 $284,000 $341,000 $405,000 1976 3,500 $269,000 $323,000 $384,000 1977 4,970 $255,000 $306,000 $363,000 1978 7,430 $239,000 $287,000 $341,000 1979 8,930 $232,000 $279,000 $331,000 1980 8,930 $232,000 $278,000 $331,000
A185F running costs $361 an hour
A year
Low Typical High
Fuel $9,815 $12,546 $14,694 Oil $228 $285 $370 Engine overhaul reserve $3,333 $3,958 $5,192 Propeller overhaul reserve $917 $1,083 $1,250 Annual inspection and maintenance $3,000 $4,000 $5,000 Hangar $3,000 $6,300 $9,600 Insurance $2,955 $3,695 $4,435 Depreciation $2,111 $4,221 $6,332 Total $25,359 $36,088 $46,873 Per hour $254 $361 $469
Engine
Model Continental IO-520-D
Power 285 hp
Overhaul 1,900 h / 12 yr
Fuel burn 13.0 – 16.4 gal/h
Fuel price $8.20 /US gal
Value lost a year 1.4%
Cessna
1974 Cessna A185F
$190,000
1974 · United States
Private seller
Cessna
Cessna Cessa A185F
C$275,000 ≈ $196,494
· Canada
Private seller
Cessna

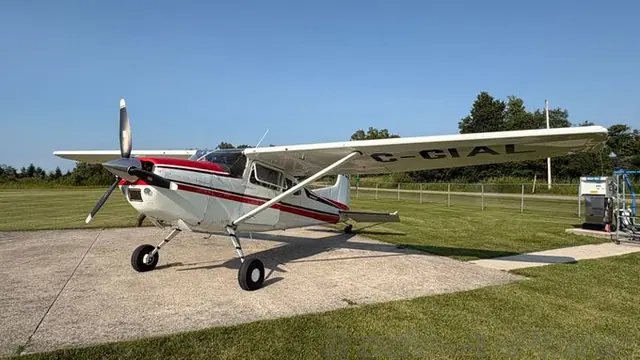

1980 Cessna A185F
