Aircraft / Beechcraft / G36 Bonanza
Beechcraft Certified · Fixed-wing · United States
G36 Bonanza
Seats 6 6
Power 300 hp 224 kW
Cruise 176 kt 326 km/h
US register 379 aircraft 379 aircraft

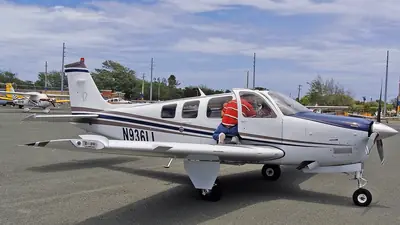

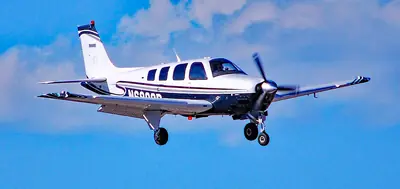

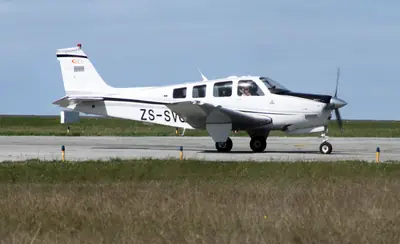

Photo: TDelCoro · CC BY-SA 4.0 Photo: Asylumkid · CC BY-SA 2.0 Photo: TDelCoro · CC BY-SA 4.0 Photo: TDelCoro · CC BY-SA 4.0
About the G36 Bonanza
The Beechcraft G36 Bonanza is an American single-engine, low-wing fixed-wing aircraft designed to carry six occupants. It suits pilots seeking personal transport with high-performance capabilities, traditional conventional landing gear, and a spacious cabin equipped with modern avionics.
Engines fitted 310 aircraft
Engine Power Share of fleet Aircraft
Continental IO-550
300 hp
307
Continental IO-520
285 hp
1
Continental TSIO-550
310 hp
1
Continental E-TSIOF-550-P
350 hp
1
Specifications 2011 model G36 · Continental IO-550-B
US Metric
Dimensions
Length 27 ft 0 in 8.23 m 8.23 m 27 ft 0 in
Wingspan 33 ft 0 in 10.06 m 10.06 m 33 ft 0 in
Wing area 181 sq ft 16.8 m² 16.8 m² 181 sq ft Weights
Empty weight 2,517 lb 1,142 kg 1,142 kg 2,517 lb
Max take-off weight 3,650 lb 1,656 kg 1,656 kg 3,650 lb Performance
Cruise speed 176 kt 326 km/h 326 km/h 176 kt
Never-exceed speed (Vne) 203 kt 376 km/h 376 km/h 203 kt
Stall speed N/A
Range 716 nm 1,326 km 1,326 km 716 nm
Service ceiling 18,500 ft 5,639 m 5,639 m 18,500 ft
Rate of climb 1,230 ft/min 6.2 m/s 6.2 m/s 1,230 ft/min Powerplant
Engine Continental IO-550-B
Engine power 300 hp 224 kW 224 kW 300 hp
ICAO type designator BE36
Type certificate EASA.IM.A.279
On the US register 379
Registered in Brazil, Australia, United States
2015 · 720 h USD
Low $741,000
Typical $806,000
High $891,000
By year built · United States · USD
Built Hours Low Typical High 2005 1,580 $540,000 $587,000 $648,000 2010 1,380 $632,000 $686,000 $759,000 2015 720 $741,000 $806,000 $891,000 2020 510 $869,000 $944,000 $1,044,000
By year built · United Kingdom · GBP
Built Hours Low Typical High 2005 1,580 £339,000 £439,000 £562,000 2010 1,380 £397,000 £514,000 £658,000 2015 700 £467,000 £603,000 £773,000 2020 420 £547,000 £707,000 £907,000
By year built · Euro countries · EUR
Built Hours Low Typical High 2007 1,000 €401,000 €519,000 €665,000 2008 1,000 €414,000 €535,000 €686,000 2009 1,000 €427,000 €552,000 €708,000 2017 330 €552,000 €714,000 €915,000 2018 330 €570,000 €737,000 €944,000 2019 330 €588,000 €760,000 €974,000
G36 Bonanza running costs $579 an hour
A year
Low Typical High
Fuel $10,268 $13,202 $15,411 Oil $240 $300 $390 Engine overhaul reserve $3,333 $3,958 $5,192 Propeller overhaul reserve $917 $1,083 $1,250 Annual inspection and maintenance $3,000 $4,000 $5,000 Hangar $3,000 $6,300 $9,600 Insurance $6,438 $7,952 $9,466 Depreciation $10,544 $21,089 $31,633 Total $37,740 $57,884 $77,942 Per hour $377 $579 $779
Engine
Model Continental IO-550-B
Power 300 hp
Overhaul 1,900 h / 12 yr
Fuel burn 13.6 – 17.2 gal/h
Fuel price $8.20 /US gal
Value lost a year 3.1%
