How much does a used Agusta A109A cost?

Name: Agusta A109A
Brand: Agusta

PLANEFILE

AgustaCertified · Rotorcraft · Italy

A109A

Seats: 7 7
Power: 561 hp418 kW
Cruise: 154 kt285 km/h
US register: 6 aircraft6 aircraft

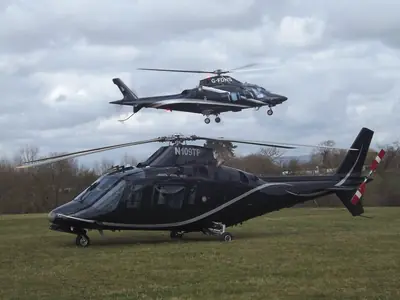

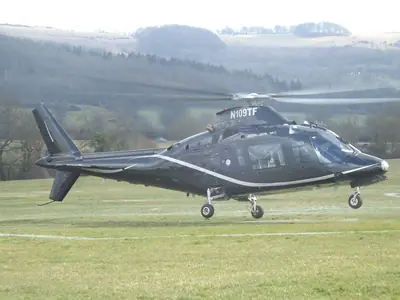

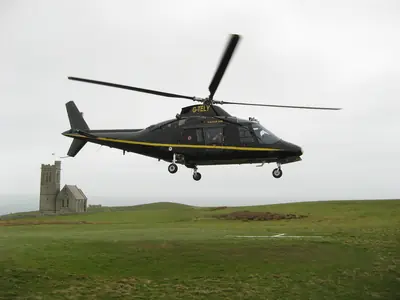

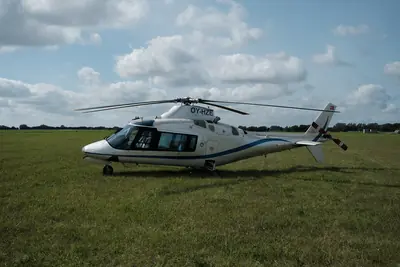

About the A109A

The Agusta A109A is a type-certificated, twin-engine rotorcraft designed and initially produced in Italy. It is a multi-purpose helicopter capable of accommodating up to eight people, including the pilot, and suits roles ranging from executive VIP transport and law enforcement to aeromedical evacuation and military operations.

Development began in the late nineteen-sixties, culminating in the first prototype's maiden flight and subsequent civil certification. The aircraft features a fully articulated main rotor and retractable tricycle landing gear, and has evolved through numerous variants with upgraded engines, widened cabins, and specialized mission equipment over decades of continuous production.

Engines fitted

4 aircraft

Engine	Power	Share of fleet	Aircraft
Allison 250	420 hp		4

This page covers the Agusta 109A, A109A, A109A II, AGUSTA A109A: the same aircraft under other designations.

Specifications

AW109 Power with PW206C) 2850 Kilo version · 2 × Pratt & Whitney Canada PW206C

Dimensions

Length: 37 ft 7 in 11.45 m11.45 m 37 ft 7 in
Main rotor diameter: 36 ft 1 in 11.00 m11.00 m 36 ft 1 in

Weights

Empty weight: 3,505 lb 1,590 kg1,590 kg 3,505 lb
Max take-off weight: 6,283 lb 2,850 kg2,850 kg 6,283 lb

Performance

Cruise speed: 154 kt 285 km/h285 km/h 154 kt
Max speed: 168 kt 311 km/h311 km/h 168 kt
Never-exceed speed (Vne): 168 kt 311 km/h311 km/h 168 kt
Range: 512 nm 948 km948 km 512 nm
Service ceiling: 15,000 ft 4,572 m4,572 m 15,000 ft
Rate of climb: 1,930 ft/min 9.8 m/s9.8 m/s 1,930 ft/min

Powerplant

Engine: 2 × Pratt & Whitney Canada PW206C
Engine power: 561 hp 418 kW418 kW 561 hp

Capacity

Seats: 7

ICAO type designator: A109
Type certificate: H7EU
Manufacturer: Agusta
Country: Italy
On the US register: 6
Registered in: Brazil, United States, Germany
Official website: leonardo.com

Improve this page

Add your photos Suggest a correction

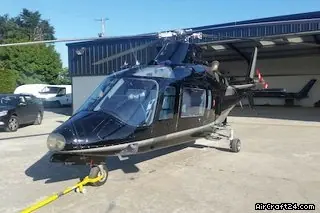

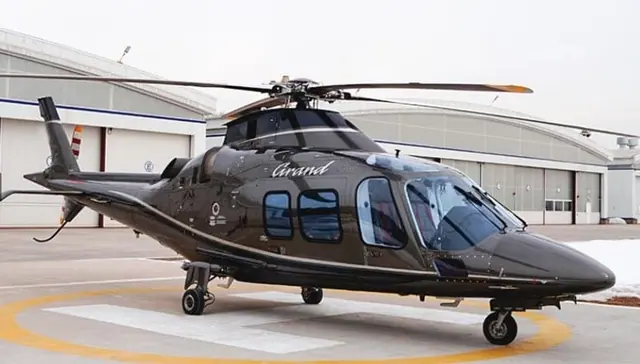

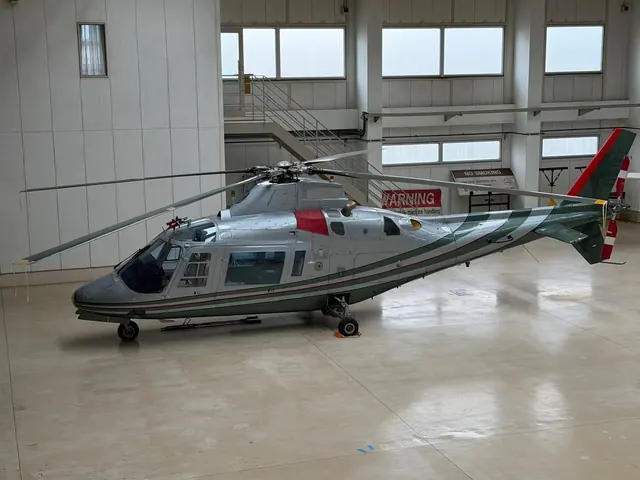

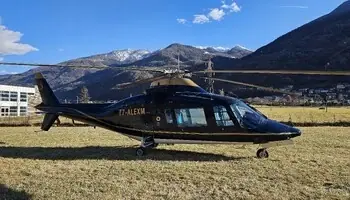

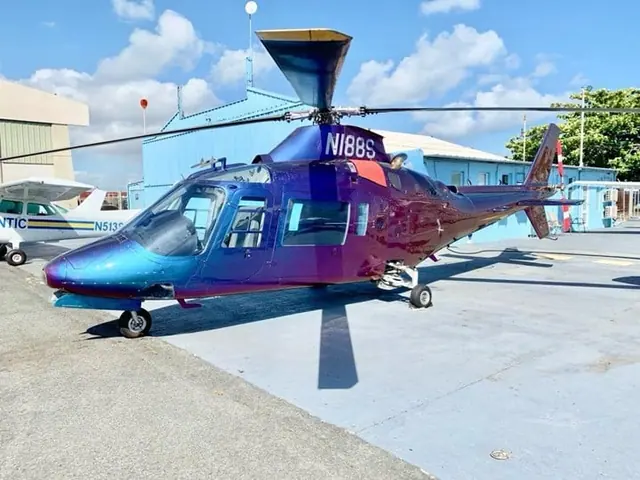

A109A prices

Asking prices of those for sale now, US dollars

Asking prices for the 4 Agusta A109A aircraft for sale with a price run from $68,250 to $380,996, with a median of $350,000. Half ask between $350,000 and $350,000.
