2007 Beechcraft King Air B200 (N223MW)

General

Manufacturer

BEECHCRAFT

Model

KING AIR B200

Serial Number

BB-1967

Condition

Used

Registration #

N223MW

Based at

MAF

Airframe

Total time

7,997

Total Landings

7,024

• Recent Prop Overhaul (C/W 4/25)
• 6-Year Gear Items Completed (C/W 4/25)
• CAMP Maintenance Tracking

Propeller

Prop 1 Manufacturer

HARTZELL

Prop 1 Model

HC-E4N-3G

Prop 1 Time

7998

Prop 2 Manufacturer

HARTZELL

Prop 2 Model

HC-E4N-3G

Prop 2 Time

7998

Number of Blades

4

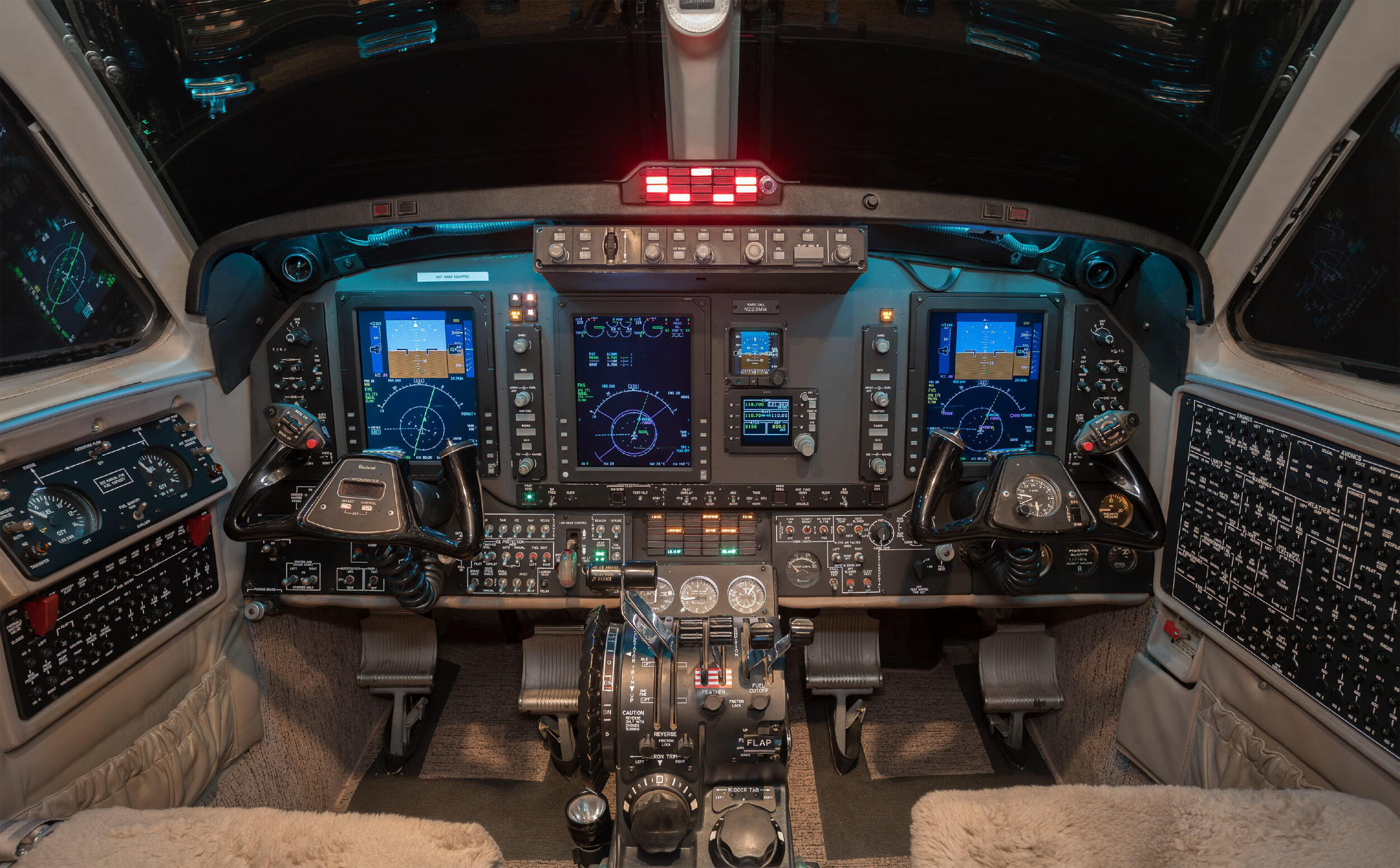

Avionics

Flight Deck Manufacturer/Model

ROCKWELL COLLINS PRO LINE 21

• Integrated Collins Proline 21 Avionics System
• Collins FGC3000 IFCS Autopilot
• Single Collins FMC-3000 Flight Management System
• Collins 3-Tube EFIS
• Collins RTA-852 Radar Receiver/Antenna
• Collins ADC-3000 Air Data Computer
• Collins GPS-4000s GPS
• Dual Collins VHF-4000 COM Transceiver
• Collins NAV-4500 ILS/NAV/ADF Receiver
• DME-4000 Distance Measuring Equipment
• Collins AHC-3000 Attitude Heading Computer
• DB-804 & DB-805 Audio Panel
• Collins AFD-3010 Adaptive Flight Display
• Collins FGP-3000 Flight Guidance Panel
• Collins ALT-4000 Radio Altimeter Receiver
• BF Goodrich Skywatch TRC-899
• Collins RTA-852 Color Radar
• Mode S Transponder: Dual Collins TDR94(D) (ADSB-OUT)
• Artex ELT Emergency Locator Transmitter

Equipment

• Air Conditioning System
• RVSM Capable
• 60hz/110V Outlets

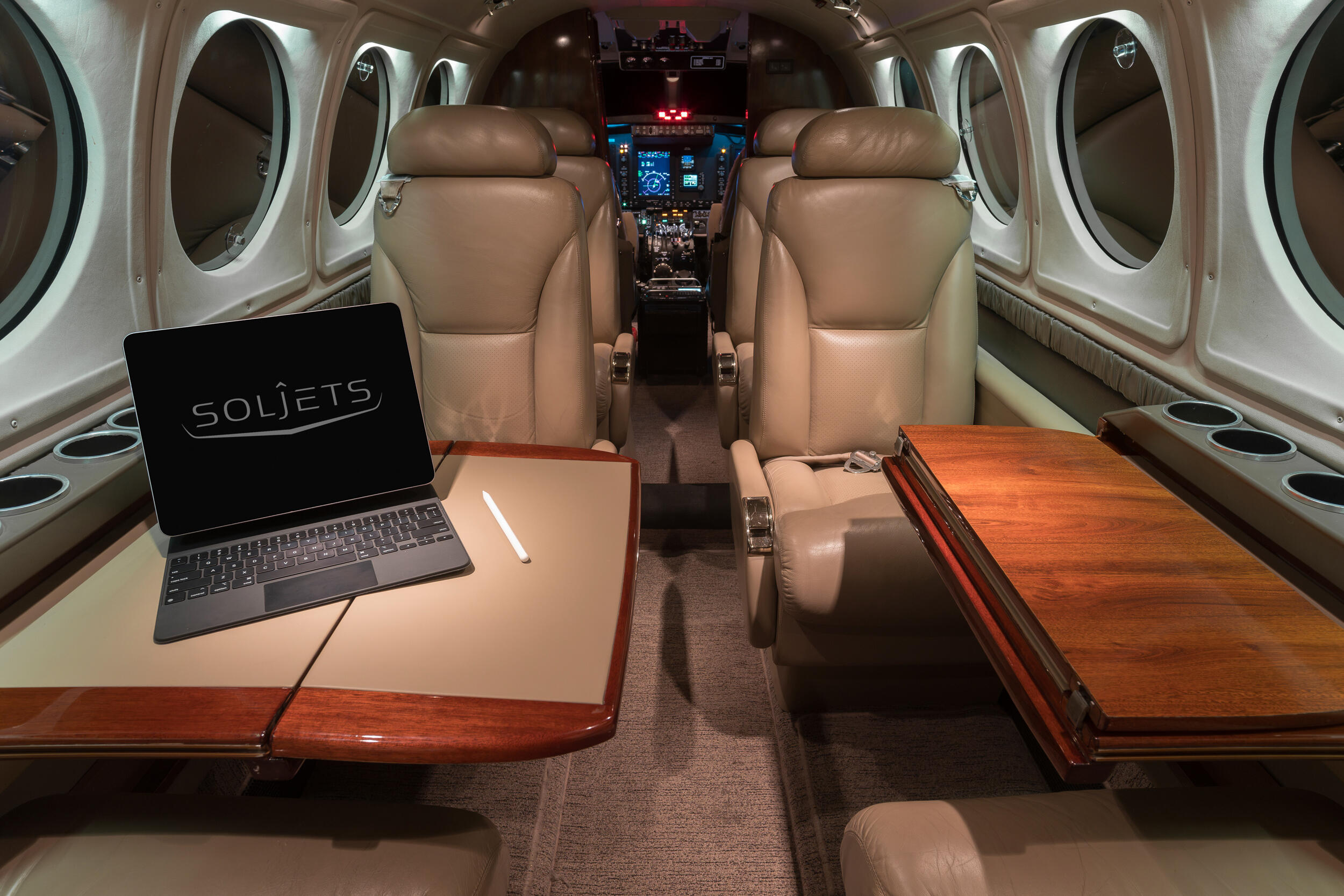

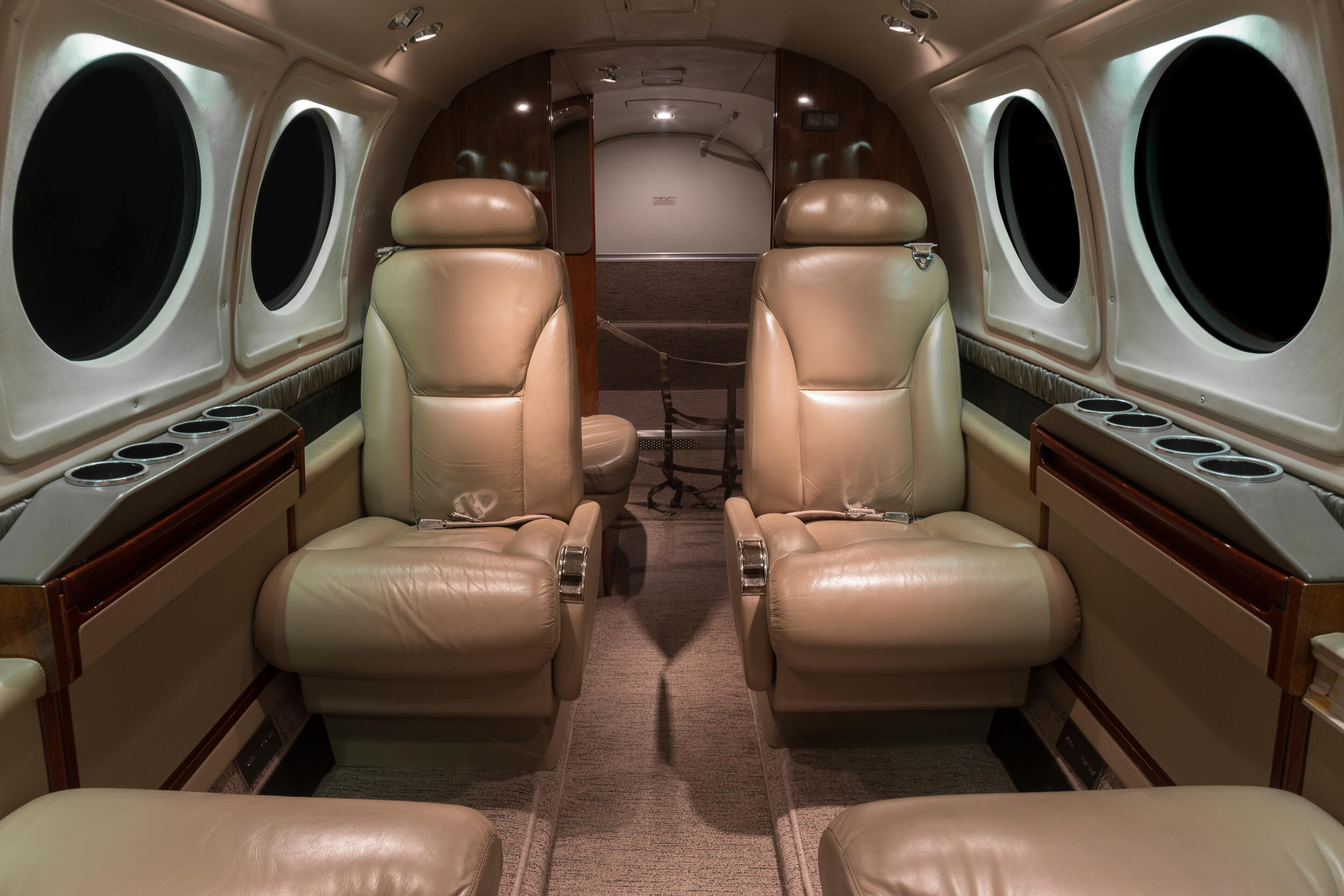

Interior

Number of Seats

7

• Original Seven Passenger Interior Including Six (6) Executive Seats and One (1) Belted Lav

• Interior Completed in Tan Leather Seats with Matching Mahogany Veneer Woodwork

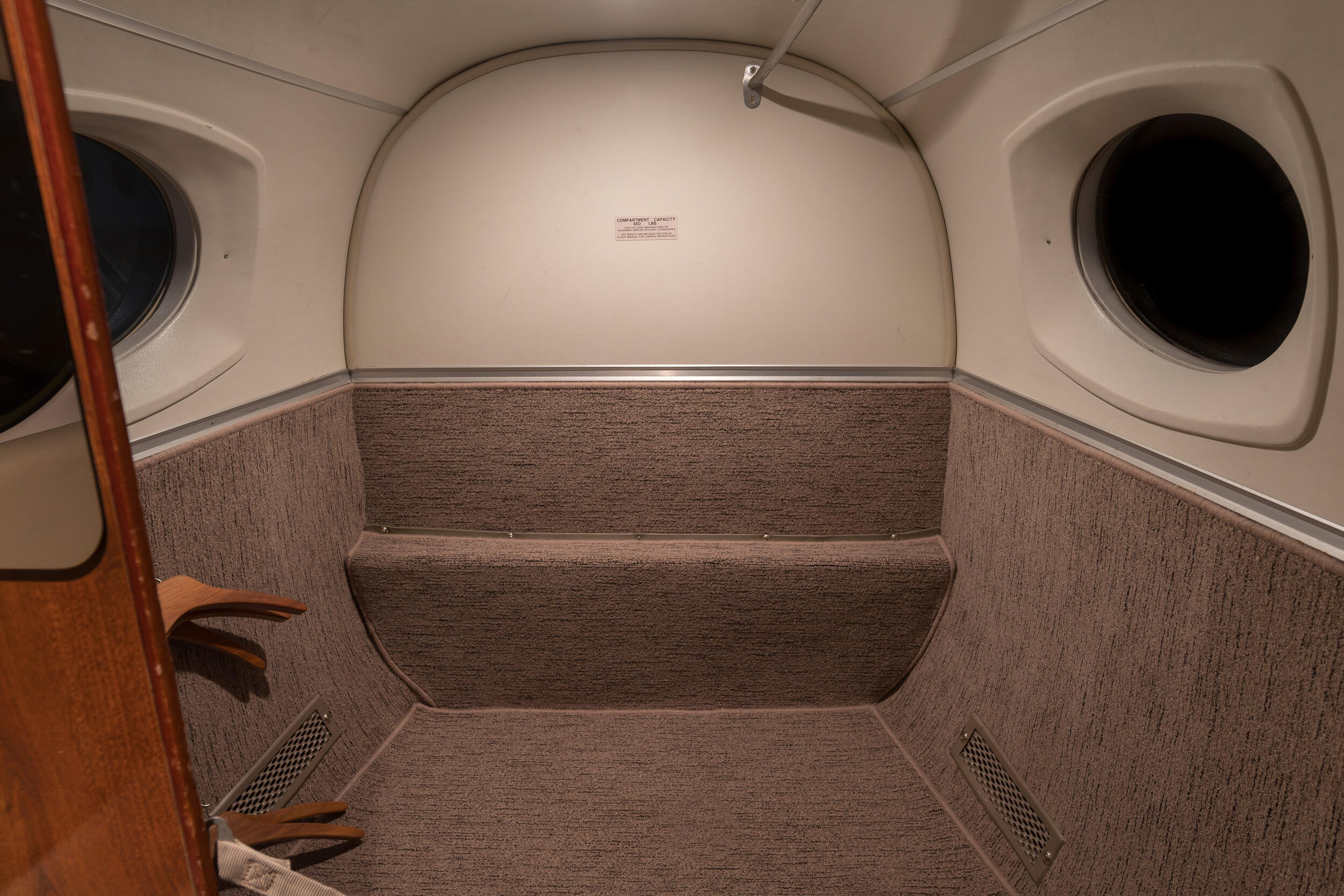

• Chemical Belted Lavatory

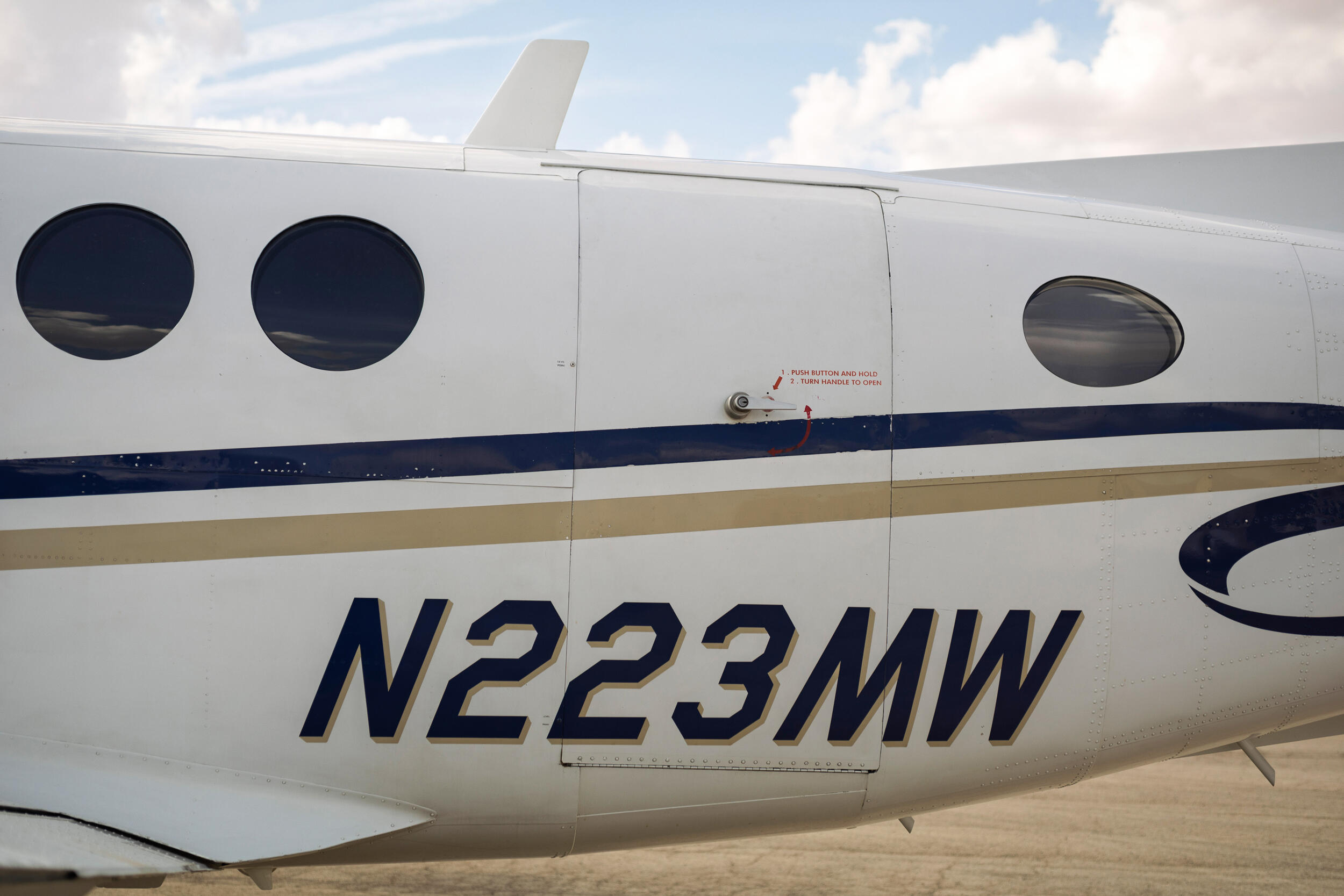

Exterior

• Original Matterhorn White Base Fuselage with Royal Blue and Gold Detailing
• Chrome Propeller Spinner

Maintenance

• Phase 1 C/W 4/25 @ 7,620, Next Due 4/27 or 8,420
• Phase 2 C/W 2/26 @ 7,811, Next Due 2/28 or 8,611
• Phase 3 C/W 9/26 @ 7,915, Next Due 9/28 or 8,715
• Phase 4 C/W 9/24 @ 7,467, Next Due 9/26 or 8,115
• 6-Year Gear Items C/W 4/25 @ 7,620, Next Due 4/31 or 14,694
• Engine 1 - Time Since Overhaul (TSO) ~1,300
• Overhaul C/W 8/22 @ 6,650.1 by Prime Turbines Butler
• 400 Hour Hot Section Borescope C/W 9/26 @ 7,872
• Engine 2 - Time Since Overhaul (TSO) ~800 hours
• Overhaul C/W 12/23 @ 7,061.05 by Prime Turbines Butler
• 400 Hour Hot Section Borescope C/W 9/26 @ 7,771
• Prop Overhaul C/W 4/25 @ 7,620.7 by Lone Star Propellers Midland

Engine 1

Engine 1 Make/Model

PRATT & WHITNEY PT6A-42

Engine 1 Serial Number

PCE-PJ1026

Engine 1 Time

7,954 SNEW

Engine 1 TBO

3600

Engine 1 Cycles

6,930

Engine 2

Engine 2 Make/Model

PRATT & WHITNEY PT6A-42

Engine 2 Serial Number

PCE-PJ1033

Engine 2 Time

7,853 SNEW

Engine 2 TBO

3600

Engine 2 Cycles

6,850
