Aircraft / Pipistrel / Sinus
Pipistrel Experimental & kit · Glider · Slovenia
Sinus
Seats 2 2
Power 80 hp 60 kW
Cruise 108 kt 200 km/h
US register 5 aircraft 5 aircraft

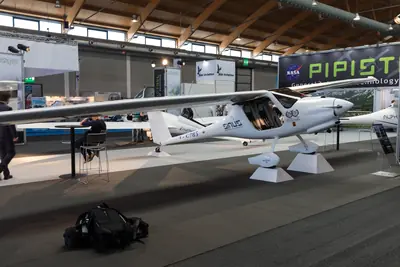

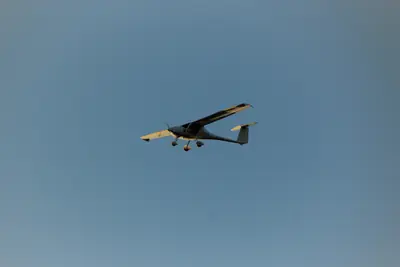

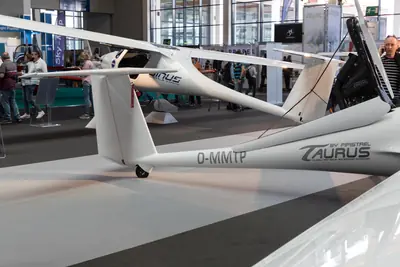

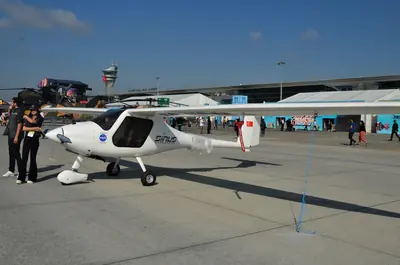

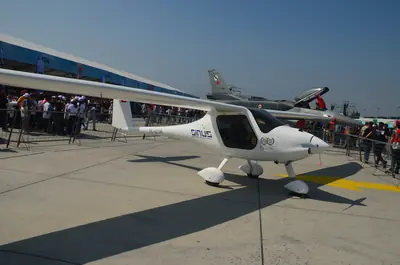

Photo: Ad Meskens · CC BY-SA 4.0 Photo: Matti Blume · CC BY-SA 4.0 Photo: Matti Blume · CC BY-SA 4.0 Photo: CeeGee · CC BY-SA 4.0 Photo: CeeGee · CC BY-SA 4.0 Photo: A.Budz. · CC BY-SA 4.0 Photo: Ad Meskens · CC BY-SA 4.0 Photo: Matti Blume · CC BY-SA 4.0
About the Sinus

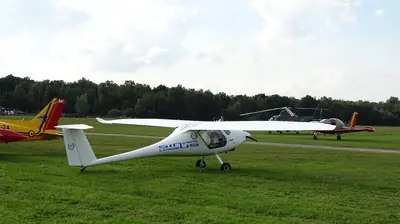

The Pipistrel SINUS is an ultralight motor glider originating from Slovenia and Italy. Suited for recreational soaring and touring, this two-seat, single-engine aircraft features a high-wing cantilever monoplane layout and composite construction.
Conceived through a collaborative effort, the prototype took its first flight in the late twentieth century. The design later served as the foundation for several related family models and variable wingtip options that enable a quick transition between a soaring configuration and a sport cruiser. Throughout its operational history, the type has achieved notable successes in international air games, round-the-world record flights, and transoceanic crossings.
Engines fitted 5 aircraft
Engine Power Share of fleet Aircraft
Rotax 912
80 hp
5
Specifications Sinus 912 · Rotax 912 UL2
US Metric
Dimensions
Length 21 ft 8 in 6.60 m 6.60 m 21 ft 8 in
Wingspan 49 ft 1 in 14.97 m 14.97 m 49 ft 1 in
Wing area 132 sq ft 12.3 m² 12.3 m² 132 sq ft
Weights
Empty weight 628 lb 285 kg 285 kg 628 lb
Max take-off weight 992 lb 450 kg 450 kg 992 lb
Performance
Cruise speed 108 kt 200 km/h 200 km/h 108 kt
Max speed 119 kt 220 km/h 220 km/h 119 kt
Never-exceed speed (Vne) 121 kt 225 km/h 225 km/h 121 kt
Stall speed 36 kt 66 km/h 66 km/h 36 kt
Range 648 nm 1,200 km 1,200 km 648 nm
Service ceiling 28,850 ft 8,800 m 8,800 m 28,850 ft
Rate of climb 1,280 ft/min 6.5 m/s 6.5 m/s 1,280 ft/min
Best glide ratio 27:1
Powerplant
Engine Rotax 912 UL2
Engine power 80 hp 60 kW 60 kW 80 hp
ICAO type designator PISI
On the US register 5
Registered in New Zealand, United States, Canada
2015 · 780 h USD
Low $107,000
Typical $121,000
High $134,000
By year built · United States · USD
Built Hours Low Typical High
2010 650 $98,000 $111,000 $123,000 2015 780 $107,000 $121,000 $134,000 2020 250 $129,000 $146,000 $161,000
By year built · United Kingdom · GBP
Built Hours Low Typical High
2000 600 £55,000 £69,000 £86,000 2005 600 £60,000 £76,000 £95,000 2010 650 £66,000 £83,000 £104,000 2015 650 £73,000 £92,000 £115,000 2020 400 £84,000 £106,000 £132,000
By year built · Euro countries · EUR
Built Hours Low Typical High
2000 600 €65,000 €82,000 €102,000 2005 600 €72,000 €91,000 €113,000 2010 650 €79,000 €100,000 €124,000 2015 650 €87,000 €110,000 €137,000 2020 400 €100,000 €126,000 €157,000
Sinus running costs $169 an hour
A year
Low Typical High
Fuel $3,398 $4,264 $5,018 Oil $64 $80 $104 Engine overhaul reserve $800 $867 $1,167 Annual inspection and maintenance $2,500 $3,500 $4,500 Hangar $3,000 $6,300 $9,600 Insurance $1,055 $1,373 $1,691 Depreciation $254 $507 $761
Total $11,071 $16,891 $22,841
Per hour $111 $169 $228
Engine
Model Rotax 912UL
Power 80 hp
Overhaul 2,000 h / 15 yr
Fuel burn 4.5 – 5.6 gal/h
Fuel price $8.20 /US gal
Value lost a year 0.6%
Pipistrel
2020 Pipistrel Sinus Flex
€37,000 ≈ $41,414
Pipistrel

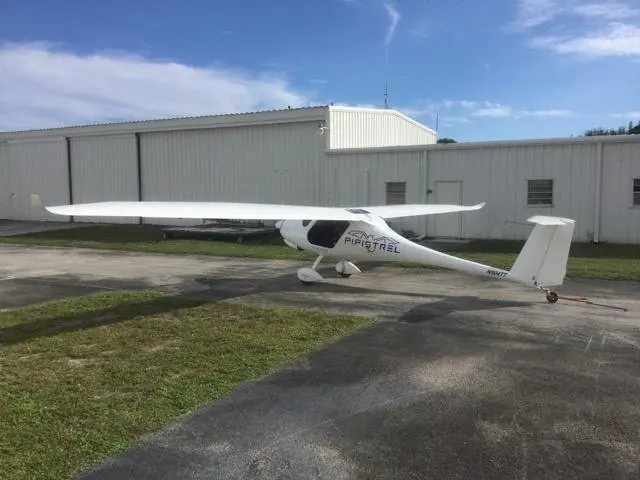

2017 Pipistrel sinus max flex
$69,900
Private seller
Pipistrel

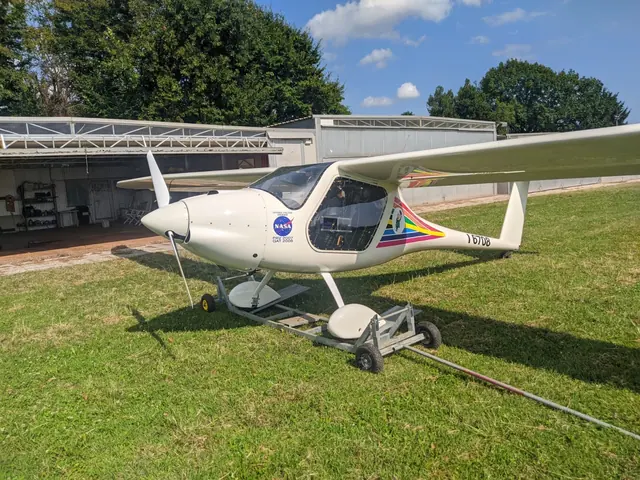

2002 Pipistrel Sinus
€69,000 ≈ $77,232
Dealer
Pipistrel
2006 Pipistrel Sinus,Rotax 912
€69,000 ≈ $77,232
Dealer
Pipistrel

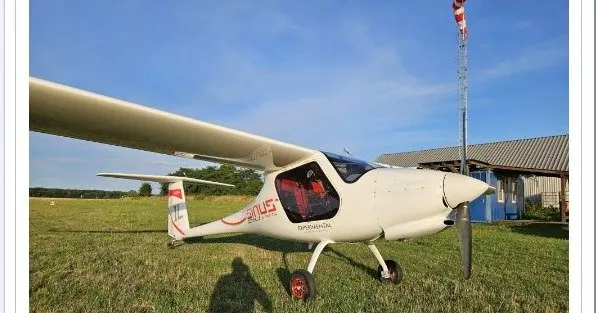

2018 Pipistrel Sinus Max
€70,000 ≈ $78,351
Dealer
Pipistrel

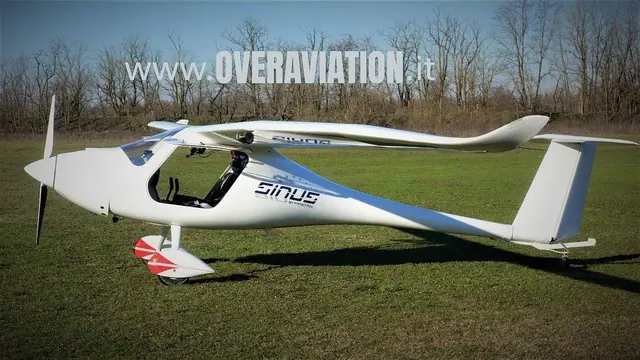

2001 Pipistrel Sinus
