How much does a used Mooney M20 cost?

Name: Mooney M20
Brand: Mooney

Asking prices for the 118 Mooney M20 aircraft for sale with a price run from $3,200 to $326,500, with a median of $115,000. Half ask between $75,000 and $155,000.

PLANEFILE

MooneyCertified · Fixed-wing · United States

M20

Seats: 4 4
Power: 280 hp209 kW
Cruise: 175 kt324 km/h
US register: 23 aircraft23 aircraft

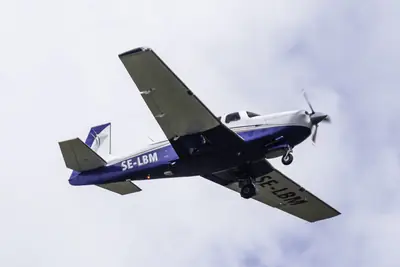

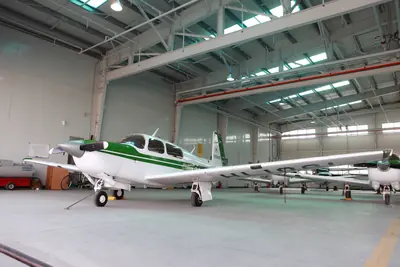

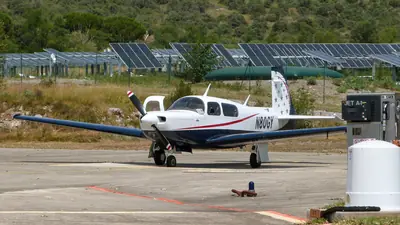

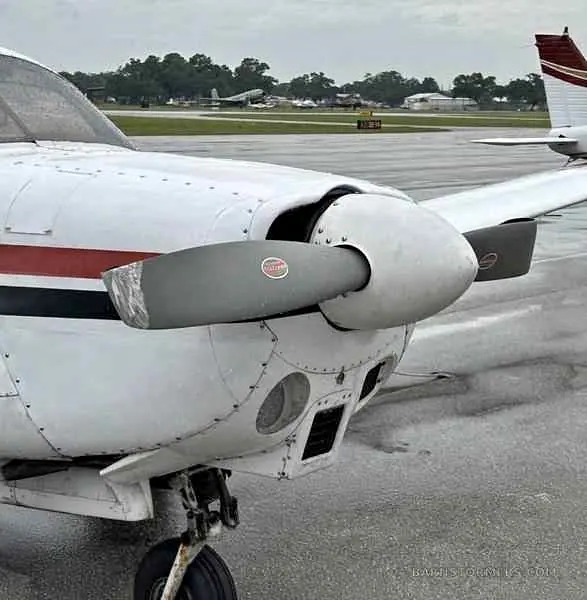

Mooney M20 — Photo: Scott Long · CC BY 3.0Photo: Kakoula10 · CC BY-SA 4.0Photo: Bene Riobó · CC BY-SA 4.0Photo: Kaupr · CC BY-SA 3.0

About the M20

The Mooney M20 is an American single-engine, low-wing, fixed-wing light aircraft featuring a tricycle undercarriage and four seats. Designed as a type-certificated civil utility, it is well-suited for private pilots and touring enthusiasts looking for efficiency and speed.

Al Mooney created the M20 as his twentieth and most enduring project. Over many decades, production went through multiple eras, including early wooden-winged variants that eventually prompted mandatory service directives due to structural rot concerns, leading subsequent versions to adopt an all-metal structure. Following corporate shifts and economic disruptions, production experienced several pauses and revivals under different owners.

Engines fitted

21 aircraft

Engine	Power	Share of fleet	Aircraft
Lycoming O-320	180 hp		14
Lycoming O-360	180 hp		7

This page covers the Mooney M20, M20A, M20A, M20AX, M20B, M20B, M20C, M20C, M20D, M20E, M20F, M20G: the same aircraft under other designations.

Specifications

Continental TSIO-550-G

Dimensions

Length: 26 ft 0 in 7.92 m7.92 m 26 ft 0 in
Wingspan: 36 ft 0 in 10.97 m10.97 m 36 ft 0 in

Weights

Empty weight: 2,380 lb 1,080 kg1,080 kg 2,380 lb
Max take-off weight: 3,368 lb 1,528 kg1,528 kg 3,368 lb

Performance

Cruise speed: 175 kt 324 km/h324 km/h 175 kt
Max speed: 242 kt 448 km/h448 km/h 242 kt
Stall speed: 53 kt 98 km/h98 km/h 53 kt
Range: 1,100 nm 2,037 km2,037 km 1,100 nm
Service ceiling: 25,000 ft 7,620 m7,620 m 25,000 ft

Powerplant

Engine: Continental TSIO-550-G
Engine power: 280 hp 209 kW209 kW 280 hp

Capacity

Seats: 4

ICAO type designator: M20P
Type certificate: US 2A3
Manufacturer: Mooney
Country: United States
First flight: 1953
On the US register: 23
Registered in: United States, Canada
Official website: mooney.com

Improve this page

Add your photos Suggest a correction

M20 prices

33 for sale now

Year built Airframe hours Engine hours since overhaul

1985 · 3,980 h

USD

Low: $143,000
Typical: $171,000
High: $224,000

By year built · United States · USD
Built	Hours	Low	Typical	High
1965	4,160	$87,000	$104,000	$136,000
1970	4,160	$98,000	$117,000	$154,000
1975	4,080	$111,000	$133,000	$174,000
1980	4,210	$126,000	$150,000	$197,000
1985	3,980	$143,000	$171,000	$224,000
1990	2,130	$173,000	$207,000	$271,000
1995	1,750	$200,000	$239,000	$313,000
2000	1,540	$230,000	$274,000	$359,000
2005	1,200	$267,000	$319,000	$418,000

By year built · United Kingdom · GBP
Built	Hours	Low	Typical	High
1965	4,160	£60,000	£78,000	£105,000
1970	4,160	£68,000	£88,000	£119,000
1975	4,150	£77,000	£99,000	£135,000
1980	4,210	£87,000	£112,000	£152,000
1985	3,720	£99,000	£129,000	£174,000
1990	2,280	£119,000	£154,000	£208,000
1995	1,800	£138,000	£178,000	£241,000
2000	1,540	£158,000	£205,000	£278,000
2005	1,200	£184,000	£238,000	£323,000

By year built · Euro countries · EUR
Built	Hours	Low	Typical	High
1965	4,160	€64,000	€82,000	€111,000
1970	4,160	€72,000	€93,000	€126,000
1975	4,150	€81,000	€105,000	€142,000
1980	4,210	€92,000	€119,000	€161,000
1985	3,720	€105,000	€136,000	€184,000
1990	2,280	€126,000	€163,000	€220,000
1995	1,800	€146,000	€189,000	€256,000
2000	1,540	€168,000	€217,000	€294,000
2005	1,200	€195,000	€252,000	€342,000

M20 running costs

$258 an hour

Hours a year Aircraft value (USD)

A year
	Low	Typical	High
Fuel	$6,191	$7,954	$9,229
Oil	$144	$180	$234
Engine overhaul reserve	$2,167	$2,667	$4,833
Annual inspection and maintenance	$2,500	$3,500	$4,500
Hangar	$3,000	$6,300	$9,600
Insurance	$1,335	$1,715	$2,095
Depreciation	$1,765	$3,531	$5,296

Total	$17,102	$25,847	$35,787
Per hour	$171	$258	$358
