Aircraft / Mooney / M-20K Encore
Mooney Certified · Fixed-wing · United States
M-20K Encore
Seats 4 4
Power 280 hp 209 kW
Cruise 175 kt 324 km/h
US register 764 aircraft 764 aircraft
Photo: Huhu Uet · CC BY 3.0 Photo: contri from Yonezawa, Yamagata, Japan · CC BY-SA 2.0 Photo: Matti Blume · CC BY-SA 4.0 Photo: Matti Blume · CC BY-SA 4.0 Photo: Matti Blume · CC BY-SA 4.0
About the M-20K Encore

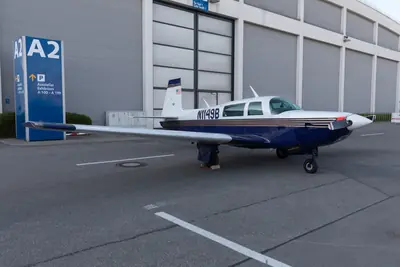

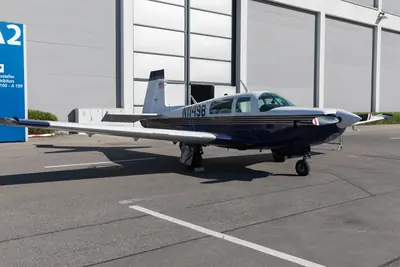

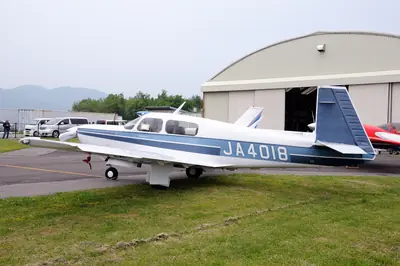

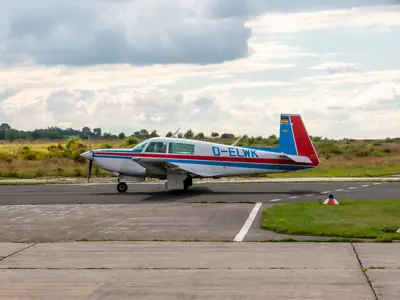

The Mooney M-20K Encore is a fixed-wing, type-certificated aircraft designed in the United States. It functions as a four-seat, single-engine transport featuring a low-wing configuration and retractable landing gear, making it well-suited for personal travel and cross-country touring.
Originating as the twentieth design by Al Mooney, the series first flew in nineteen fifty-three. Early variants utilized wooden wing structures, which were later replaced with metal due to maintenance issues, though the metal-skinned fuselage combined a steel-tube cabin structure with a semi-monocoque aft section. Across multiple decades and several production interruptions, thousands of aircraft in the M20 family have been manufactured.
Engines fitted 675 aircraft
Engine Power Share of fleet Aircraft
Continental TSIO-360
225 hp
660
Continental TSIO-520
300 hp
11
Continental O-200
100 hp
4
Specifications Continental TSIO-550-G
US Metric
Dimensions
Length 26 ft 0 in 7.92 m 7.92 m 26 ft 0 in
Wingspan 36 ft 0 in 10.97 m 10.97 m 36 ft 0 in Weights
Empty weight 2,380 lb 1,080 kg 1,080 kg 2,380 lb
Max take-off weight 3,368 lb 1,528 kg 1,528 kg 3,368 lb Performance
Cruise speed 175 kt 324 km/h 324 km/h 175 kt
Max speed 242 kt 448 km/h 448 km/h 242 kt
Stall speed 53 kt 98 km/h 98 km/h 53 kt
Range 1,100 nm 2,037 km 2,037 km 1,100 nm
Service ceiling 25,000 ft 7,620 m 7,620 m 25,000 ft Powerplant
Engine Continental TSIO-550-G
Engine power 280 hp 209 kW 209 kW 280 hp
ICAO type designator M20T
Type certificate US 2A3
On the US register 764
Registered in Brazil, Australia, United States, Canada
1985 · 3,020 h USD
Low $150,000
Typical $168,000
High $190,000
By year built · United States · USD
Built Hours Low Typical High 1975 3,440 $109,000 $122,000 $138,000 1980 3,020 $128,000 $143,000 $162,000 1985 3,020 $150,000 $168,000 $190,000 1990 2,740 $176,000 $197,000 $223,000 1995 1,180 $207,000 $231,000 $261,000
By year built · United Kingdom · GBP
Built Hours Low Typical High 1975 3,180 £73,000 £94,000 £120,000 1980 3,150 £86,000 £110,000 £141,000 1985 3,020 £101,000 £129,000 £166,000 1990 2,740 £118,000 £151,000 £194,000 1995 1,180 £139,000 £178,000 £228,000
By year built · Euro countries · EUR
Built Hours Low Typical High 1980 3,190 €88,000 €112,000 €144,000 1981 3,190 €91,000 €116,000 €149,000 1982 3,190 €93,000 €120,000 €154,000 1983 4,180 €97,000 €123,000 €159,000 1985 2,090 €103,000 €132,000 €169,000 1986 2,090 €106,000 €136,000 €175,000 1987 2,090 €110,000 €140,000 €180,000
By year built · Elsewhere · USD
Built Hours Low Typical High 1979 3,500 $115,000 $128,000 $145,000 1980 3,500 $118,000 $132,000 $149,000 1981 3,500 $122,000 $137,000 $154,000
M-20K Encore running costs $343 an hour
A year
Low Typical High
Fuel $7,701 $9,922 $11,558 Oil $180 $225 $292 Engine overhaul reserve $4,583 $5,417 $8,842 Propeller overhaul reserve $917 $1,083 $1,250 Annual inspection and maintenance $3,000 $4,000 $5,000 Hangar $3,000 $6,300 $9,600 Insurance $1,641 $2,089 $2,537 Depreciation $2,649 $5,297 $7,946 Total $23,671 $34,333 $47,025 Per hour $237 $343 $470
Engine
Model Continental TSIO-360-LB
Power 225 hp
Overhaul 2,000 h / 12 yr
Fuel burn 10.2 – 12.9 gal/h
Fuel price $8.20 /US gal
Value lost a year 3.6%
Mooney
1979 Mooney M20K 231
$95,000
1979 · 3,253 h · United States
Dealer
Mooney

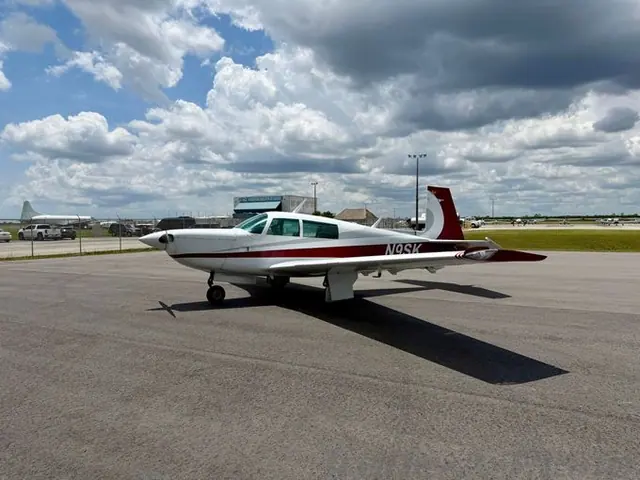

1981 Mooney M20K 231
