How much does a used Grumman American Aviation AA-1A cost?

Name: Grumman American Aviation AA-1A
Brand: Grumman American Aviation

PLANEFILE

Grumman American AviationCertified · Fixed-wing · United States

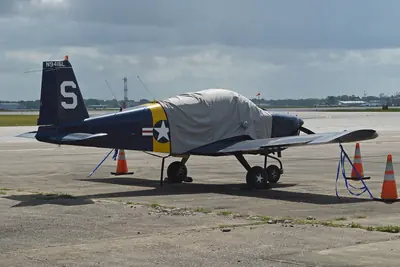

AA-1A

Seats: 2 2
Power: 108 hp81 kW
Cruise: 109 kt201 km/h
US register: 203 aircraft203 aircraft

About the AA-1A

The American Aviation AA-1A is a fixed-wing, type-certificated aircraft built by American Aviation. This light model offers seating for two occupants and is powered by a single flat-four engine, serving as part of a well-known family of personal training and touring machines.

Initial design work was carried out as a kit-built project before shifting toward a fully certified production model featuring folding wings for storage convenience. Regulatory reluctance toward folding wing designs, coupled with expensive certification requirements and internal business disputes among stakeholders, prompted management changes and a renaming of the manufacturing entity.

Engines fitted

197 aircraft

Engine	Power	Share of fleet	Aircraft
Lycoming O-235	115 hp		196
Lycoming O-320	180 hp		1

Specifications

AA-1A · Lycoming O-235-C2C

Dimensions

Length: 19 ft 3 in 5.87 m5.87 m 19 ft 3 in
Wingspan: 24 ft 6 in 7.46 m7.46 m 24 ft 6 in
Wing area: 98 sq ft 9.1 m²9.1 m² 98 sq ft

Weights

Empty weight: 1,016 lb 461 kg461 kg 1,016 lb
Max take-off weight: 1,499 lb 680 kg680 kg 1,499 lb

Performance

Cruise speed: 109 kt 201 km/h201 km/h 109 kt
Max speed: 120 kt 222 km/h222 km/h 120 kt
Never-exceed speed (Vne): 170 kt 314 km/h314 km/h 170 kt
Stall speed: 52 kt 97 km/h97 km/h 52 kt
Range: 424 nm 785 km785 km 424 nm
Service ceiling: 13,750 ft 4,191 m4,191 m 13,750 ft
Rate of climb: 770 ft/min 3.9 m/s3.9 m/s 770 ft/min

Powerplant

Engine: Lycoming O-235-C2C
Engine power: 108 hp 81 kW81 kW 108 hp

Capacity

Seats: 2

ICAO type designator: AA1
Manufacturer: Grumman American Aviation
Country: United States
On the US register: 203
Registered in: United Kingdom, Australia, United States, Canada
Official website: gulfstream.com

Improve this page

Add your photos Suggest a correction

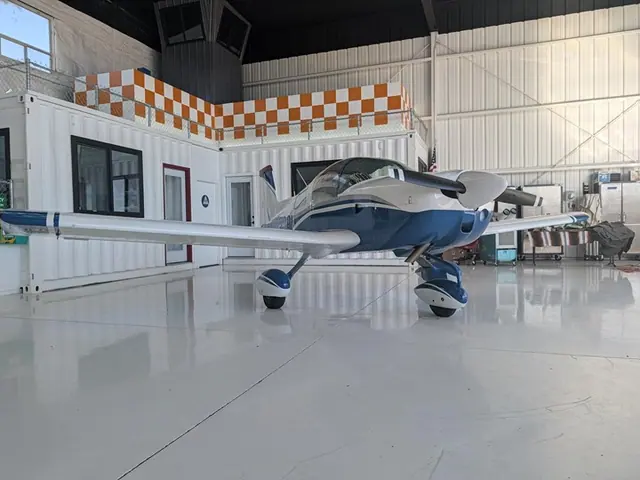

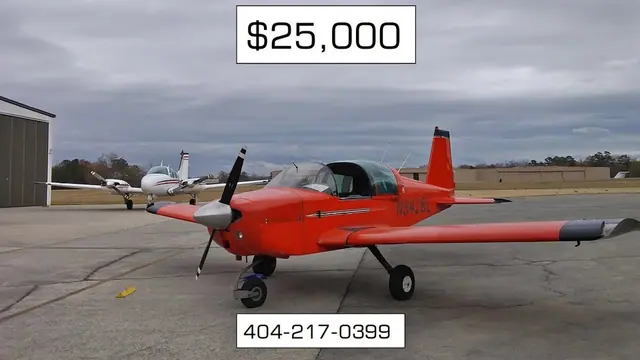

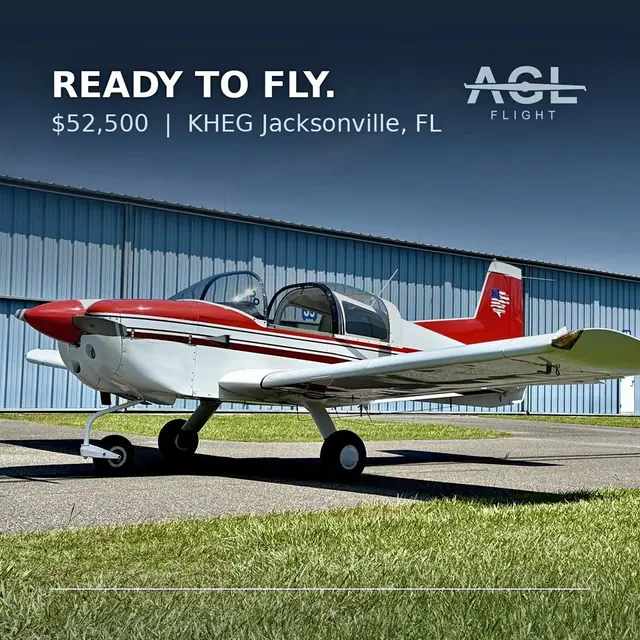

AA-1A prices

Asking prices of those for sale now, US dollars

Asking prices for the 4 Grumman American Aviation AA-1A aircraft for sale with a price run from $25,000 to $89,900, with a median of $51,200. Half ask between $50,000 and $52,500.

AA-1A running costs

$187 an hour

Hours a year Aircraft value (USD)

A year
	Low	Typical	High
Fuel	$3,926	$5,084	$5,914
Oil	$92	$115	$149
Engine overhaul reserve	$2,167	$2,667	$4,833
Annual inspection and maintenance	$2,500	$3,500	$4,500
Hangar	$3,000	$6,300	$9,600
Insurance	$761	$1,013	$1,266

Total	$12,446	$18,679	$26,262
Per hour	$124	$187	$263
