BrantlyCertified · Rotorcraft · United States
305
- Seats
- 5 5
- Power
- 305 hp227 kW
- Cruise
- 96 kt177 km/h
- US register
- 1 aircraft1 aircraft
About the 305

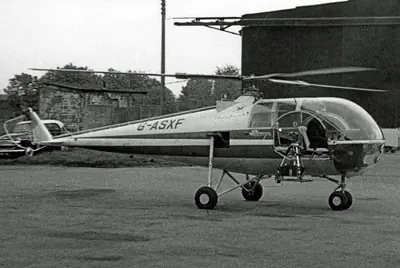

The Brantly 305 is an American type-certificated rotorcraft designed as a light helicopter capable of carrying five people. Developed as a larger derivative of a previous two-seat model, it features a single piston engine and an expanded cabin layout with side-by-side forward seating alongside a rear bench.
Following its initial flight in the mid-sixties, the aircraft obtained type approval shortly thereafter. Modest numbers were constructed during its initial production run, with subsequent attempts by later enterprises to introduce improved or more powerful versions resulting in very few additional completions or remaining unbuilt prototypes.
Engines fitted
1 aircraft| Engine | Power | Share of fleet | Aircraft |
|---|---|---|---|
| Lycoming VO-540 | 310 hp | 1 |
305 running costs
$293 an hour| Low | Typical | High | |
|---|---|---|---|
| Fuel | $10,645 | $13,694 | $15,949 |
| Oil | $248 | $310 | $403 |
| Engine overhaul reserve | $3,333 | $3,958 | $5,192 |
| Propeller overhaul reserve | $917 | $1,083 | $1,250 |
| Annual inspection and maintenance | $3,000 | $4,000 | $5,000 |
| Hangar | $3,000 | $6,300 | $9,600 |
| Total | $21,143 | $29,345 | $37,394 |
| Per hour | $211 | $293 | $374 |
Engine
- Model
- Lycoming VO-540
- Power
- 310 hp
- Overhaul
- 1,200 h / 12 yr
- Fuel burn
- 14.1 – 17.8 gal/h
- Fuel price
- $8.20 /US gal
