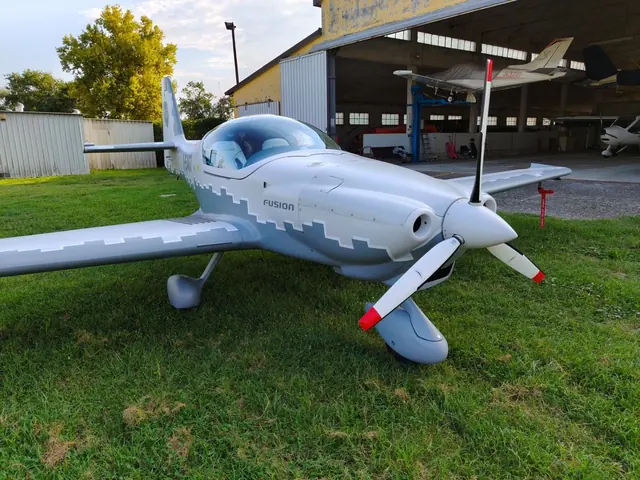

2023 New Magnus Aircraft Fusion UL Ultralight

Description

Airframe

Thanks to the composite structure & aerofoil design, the aircraft is both extremely resistant & easily manoeuvrable. The composite airframe & the symmetrical aerofoil allows the aircraft to manoeuvre safely & dynamically. Due to the technology & design of the airframe, fuel consumption is extremely low, with only 16-21 litres of 95 octane unleaded petrol per hour of flight.

Weight

Max Baggage Weight – 20 kg/45 lbs

Max take-off Weight – 600 kg / 1323 lb

Dimension

Wingspan – 8,44 m / 27.69 ft

Length – 6,62 m / 21.7 ft

Height – 2,40 m / 7.87 ft

Cabin Width – 1,17 m / 3.84 ft

Engine

First of all, during the flight there must be a perfect harmony between the pilot & the aircraft. For this reason, we offer our aircraft with Rotax & ULPower engines. While the Rotax engine is widely known for its reliability & economical, journey-friendly operation, the ULPower engine is renowned for its dynamic, & powerful performance. Either flying technique you perform, your chosen propulsion system will support you.

Manufacturer – Rotax / ULPower

Model – 912-915 IS, ULS / 260-350 iSA

Horsepower – 100 hp – 141 hp

Performance

Take-off distance – 150-250 m / 492-820 ft

Climb Rate – 4,5-6 m/s / 900-1200 ft/min

Max operating Altitude – 3650 m / 12000 ft

Stall Speed with Flaps – 83 km/h / 45 kts CAS (LDG Config.)

Max Cruise Speed – 214-256 km/h 116-122 kts TAS

Fuel Consumption – 16-21 l/hr / 4.2-5.4 gal/hr

Propeller

Your Fusion UL aircraft can be fitted with a ground or mid-flight adjustable propeller, depending on the propulsion system combination you choose.

Safety

Safety comes first, which is why a ballistic parachute system is an essential part of the standard equipment of our Fusion aircraft. The highest degree of safety apparatus is fixed at two points in front of the cabin & one point behind the cabin.

Interior / Exterior

A suit looks perfect when it is tailored to you. Why should it be different from your custom-made aircraft? With your customised Fusion UL aircraft, we guarantee not only our premium services, but also a personal consultation with our design team when we design your aircraft in accordance with your ideas necessary to create its satisfactory comfort & the exquisite appearance. Our uniquely designed interior & exterior designs are made from first-class materials, with painted or foiled exteriors to fit your aircraft like a suit tailored to you.

Cabin

The surprisingly wide cockpit has been designed to provide the perfect harmony of comfort & safety, while its detail & unity reflect your style. The choice is yours: first-class composite, plastic, metal, textile or even leather upholstery from the most sophisticated selection.

Canopy

Either you are looking at the sky or the ground through the wide panoramic canopy, we guarantee you will feel as safe as possible in your Fusion UL aircraft. The specially moulded acrylic glasses are manufactured to the highest quality standards with an UV transmittance of less than 1%.

Seats

The Fusion UL seats are designed for comfort, persistency & endurance. Feel free to test us, & enjoy your passion in the greatest comfort, encompassed by safety belts fixed at four different points.

Ventilation & Heating

The modern ventilation & heating system ensures the ideal temperature for travelling, regardless of the season or altitude.

Instrument Panel

When designing your instrument panel, you can choose from a range of convenient & functional layout options, as well as a selection of convenience accessories to match your field of use.

Baggage Compartment

With a capacity of 20 kilograms & 150 litres of luggage space, you can fit all yours’s & your passenger’s essential belongings.

Personalised Services

The Fusion UL aircraft is more than a product of excellent material quality & design. Our premium services provide, maintain, & support the inseparable relationship between you, & your aircraft on the long run. You can count on our full support from the very beginning, from the first step to delivery, & beyond, including, but not limited to, finding dynamic financial conditions, certification support, constant availability of our design team, personal after-sales service & time-critical parts supply to meet your needs & schedule.
