2009 Beechcraft Beech King Air B200

General

Manufacturer

BEECHCRAFT

Model

KING AIR B200

Serial Number

BB-2002

Condition

Used

Registration #

F-ONAA

Airframe

Total time

11,127

Total Landings

17,405

The Beechcraft B200 Medical is a twin-turboprop aircraft specially configured for aeromedical evacuation (MEDEVAC) missions. Renowned for its reliability, versatility, and performance, it can operate from short and even unprepared airstrips, making it ideal for emergency and remote-area missions.

In its medical configuration, the B200 typically includes:

• One or two stretcher systems,

• Advanced life-support equipment and patient monitoring,

• Space for medical personnel and equipment,

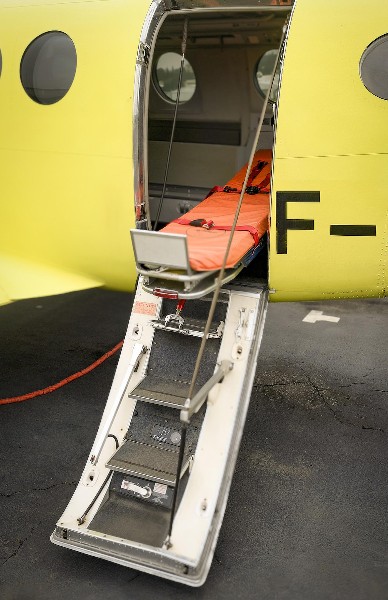

• A large door for easy patient loading.

With a cruise speed of approximately 270 knots (500 km/h) and excellent range, the B200 Medical offers fast, safe, and comfortable transport for critically ill or injured patients. Used by governments, medical operators, and humanitarian organizations worldwide, the B200 remains a benchmark in the air ambulance sector.

Propeller

Prop 1 Manufacturer

HARTZELL

Prop 1 Model

HC-D4N-3A

Prop 1 Time

1169 SOH

Prop 2 Time

1152 SOH

LH

Next Overhaul due Sept-2028

RH

Next Overhaul due Nov-2025

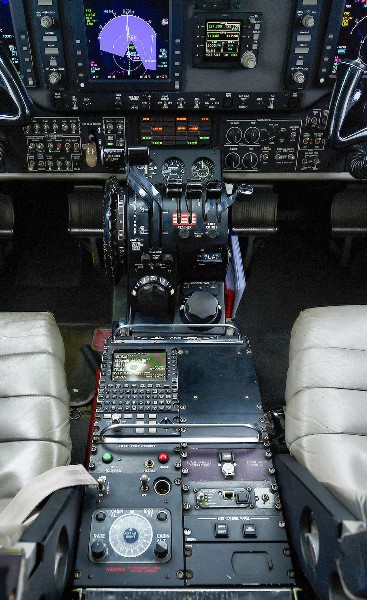

Avionics

Flight Deck Manufacturer/Model

ROCKWELL COLLINS PRO LINE 21

• Dual VHF-4000 (8.33) Coms
• Single NAV-4000/4500
• Single NAV-4000 ADF
• Single DME-4000
• Dual TDR-94 (Mode S) Transponders
• Single ALT-4000 Radio Altimeter
• Single L3 FA-2100 CVR
• Single TWR-850 Radar
• Single FGC-3000 Flight Director / Auto Pilot
• Dual AHC-3000 AHRS
• Single FMS-3000
• Single TCAS-4000 (TCAS II)
• Single GPS-4000A GPS
• Single ACSS TAWS+
• Single IFIS w/ECH-5000
• RVSM Capable

Equipment

Ram Air Recovery System

Yes

High Flotation Gear Doors

Yes

Enhanced Performance Leading Edges

Yes

Raisbeck Performance Enhancements

Installation of Raisbeck ram air recovery system (SA3366NM)

• Installation of Aerolite B200 Medical interior kit (STC EASA 10029101)
• King Air B200 Steep Approach capability (STC EASA 10056573)
• ICA for Collins Proline 21 avionics qualified for RVSM
• Installation of Raisbeck fully enclosed high flotation gear door system(SA4175NM)
• Installation of Raisbeck/Hartzell quiet turbofan propeller system(SA2698NM-S)
• Installation of Raisbeck enhanced performance leading edge system (SA3831NM)
• Installation of BLR WINGLETS (STC SA01615SE)
• Installation of Aircraft data acquisition system ADAS+ (STC SA00171BO)
• Installation of L3-Communication MADRAS-CDVR (STC SA10478SC)
• Installation kit led light upgrade Taxi & Landing EASA 10055183 rev1 (STC SA02279AT)

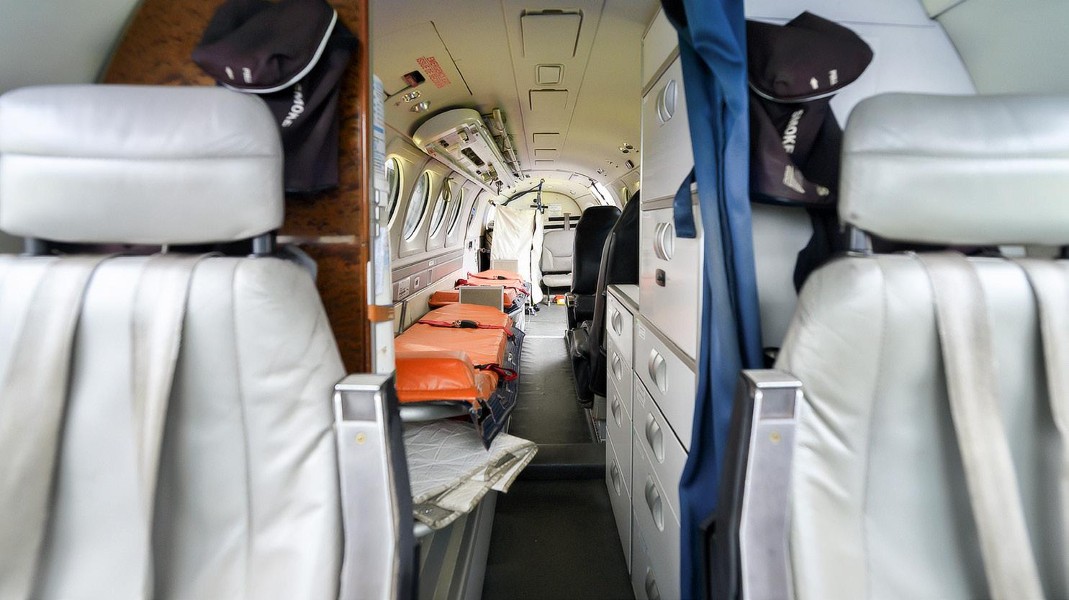

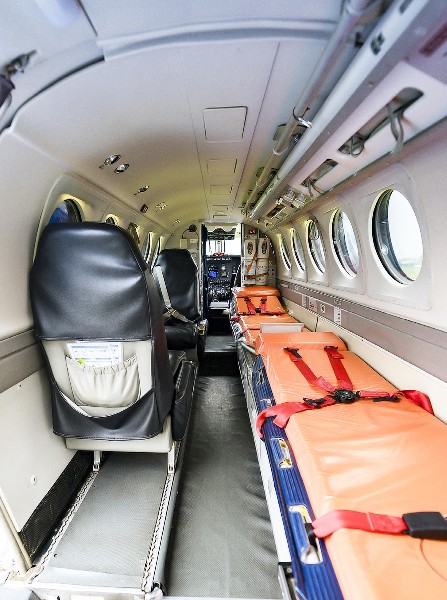

Interior

• MEDICAL INTERIOR (Aerolite)

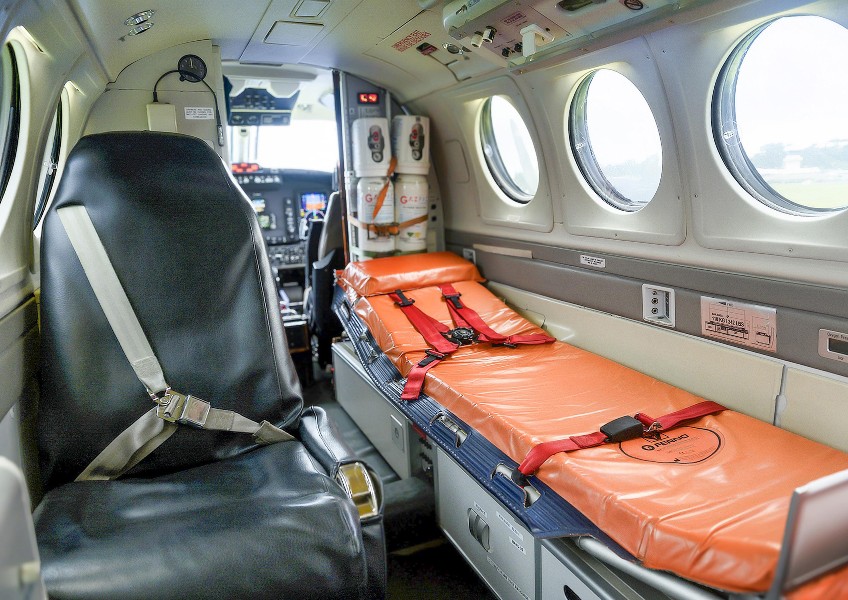

• Stretcher unit (aft)
• Medical air unit - aft
• Aerolite ceiling unit

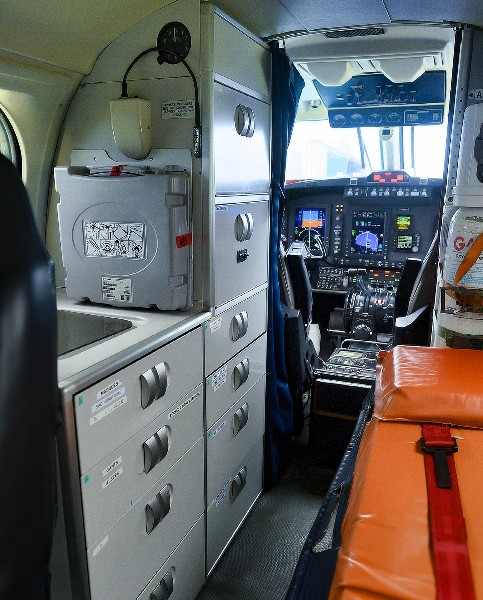

• Aerolite forward cabinet (without contents)

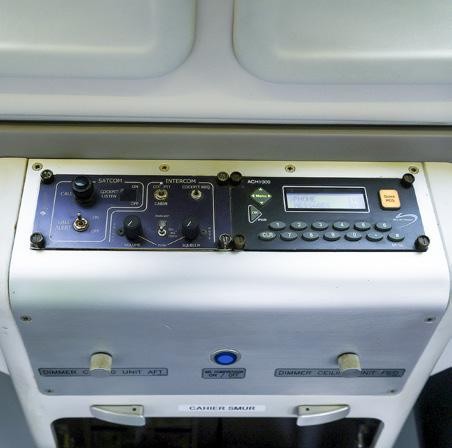

• Crew console unit
• Floor protection installation
• Side wall installation
• Mattress - aft compartment

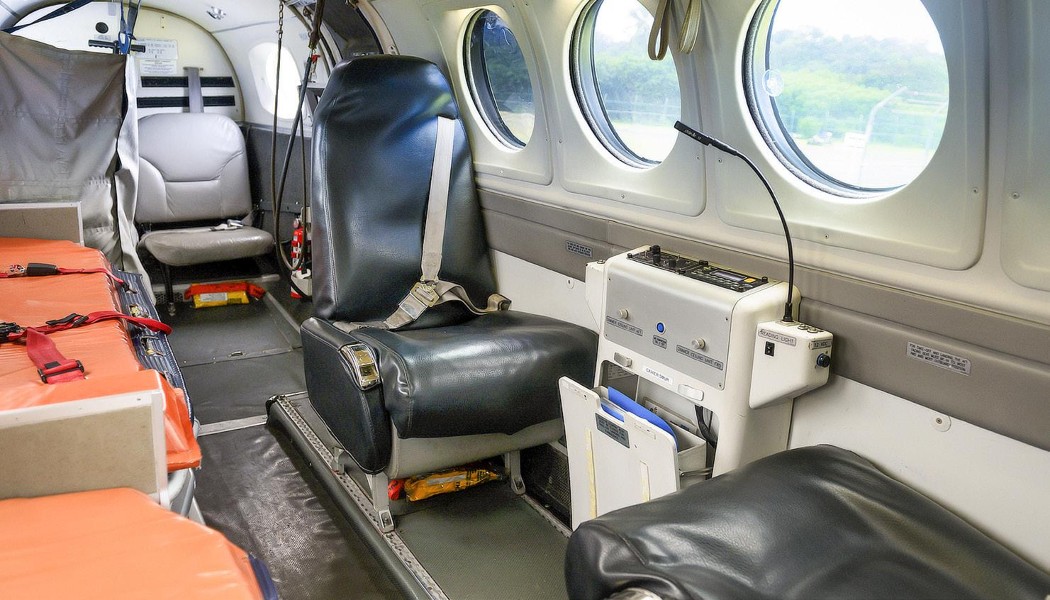

• Cabin seat with harness - aft
• Cabin seat with harness - forward
• Jump seat - aft compartment
• Outlet unit - aft bulkhead
• Equipment rack
• Baggage compartment net

• Smoke hood (IRE)
• Life vest under crew seat (TO200-25-086)
• Life vests in aft pressurized bulkhead
• Night stop equipment

• Raisbeck POH
• Floor-mounted brackets and attachment points
• Var. small items associated w/ the Aerolite installation

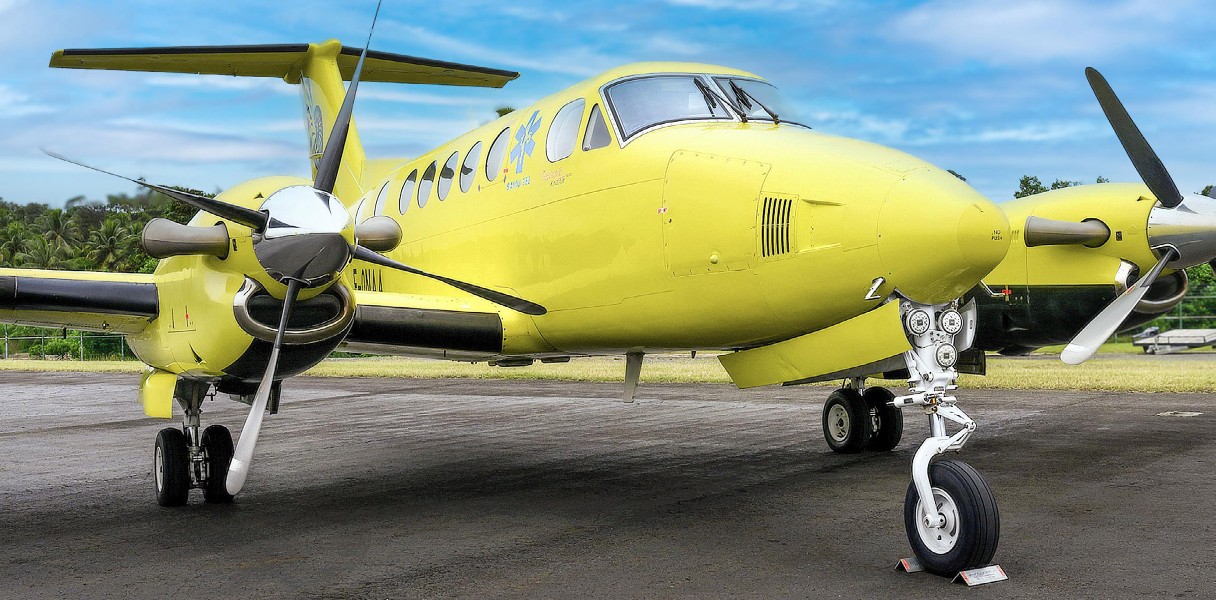

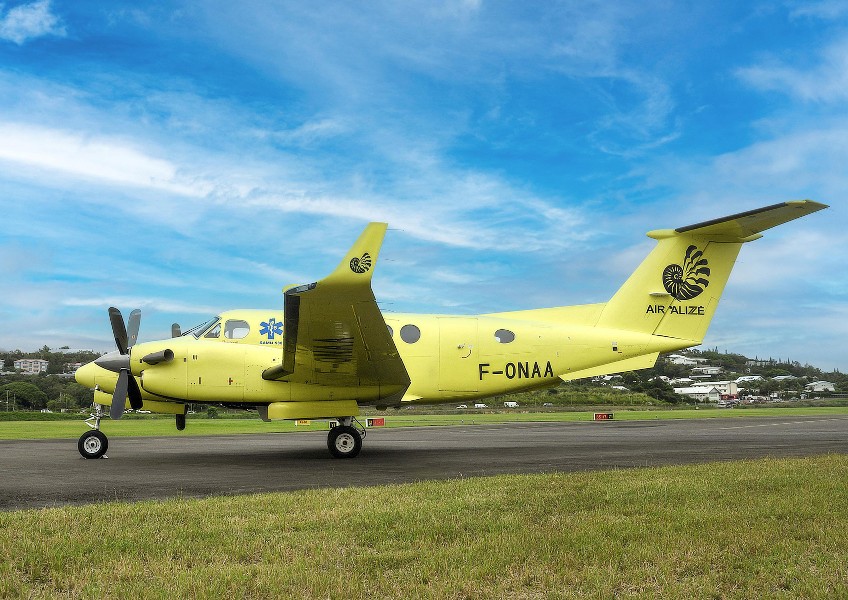

Exterior

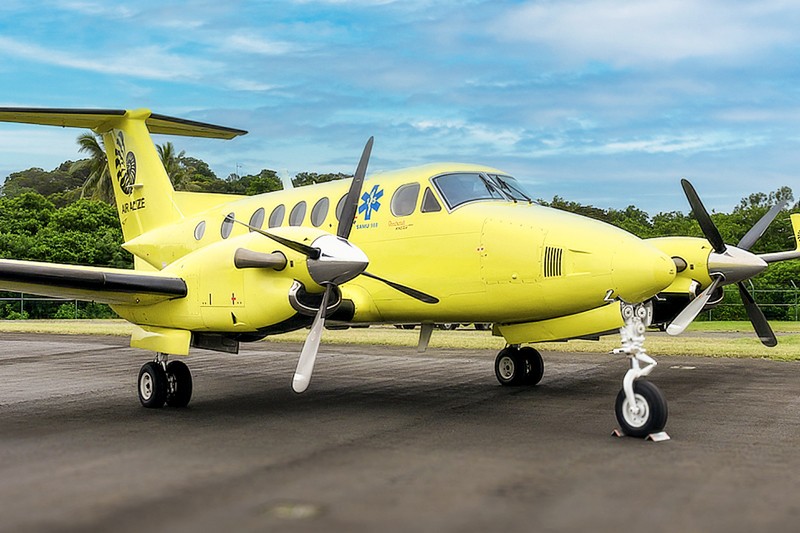

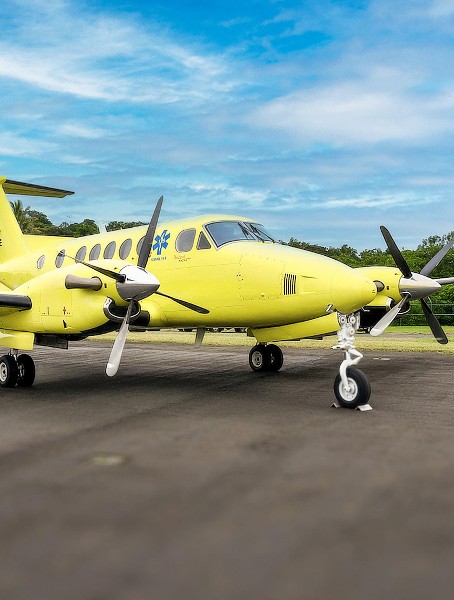

Yellow with custom company logos

Description

Key Features

• Engine #2 Freshly Overhauled

Engine 1

Engine 1 Make/Model

PRATT & WHITNEY PT6A-42

Engine 1 Serial Number

PCE-PJ0873

Engine 1 Time

1,169 SOH

Engine 1 TBO

3500

Engine 2

Engine 2 Serial Number

PCE-PJ1183

Engine 2 Time

202 SOH

Engine 2 TBO

3600

Registration

Registration

F-ONAA

Registered as

Hawker Beechcraft Corporation BEECH B200

Serial number

BB-2002

Accidents and incidents

None on record
