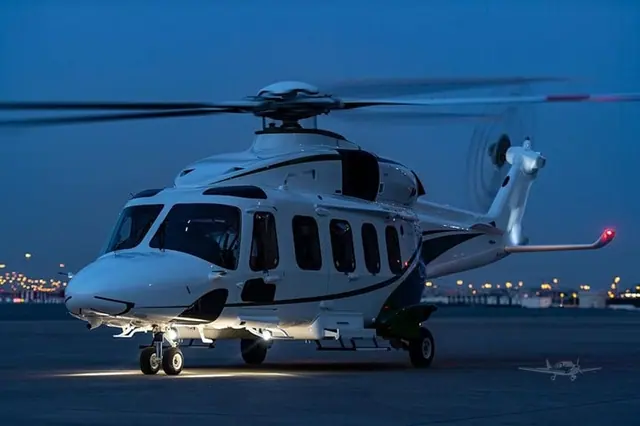

2025 Leonardo AW189

General

Manufacturer

LEONARDO

Model

AW189

Serial Number

L-1309

Condition

New

Flight Rules

IFR

Airframe

Total time

0

Auxiliary Fuel Tank

Yes

Crash-Resistant Fuel System

Yes

Avionics

Radar Altimeter

Yes

ELT

Yes

Airborne Weather Radar

Yes

Traffic Avoidance System

Yes

Enhanced Offshore Avionic Package

Offshore FMS Automatic Oil Rig Approach; HTAWS Offshore Mode; Helicopter Data Transmission (FP)

• ADELT with GPS NAV interface and GPS integrated In lieu of standard ELT
• Digital Map
• Radio HF 9031 – Provision
• Radio VHF/FM-H Maritime NAT NPX 138 – (FP+RP)
• Weather Radar Telephonics RDR-1600 – (FP+RP)
• SATCOM Flightcell DZMx with integrated Wifi module (FP+RP)
• 2nd radar Altimeter
• 2nd GPS
• One solid state Cockpit and Voice Enhanced Airborne Flight Recorder (EAFR) with provision for video recording capability and ULB
• TCAS II (Rockwell Collins) integrated with ATC Transponder Mode S with ADS-B out capability
• Health and Usage Monitoring System (HUMS)
• Flight Data Monitoring (FDM)
• Helicopter Terrain Avoidance & Warning System (HTAWS)
• RNP Approach with LPV/LP minima
• “RNP 0.3 navigation in all phase of flight” FMS capability

Equipment

Dual Controls

Yes

A/C

Yes

DC / AC primary power generation system

28 V DC / 115 V AC 400 Hz provided by three independent 25kVA Starter Generators (one for each engine and for APU)

• Air Conditioning System
• Carpet on the baggage compartment Floor
• Camera in the Cockpit (EAFR)
• Integrated Emergency Floats and Life Rafts (2×21) – (FP+RP)
• Life Rafts 3rd Handle
• Helicopter Emergency Exit Light System (HEELS)
• Strobe Lights on the Winglets – In lieu of 2nd Anti-Collision Light
• Filler port for controlled pressure refuelling/defuelling system (RH) & second filler port for gravity refuelling
• Harsh Maritime Environments Protection
• Swivelling Light for Rescue Hoist (belly mounted) – Provision
• High Intensity Strobe Light
• Cockpit Cabin separation Wall (soft type)
• Electrical Emergency Exit Markings
• ELA and life jackets removals
• Cockpit tinted upper Window
• Two Starter Generator Converter Units
• One Generator Control Unit (GCU) for APU
• Three Transformer Rectifier Units (TRU)
• Rescue hoist (Goodrich) – Dual type – Provision – DELTA PRICE In lieu of the kit “Rescue hoist (Goodrich) – Single type – Provision”
• One battery (17 Ah)
• 28 V DC External Power Receptacle
• 115 V AC External Power Receptacle
• DC Power Distribution System & AC Power Distribution System
• Solid-State Secondary DC Power Distribution System
• Display based Virtual Circuit Breaker Panel
• Reduced Overhead Circuit Breaker Panel
• Cockpit compartment utility finishing Interior
• Two cockpit panel sun-glare Shields
• Pilot and Co-pilot crashworthy adjustable Seats (with inertial reels and separate 5 points safety belts)
• Pilot and Co-pilot Headsets
• 28V DC cockpit/cabin power Outlet (interseat console)
• Interseat console extension with multipurpose pocket (if compatible with console panels layout)
• Baggage compartment utility finishing Interior (carbon-fibre and soft liner)
• Baggage smoke Sensor
• Baggage Compartment Net
• Two (2) “Under Floor” fuel tanks (190 kg – 419lb/238 l – 63 US Gallons) – Removable
• Two steps for cockpit and cabin access (on both fuselage side)
• Main rotor hub Beanie
• Rotor Brake System
• Provision for main rotor Blade Tracking (magnetic pick-up)
• 2nd anti-collision Light
• Overhead cockpit windows sun Shades
• First aid Kit (EU OPS 3 compliant)
• Two fire Extinguishers (cockpit and cabin – EU OPS 3 compliant)
• Pilot and Co-pilot headset Hooks (overhead)
• Rotorcraft Flight Manual and Quick Reference Handbook
• Two portable Flashlights (Cockpit)
• Nose Landing Gear bay Protection
• Protection for baggage compartment Edge
• Baggage compartment net provision
• Back-up battery for ISIS
• Maintenance Step (RH side)
• Two cockpit Passive Vibration Absorbers
• Camera on the Tail Fin
• Maritime Protection
• Altitude Extension 15,000 ft HD

Interior

Configuration

Offshore

Soundproofing

Yes

Description

We offer the Aircraft

“As-is”, Ex-Works North America
