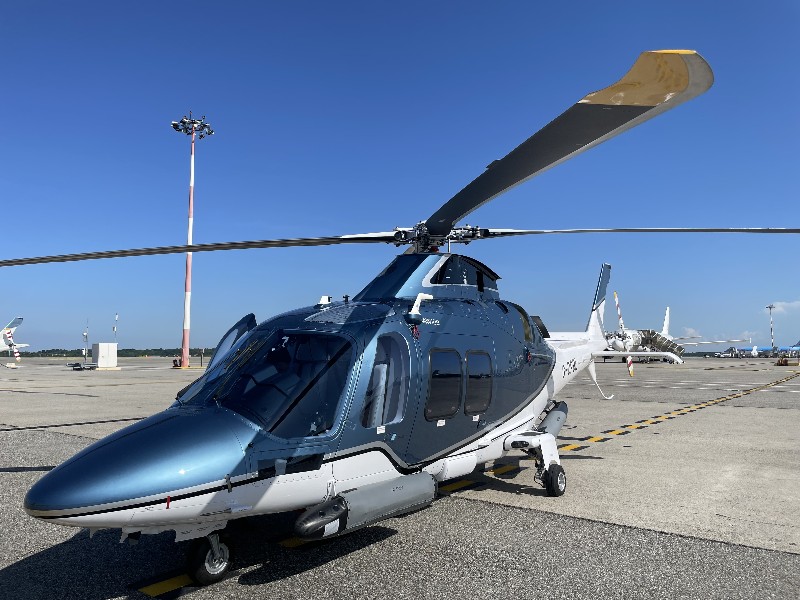

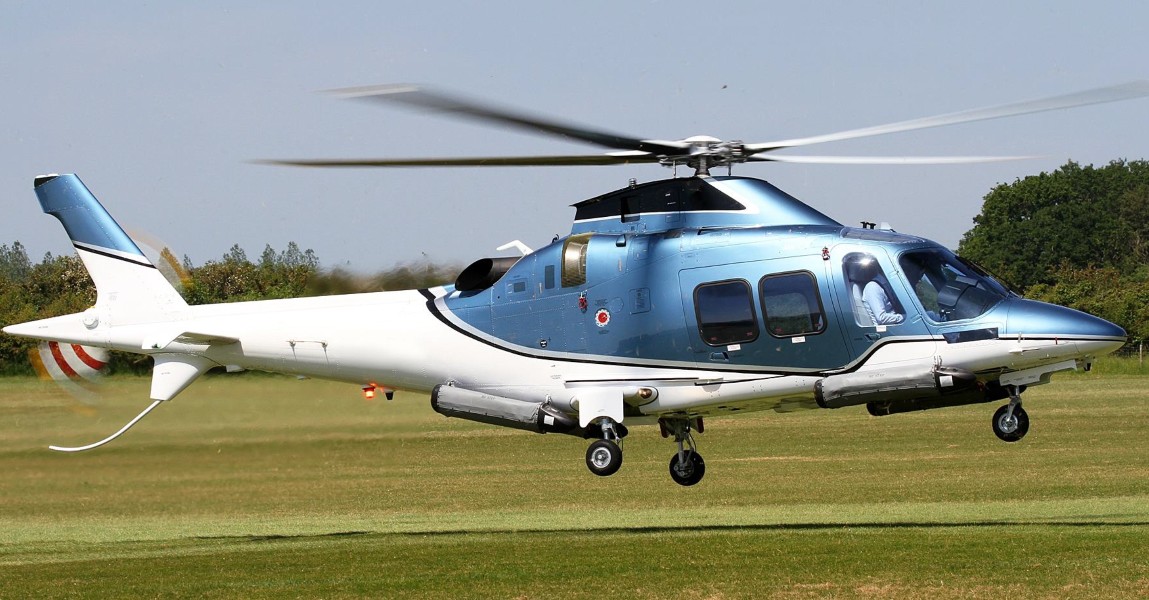

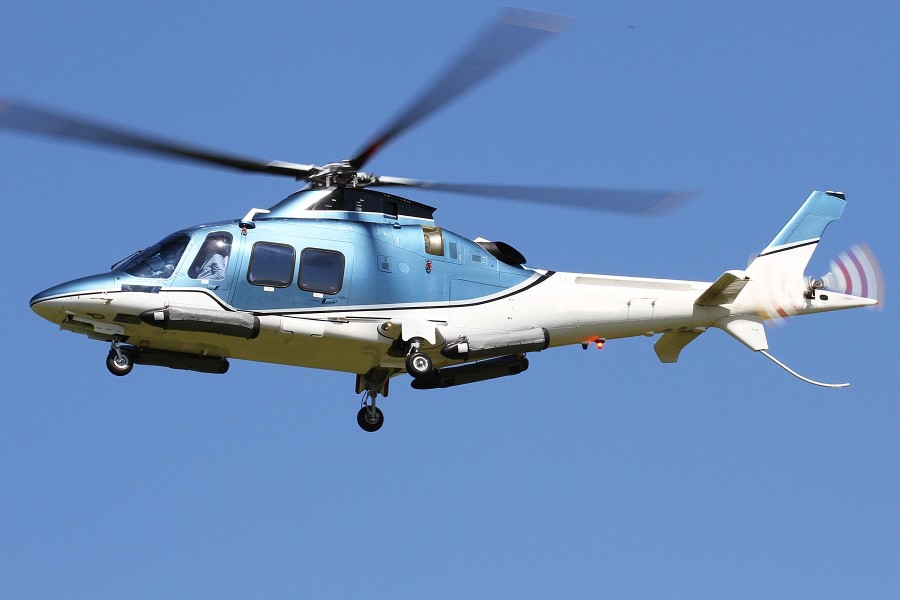

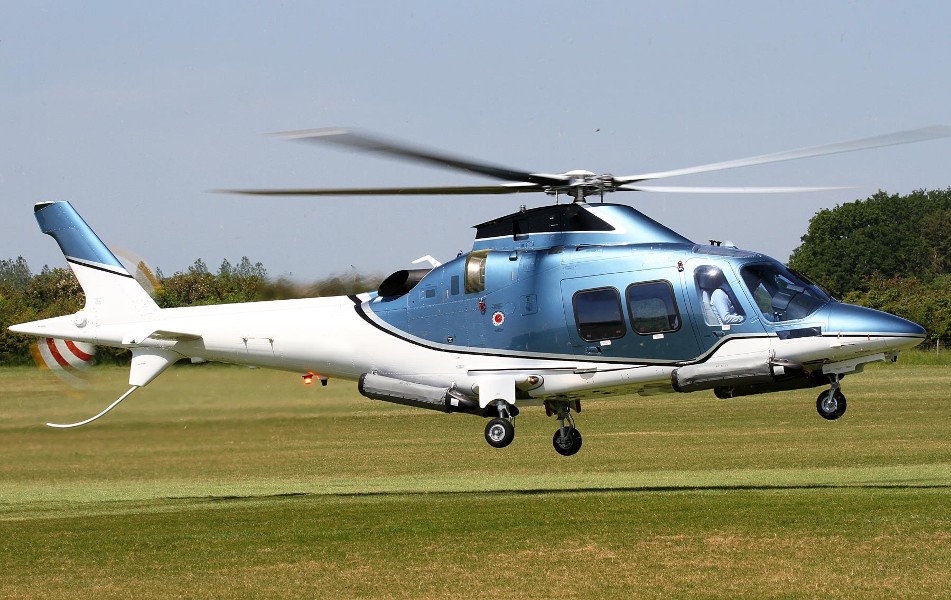

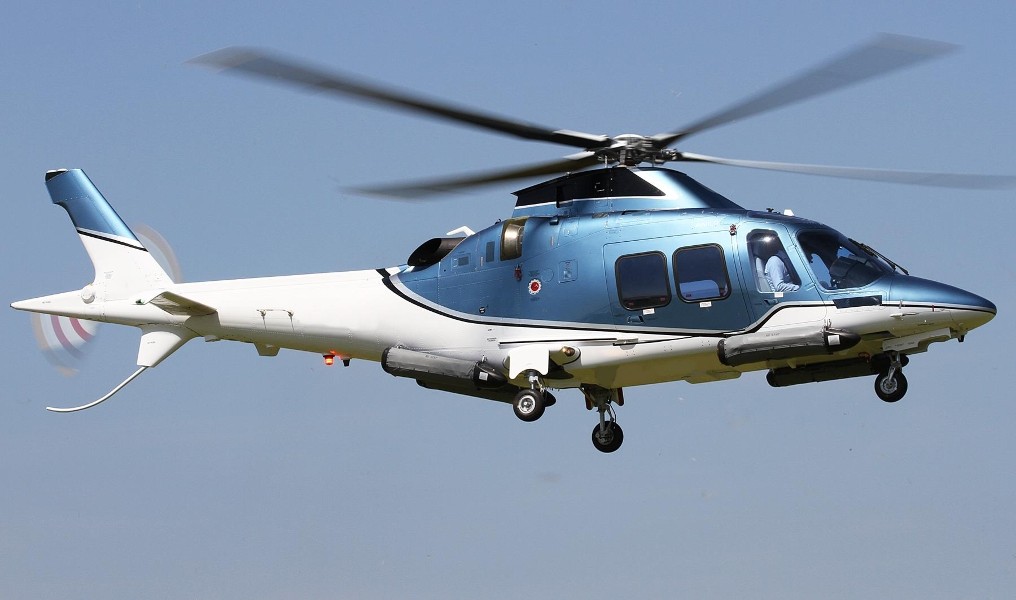

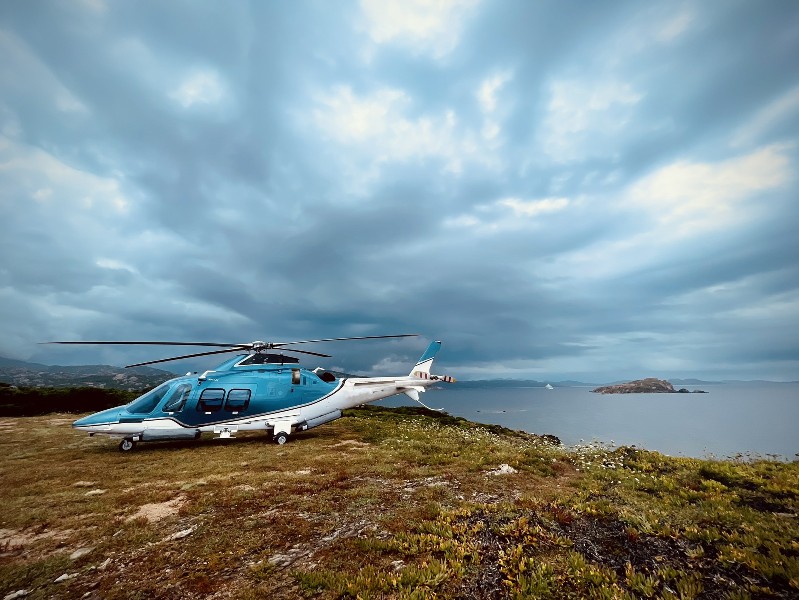

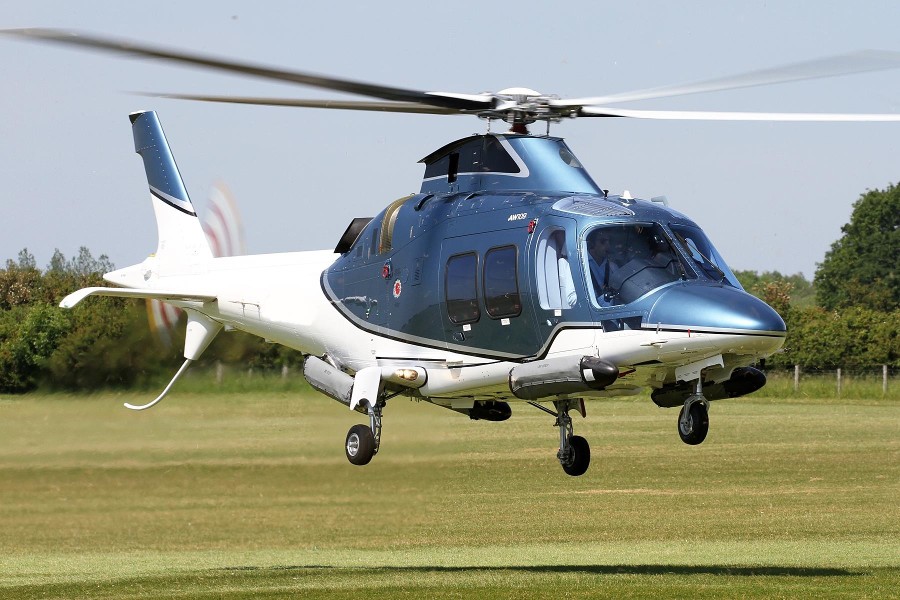

2023 Leonardo AW109SP Grandnew

General

Sale Status

For Sale

Make/Model

AGUSTA AW109SP

Registration #

LV-KML

Serial #

22446

Total time

183

Engine 1 Time

183 SNEW

Engine 2 Time

171 SNEW

Condition

Used

Flight Rules

IFR

Airframe

Manufacture Year

2023

Total Landings

370

Configuration

VIP

Cabin Seats

Six seats

Engine

Serial Number

PCE-BH1082

Serial Number

PCE-BH1094

Total time

171

• ENGINES 2 x PW207C
• Engine #1
• Engine #2

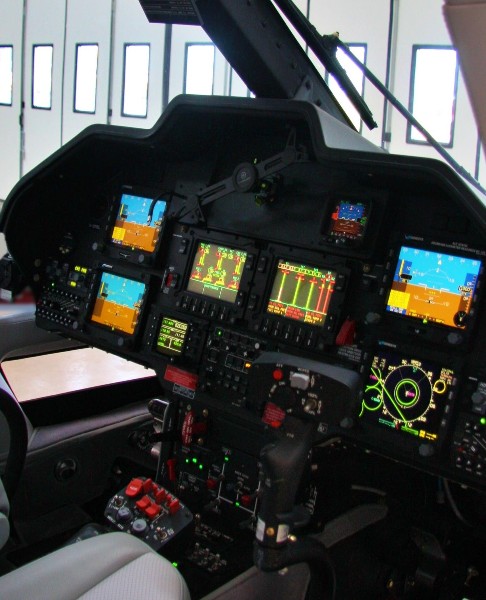

Avionics

• Single Pilot Dual Controls IFR Avionic Package
• Dual pilot flight/navigation EFIS (2 displays) with embedded FMS, Synthetic Vision (SVS), HTAWS (Helicopter Terrain Awareness and Warning System), slip indicator and Remote Bug Panel (RBP)
• Co-pilot flight/navigation EFIS (2 displays) with embedded FMS, SVS, HTAWS, slip indicator and RBP
• Reversionary Control Panel (RCP)
• EFIS pilot/co-pilot navigation synchronization switch (FMS data)
• Electronic Standby Instrument system (ESIS)
• Second Radio Management System (RMS) RTU-4210 Collins
• Second VHF/AM VHF-40000E Collins
• VOR/ILS/ADF NAV-4000 Collins
• DME DME-4000 Collins
• Radio Altimeter ALT-4000 Collins
• Second Attitude Heading Reference System (AHRS)
• Second Air Data Unit (ADU)
• Pilot GPS/SBAS Chelton interfaced to EFIS/FMS
• Co-pilot GPS/SBAS Chelton interfaced to EFIS/FMS
• Digital Audio Control System (DACS) COBHAM additional cockpit panel
• 4-axis dual duplex digital AFCS with integrated Flight Director
• Second electronic clock
• Second magnetic compass indicator
• ELT C406-N HM Artex (with Navigation Interface Module embedded)
• Dual controls
• Traffic Advisory System TAS-620 Avydine (presented on EFIS)
• Weather radar RDR 2000 Bendix/King (presented on EFIS)
• ADS-B Out Capable Transponder TDR-94 Collins (in lieu of standard transponder)
• iPad mount with USB charger in cockpit

• 213 US gal crash-resistant fuel system (in lieu of 152 USG)
• 24 VDC 33Ah nickel-cadmium battery (20 cells in lieu of 19 cells)
• 2.3m baggage compartment extension
• High-intensity strobe lights on horizontal stabilizer
• USB charger in the cabin
• Electrically operated passenger step (LH)
• Emergency floats fixed provisions
• Emergency floats with life rafts embedded
• Mooring plates
• Engine Washing kit provisions

Interior

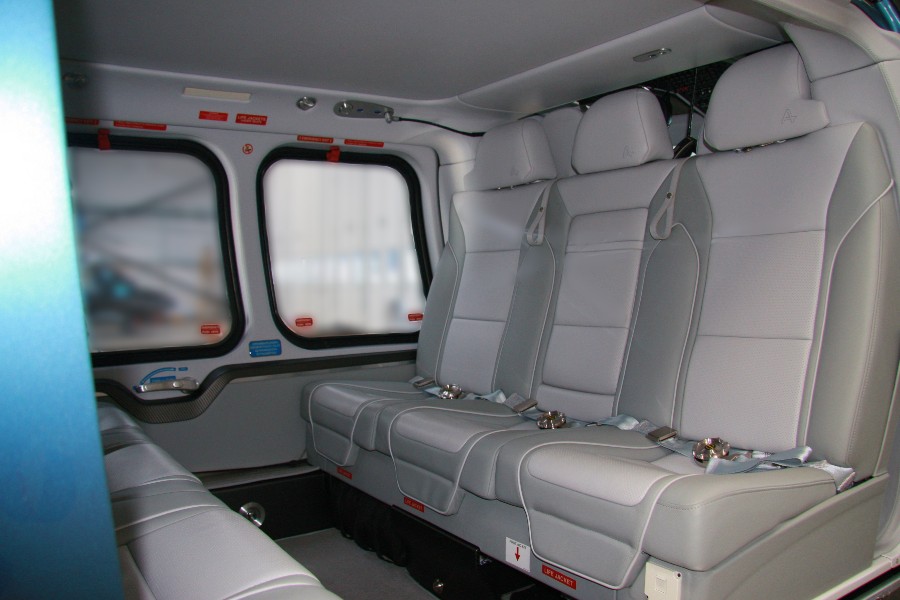

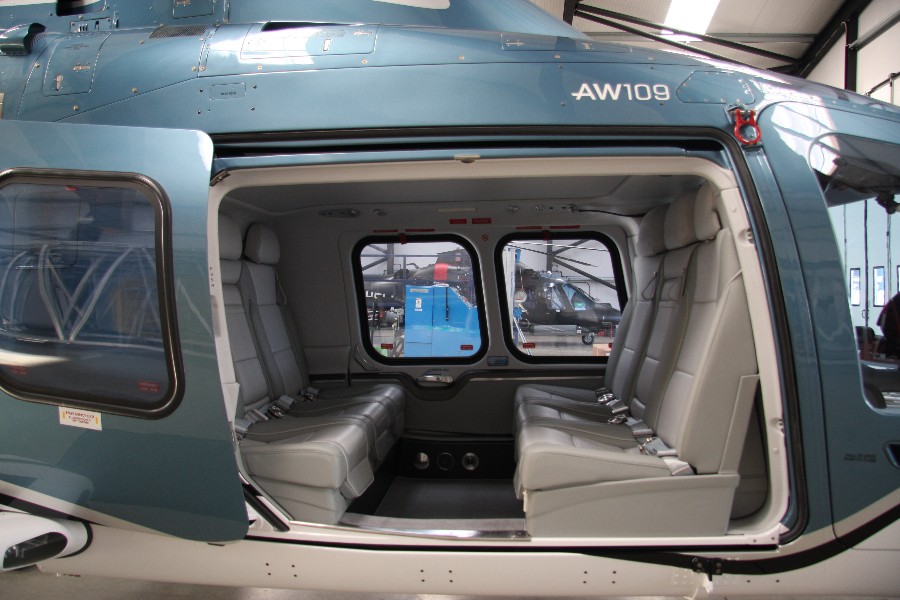

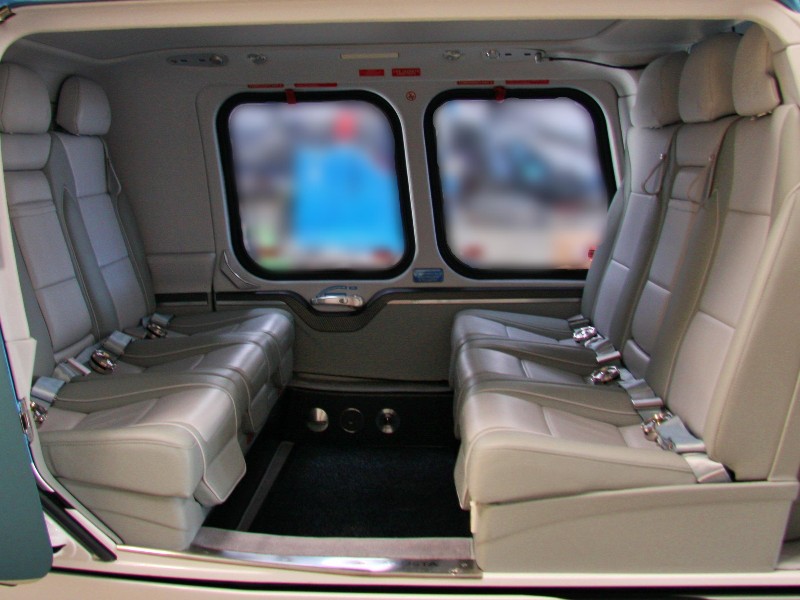

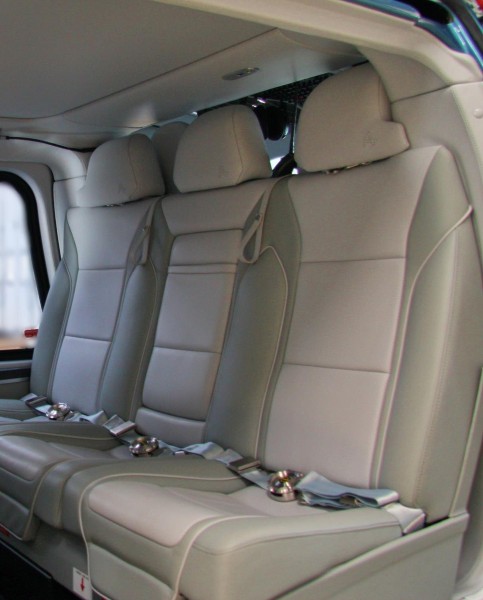

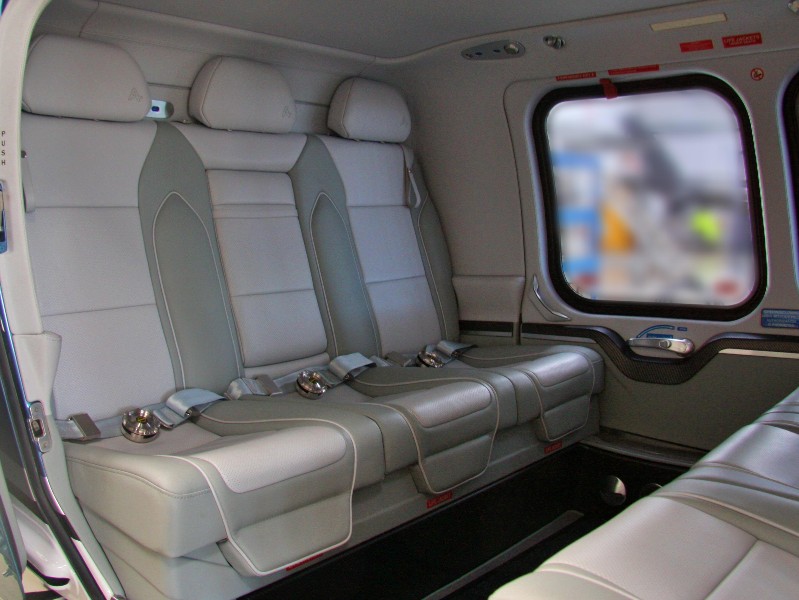

• VIP Corporate Interior -Six Seats

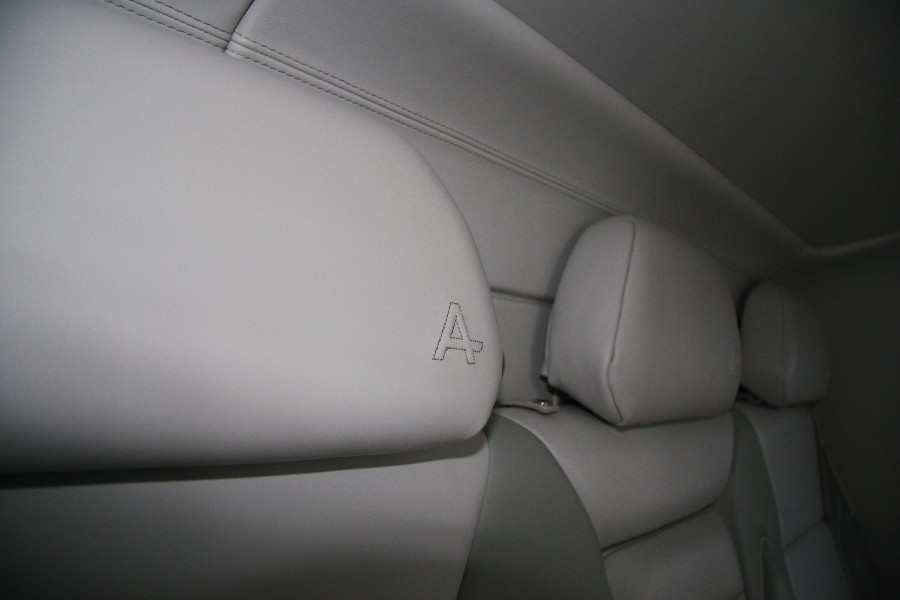

• All seats crash-resistant covered with leather or fabric/leather

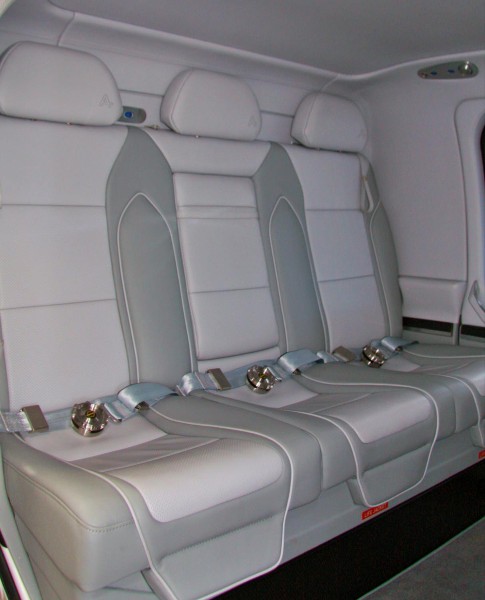

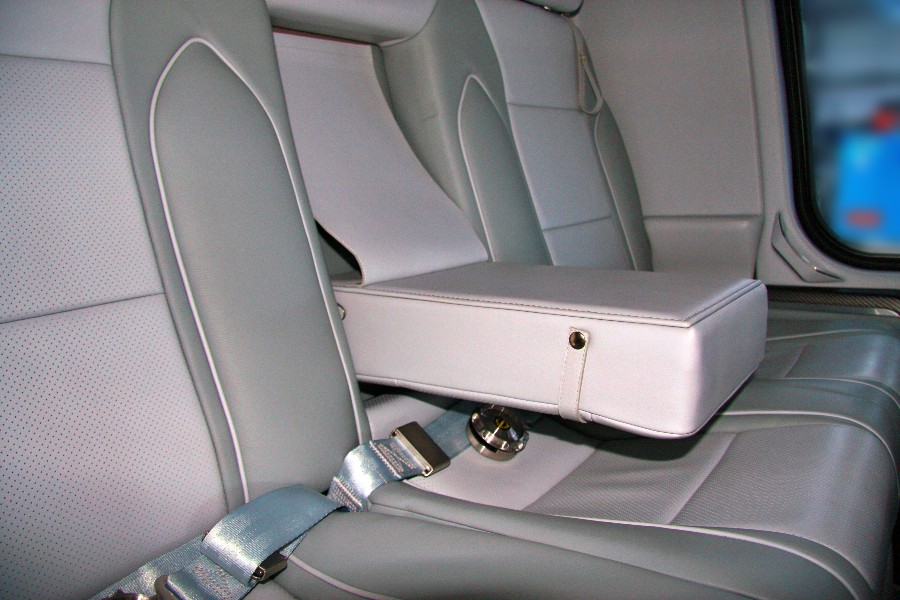

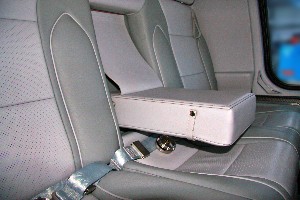

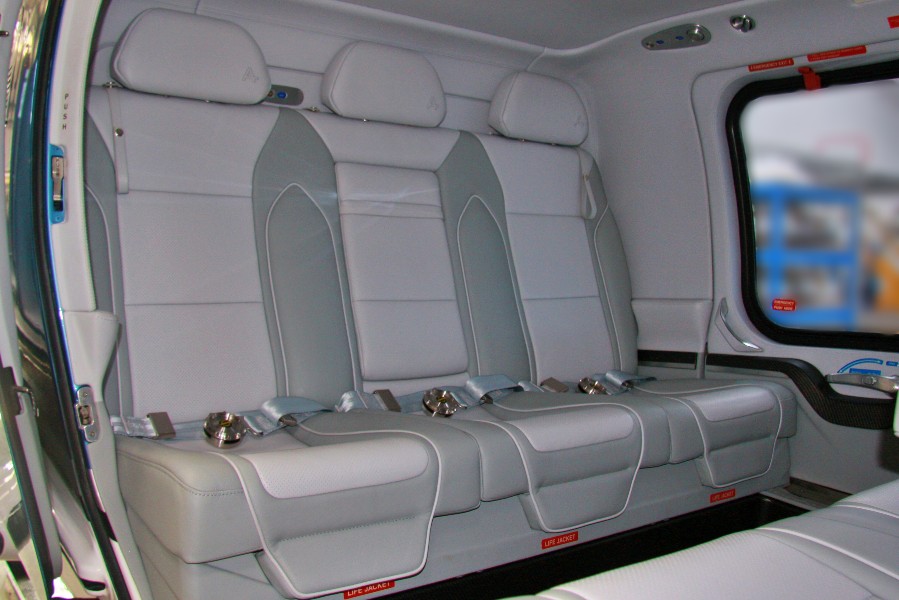

• Three fwd facing (aft bench) with foldable armrest
• Three aft facing seats (central bench) with see through modification and foldable armrest
• 4-point shoulder harness with interial reels and safety belts for all passenger seats

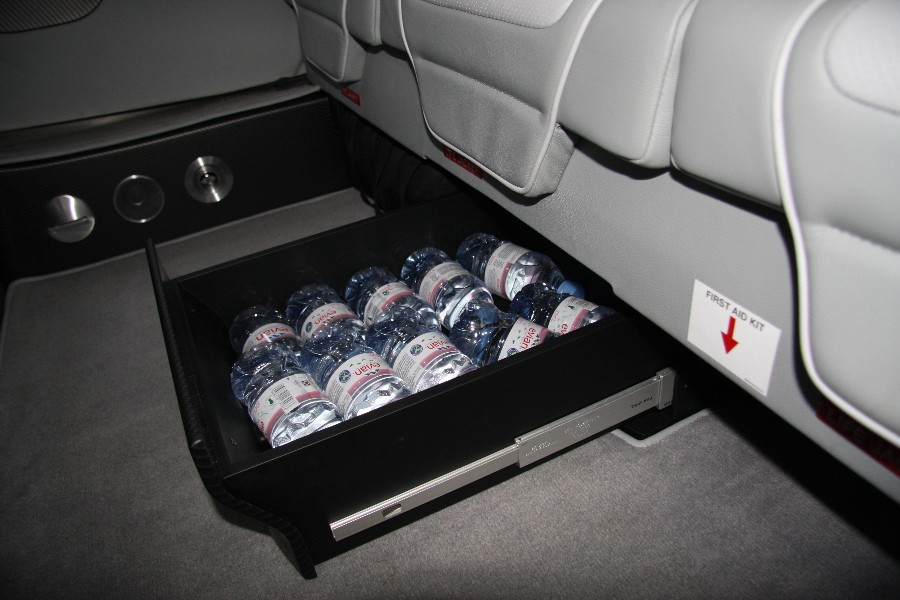

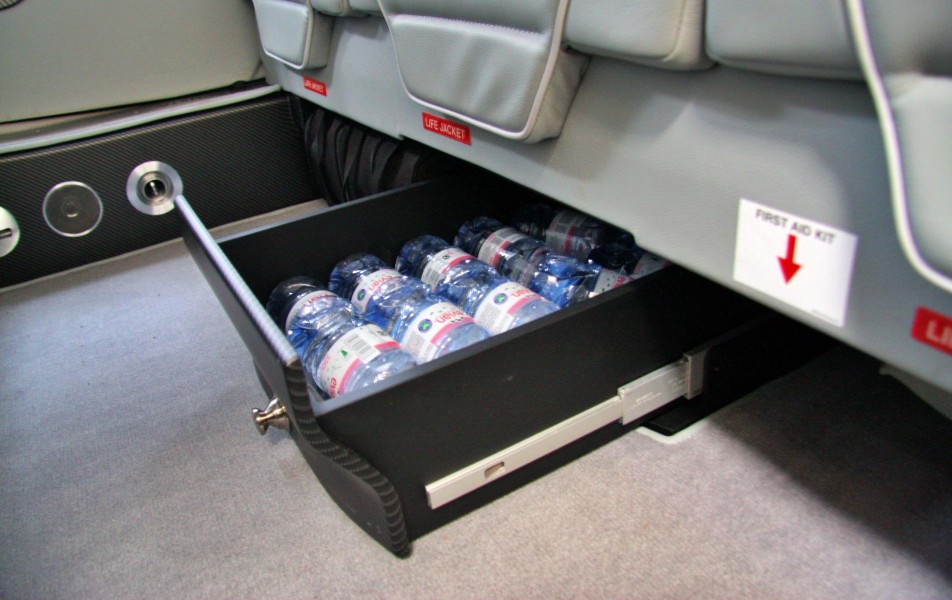

• Single central drawer
• Super silent soundproofing
• Liners leather/leatherette covered
• Cabin double layer acrylic windows
• Decoration trim with metal inserts
• Intercommunication system for passengers
• Headset Bose ANR type (qty six)
• Cabin loudspeakers (qty two)
• Reading lights, emergency lights, floor courtesy lights
• Passenger hooks (qty four)
• Upper and lower air vents
• Floor carpeting with carpeting protection
• Seat covers
• Leather headset straps in cabin

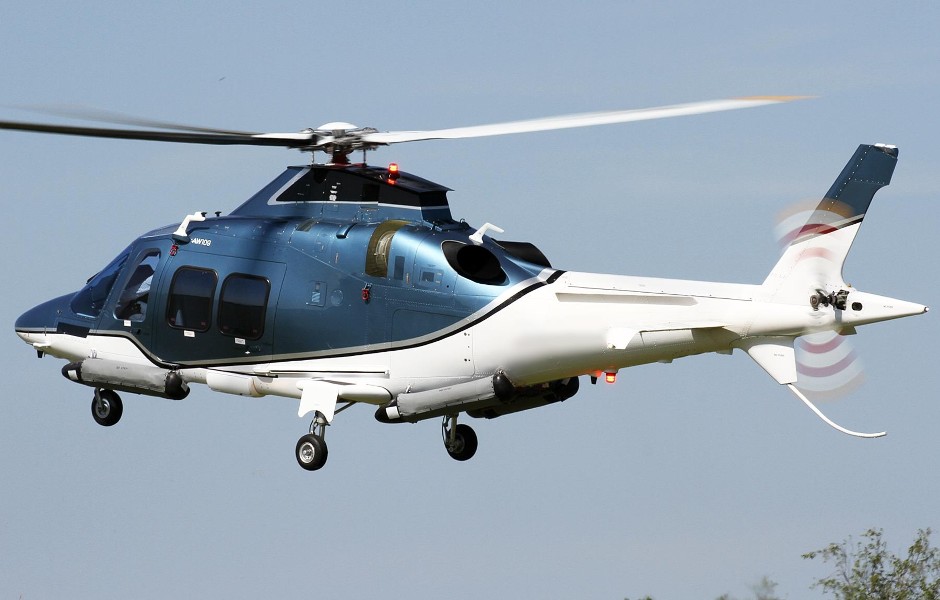

Finishing in blue and white customisedpaint scheme
