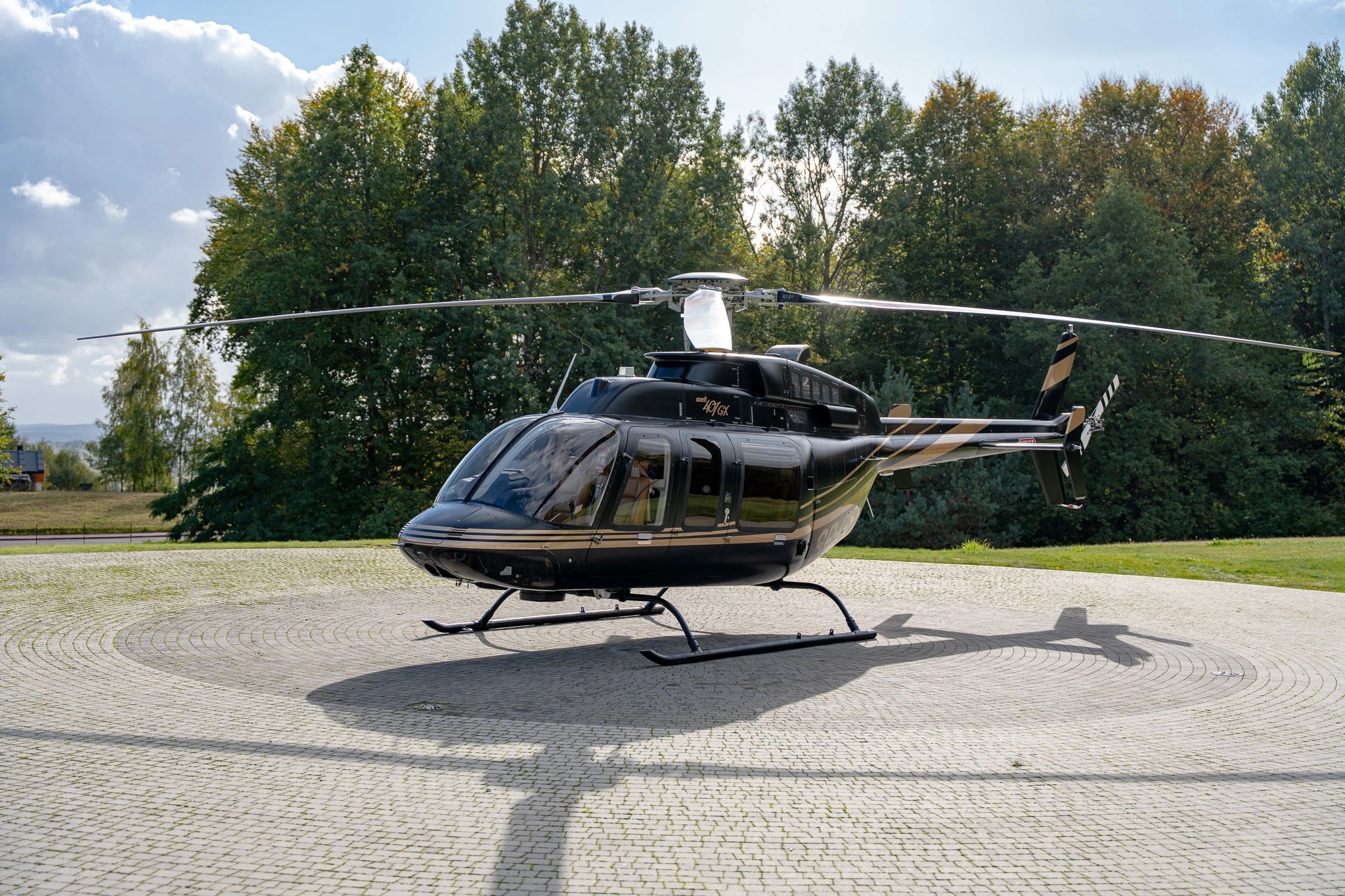

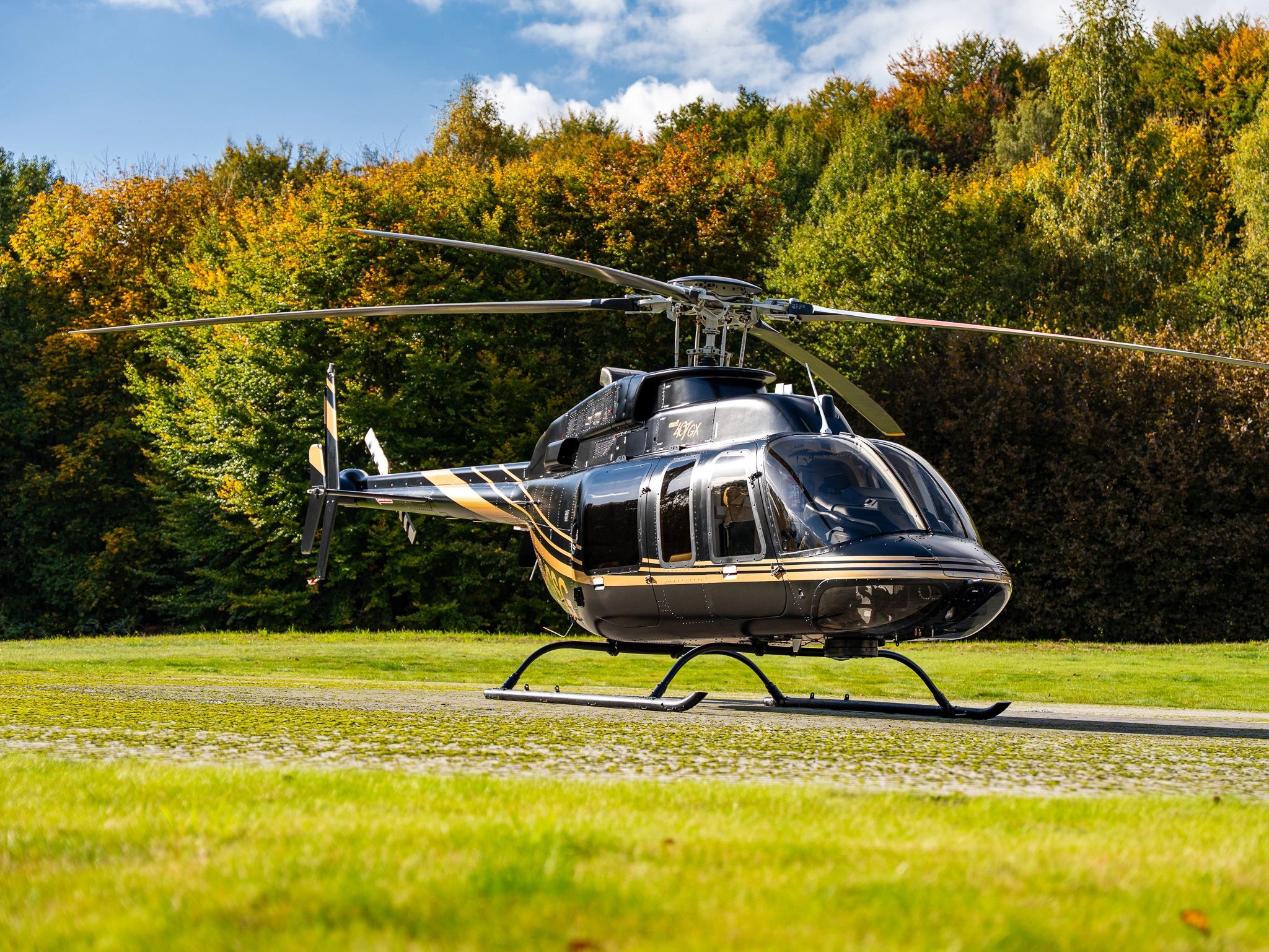

2014 Bell 407GX (S/N 54474)

General

S/N

54474

Airframe

Total time

1,992

Avionics

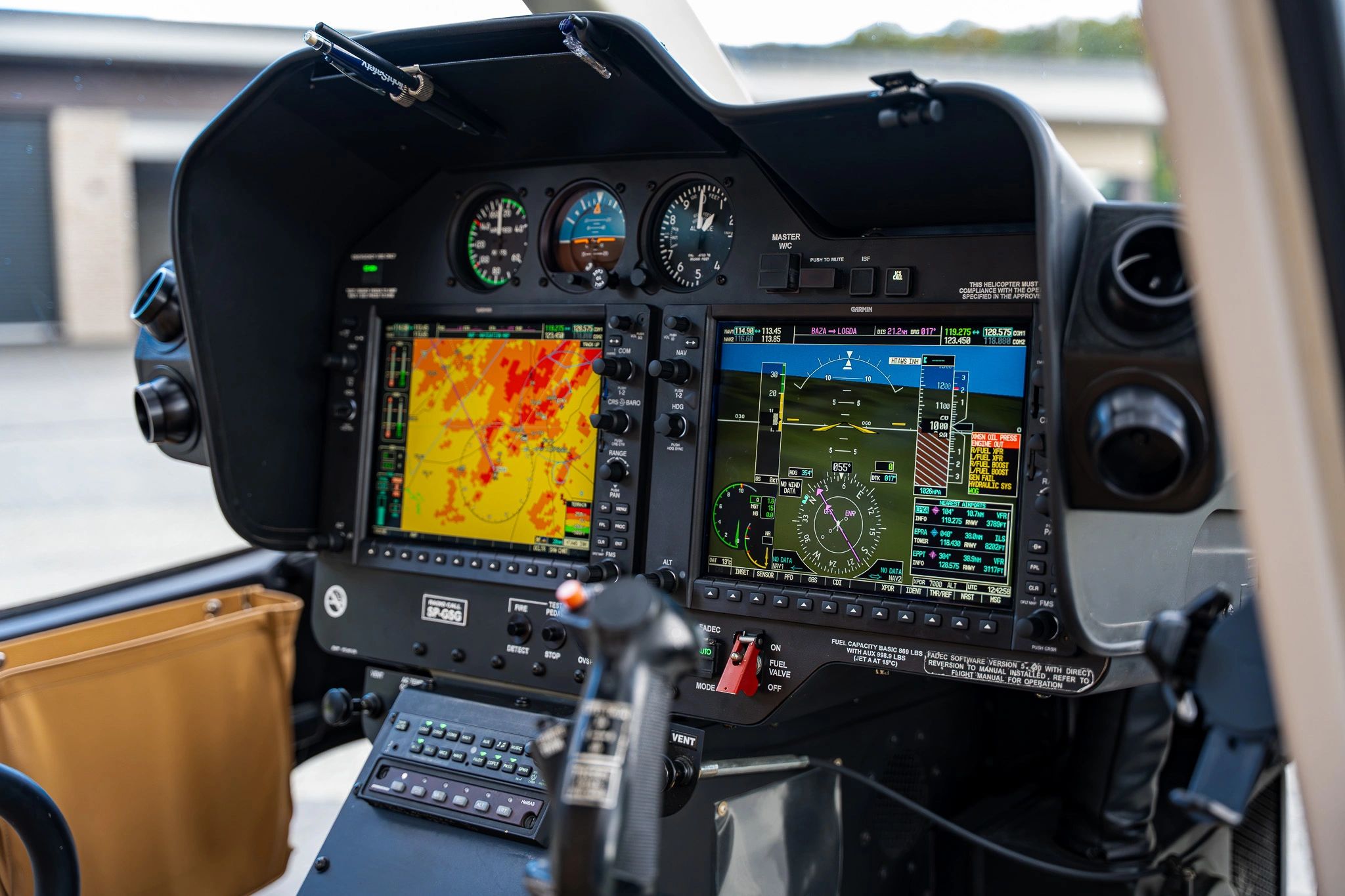

• Garmin G1000H Integrated Glass Cockpit
• HTAWS (Helicopter Terrain Awareness & Warning System)
• Cobham HeliSAS Autopilot & Stability Augmentation
• Garmin GTS 800 Traffic Avoidance System (TAS)
• FreeFlight RA-4500 Radar Altimeter
• Artex C406-NHM 406 MHz ELT with PGM Adaptor
• ADS-B Out Transponder
• Tail Rotor Camera
• 5 Place Aft ICS with LEMO Jacks
• Cabin ICS Call with LED Light
• Crew Headset Jacks Wired for LEMO Powered Bose Headsets
• Expanded Aft Avionics Equipment Shelf
• Tail Boom Antenna Mount Kit
• Dual USB Charging Port
• Stormscope Lightning Detection
• Enhanced Vision System (EVS)

Equipment

• Dual Controls
• Rotor Brake
• Inlet Barrier Filter with Access Door
• Air Comm Air Conditioning with Dual Forward Evaporators
• Air Comm Bleed Air Heater with Windshield & Chin Bubble
• Defrost
• Increased Capacity Starter Generator & 28 Ah Battery
• Auxiliary Fuel Tank Provisions (19 US Gal)
• 5,250 lb Increased Internal Gross Weight Kit
• Engine Fire Detection System
• Non-Halon Handheld Fire Extinguisher (2026)
• NightScanner
• Whelen Strobes & LED Position Lights
• LED Interior & Exterior Lighting
• Snow Baffles
• Jettisonable Crew Doors
• Tail Rotor Pedal Safety Kit

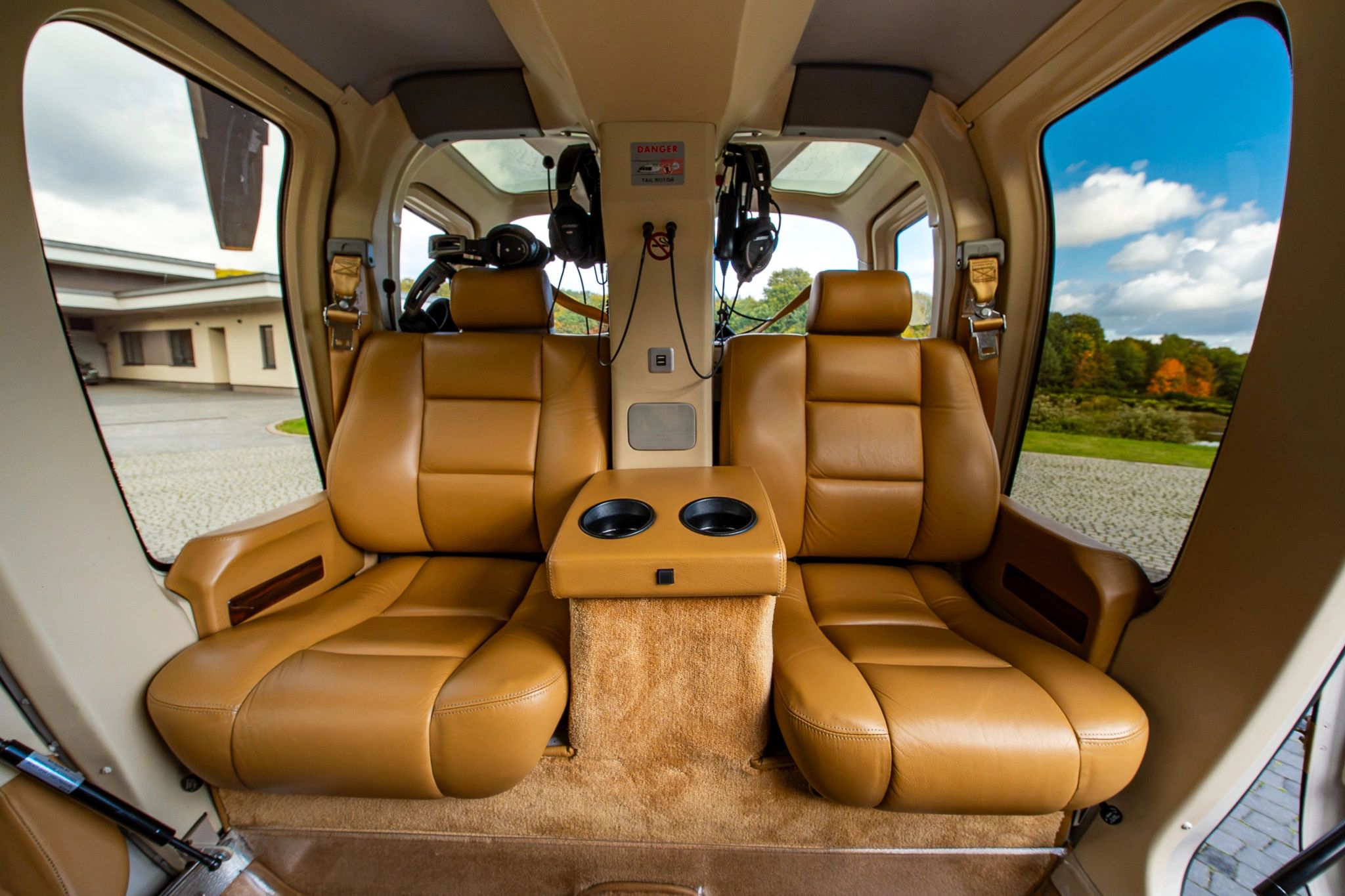

Interior

• Corporate Interior Trim & Soundproofing
• Tan Leather Corporate Passenger & Crew Seats
• Centre Console with Cup Holders & Armrests
• Wood Grain Door Panel Trim
• Headliner with Air Conditioning Ducting
• Leather Centre Map Pocket & Flight Manual Pocket
• Right Rear Passenger Photo Window (Medium Tint)
• Mid Cabin Windows (Medium Tint)
• Cockpit Storage Kit
• Cockpit & Cabin Floor Protector Kit

Exterior

• Black with Gold Pinstripe Livery
• High Visibility Main Rotor Blades
• Low Skid Gear, Crosstubes Painted to Match
• Wire Strike Protection Removed, Paint Touched Up
• Automatic Door Openers for Cabin, Baggage & Crew Doors
• Pre-Flight Kit with Step Handles & Folding Maintenance Steps
• Locking Fuel Cap & Fuel Filler Protector
• Baggage Compartment Edge & Floor Protectors
• Spacemaker with Cover

Maintenance

• Check Next Due
• 12 Month Inspection 4th March 2027
• 300 Hour Progressive Inspection Events 2,218 Hrs
• 1,200 Hour Inspection 2,331 Hrs
• 600 Hour Inspection 2,518 Hrs
• 24 Month Inspection 4th March 2028
• 60 Month Drive System Inspections 6th June 2028
• 5,000 Hour / 60 Month Inspection 4th March 2031

• Check Next Due
• Transponder & Altimeter Checks 11th February 2027

• Component Limit Current Time
• Main Rotor Hub, Mast, Swashplate, Driveshaft & HMU 2,500 Hrs 1,992 Hrs TSN
• Starter Generator 1,000 Hrs O/H 204 Hrs TSO
• Tail Rotor Hub 2,500 Hrs O/H 1,496 Hrs TSN
• Freewheel 3,000 Hrs 1,992 Hrs TSN
• Engine Gas Producer & Power Turbine 2,000 Hrs O/H 434 Hrs TSO
• Rotor Brake Calipers 3,600 Hrs 1,992 Hrs TSN
• Main Transmission & Tail Rotor Gearbox 5,000 Hrs 1,992 Hrs TSN
• Main Rotor Grips & Pylon Beams 5,000 Hrs 1,992 Hrs TSN
