How much does a used Jodel D-11 cost?

Name: Jodel D-11
Brand: Jodel

PLANEFILE

JodelExperimental & kit · Fixed-wing · France

D-11

Seats: 2 2
Power: 95 hp71 kW
Cruise: 105 kt195 km/h
US register: 6 aircraft6 aircraft

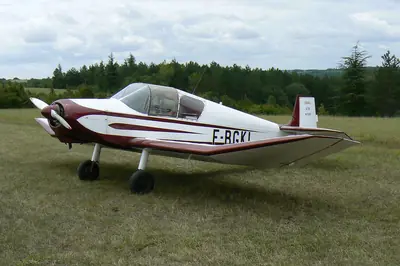

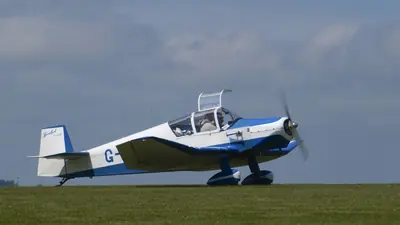

Jodel D-11 — Photo: Stavros1 at English Wikipedia · Public domainPhoto: Ian Kirk from Broadstone, Dorset, UK · CC BY 2.0Photo: Felix Heine from France · CC BY-SA 2.0

About the D-11

The Jodel D11 is a fixed-wing, two-seat monoplane designed in response to a government request for a low-wing aircraft suitable for flying clubs. It utilizes a conventional tailwheel configuration with a fixed, spatted undercarriage and accommodates a pilot and passenger side-by-side inside an all-wood construction utilizing a single piece box-spar.

Developed by French designers who combined elements from two earlier projects, the prototype achieved its maiden flight in April 1950. Thousands of examples have since been built and flown through licence-building by various European and international manufacturers, as well as through home-built amateur construction using provided plans.

Engines fitted

6 aircraft

Engine	Power	Aircraft
Continental C85	85 hp	2
Continental A&C75 series	75 hp	1
Continental A&C65 series	65 hp	1
Lycoming O-290	140 hp	1
Continental O-200	100 hp	1

This page covers the Jodel D-11: the same aircraft under other designations.

Specifications

D.117 with Continental C90-14F engine · Continental C90-14F

Dimensions

Length: 21 ft 4 in 6.50 m6.50 m 21 ft 4 in
Wingspan: 27 ft 0 in 8.22 m8.22 m 27 ft 0 in
Wing area: 137 sq ft 12.7 m²12.7 m² 137 sq ft

Weights

Empty weight: 761 lb 345 kg345 kg 761 lb
Max take-off weight: 1,323 lb 600 kg600 kg 1,323 lb

Performance

Cruise speed: 105 kt 195 km/h195 km/h 105 kt
Max speed: 112 kt 207 km/h207 km/h 112 kt
Stall speed: 27 kt 50 km/h50 km/h 27 kt
Range: 632 nm 1,170 km1,170 km 632 nm
Service ceiling: 16,400 ft 5,000 m5,000 m 16,400 ft
Rate of climb: 790 ft/min 4.0 m/s4.0 m/s 790 ft/min

Powerplant

Engine: Continental C90-14F
Engine power: 95 hp 71 kW71 kW 95 hp

Capacity

Seats: 2

ICAO type designator: D11
Manufacturer: Jodel
Country: France
Number built: 3,000
On the US register: 6
Registered in: United Kingdom, New Zealand, Australia, United States, Canada
Official website: avionsjodel.com

Improve this page

Add your photos Suggest a correction

D-11 prices

Asking prices of those for sale now, US dollars

Asking prices for the 4 Jodel D-11 aircraft for sale with a price run from $10,633 to $50,368, with a median of $25,600. Half ask between $15,400 and $35,800.

{# the label links to these aircraft for sale, built in that span. On the label and not the count: the bands count every aircraft on the market (on_market) while the grid shows only those with a photo (live), so the count is not a promise of how many cards appear. A band cached before year_min existed renders as plain text rather than a link to an unfiltered list. #}

By year built
Built	For sale	Median asking	Range	Median hours
1950s	1	$10,600	$10,633	–
1960s	1	$35,800	$35,818	3,000
1990s	1	$15,400	$15,449	700
2010s	1	$50,400	$50,368	100

D-11 running costs

$171 an hour

Hours a year Aircraft value (USD)

A year
	Low	Typical	High
Fuel	$2,945	$3,772	$4,390
Oil	$68	$85	$110
Engine overhaul reserve	$2,167	$2,667	$4,833
Annual inspection and maintenance	$2,500	$3,500	$4,500
Hangar	$3,000	$6,300	$9,600
Insurance	$530	$732	$933

Total	$11,210	$17,056	$24,366
Per hour	$112	$171	$244
